STANDING FRAME
L I F T E R ™
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lifter and is the answer not in the manual?

Questions and answers

Related Manuals for Akces-Med Lifter

Summary of Contents for Akces-Med Lifter

  • Page 1 STANDING FRAME L I F T E R ™ USER MANUAL...
  • Page 2 Akces-Med employee or at specialized medical store! AKCES-MED. Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning. Product marked with the CE sign is Class I medical device, of...

  • Page 3: Table Of Contents

    2. Indications for use........................5 3. General characteristic........................7 3.1 Standard equipment......................7 3.2 Accessories..........................8 4. Size table............................9 5. How to use lifter standing frame.....................10 5.1 Height adjustment.......................10 5.2 Tray............................11 5.2.1 Adjusting the height of the tray.................11 5.2.2 Adjusting the tilt of the tray..................11 5.2.3 Adjusting the depth of the tray.................12...
  • Page 4 This solution is highly recommended for users with upper limbs paresis. LIFTER™’s seat also serves as a pelvic support that keeps the user in the proper position and secures him in the device. Remember to read this user manual carefully. You will find not only useful information but also guidelines regarding safe and effective use of the product.

  • Page 5: The Purpose Of User Manual

    User manual should be kept in easily accessible place. It is designed for people who look after the disabled , and for both doctors as well as physiotherapists who operate the device. Before using the LIFTER ™ standing frame, user is obliged to familiarize himself/herself with user manual.
  • Page 6 ™ Contraindications: While standing upright, the user who is in a standing position should be closely monitored. The therapy should be discontinued in case of such side effects as: turning pale, sweating or fainting, joint strain and the resulting deformities of the body. Further proceeding should be consulted with the medical specialist or a physiotherapist who prescribed the treatment.

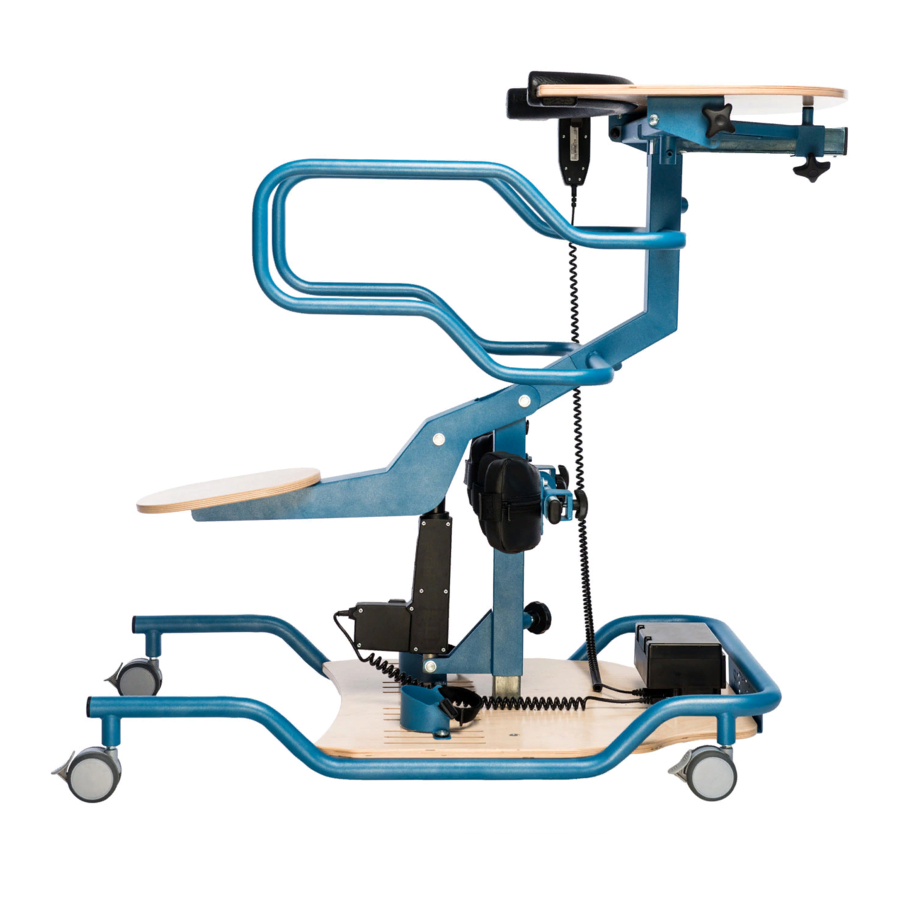

  • Page 7: General Characteristic

    ™ 3. GENERAL CHARACTERISTICS OF STANDING FRAME 3.1 STANDARD EQUIPMENT 1. Footboard with wheels 2. Footplate with a sandals 3. Control unit with battery 4. Electric actuator 5. Knee suport with pads 6. Lifting mechanism with seat, 7. Stander’s handle 8.

  • Page 8: Accessories

    ™ 3.2 ACCESSORIES LTR_002 LTR_015 LTR_146 LTR_015 LTR_020 TANGO Wheel with brake (75 Patient lift belt AM-P Hand grip mm/100 mm/125mm) LTR_424 Chest support www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com...

  • Page 9: Size Table

    Note: Approximate values, depending on the product configuration. As a part of our permanent product improvement, Akces-Med reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.

  • Page 10: How To Use Lifter Standing Frame

    Before using the LIFTER standing frame, adjust it to the user. 5.1 HEIGHT ADJUSTMENT The height of the standing frame LIFTER is adjusted in steps. To adjust the height, unscrew the knob, set the chosen height of the standing frame – inside there is a pin that should click into one of the holes on the column.

  • Page 11: Tray

    ™ 5.2. TRAY 5.2.1. ADJUSTING THE HEIGHT OF THE TRAY The height of the tray is adjusted in steps. To adjust the height of the tray, unscrew the knob, set the chosen height of the tray – inside there is a pin that should click into one of the holes on the column.

  • Page 12: Adjusting The Depth Of The Tray

    ™ 5.2.3 ADJUSTING THE DEPTH OF THE TRAY 5.3 KNEE SUPPORTS 5.3.1 ADJUSTING THE WIDTH OF THE KNEE SUPPORTS 5.3.2 ADJUSTING THE HEIGHT OF THE KNEE SUPPORTS www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com...

  • Page 13: Foot Stabilization

    ™ 5.4 FOOT STABILIZATION 5.5 CASTORS WITH BRAKES 5.6 REMOTE CONTROL LOWERING THE LIFTING THE STANDING FRAME STANDING FRAME www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com...

  • Page 14: Parameters Od The Control Unit With Battery

    ™ 5.7. PARAMETERS OF THE CONTROL UNIT WITH BATTERY Parameters of the control unit with battery: The battery charging time is approximately 5 hours. ź The battery capacity is 2.9 Ah / charging current 500 mA (max). ź Depending on the load, a fully charged battery will last approximately ź...

  • Page 15: Charger Parameters

    ™ 5.8. CHARGER PARAMETERS CHARGER PARAMETERS: Power grid: switching power supply 100-240 VAC / 56-60 Hz ź Charging voltage: 27.6 VDC ± 2% ź Charging current 500 mA (max). ź Cable: 2000 mm with straight or angled DC plug (5.5 x 2.5) ź...

  • Page 16: The Stages Of Upright Standing

    ™ 5.9. THE STAGES OF UPRIGHT STANDING www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com...

  • Page 17: The Use Of Standing Frame

    ™ THE USE OF STANDING FRAME LIFTER™ standing frame has to be used with compliance to guidelines included in this user manual. Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using product! 6.1.

  • Page 18: How To Use Lifter

    ™ 6.2 HOW TO USE LIFTER 1. Before use it is necessary to: · Unfold the device; · Place the device on even ground; · Make sure that all parts are serviceable, correctly mounted and stable; · Block brakes;...

  • Page 19: Upright Position

    ™ 6.3 UPRIGHT POSITION CAUTION! The length of time for upright position process is different for each patient. It is recommended to extend this time during the initial period (adaption period for the change of position). Either doctor or physiotherapist can make decision concerning the length of upright position process.
  • Page 20 ™ Incorrect adjustment of the device can lead to side effects such as: fainting, body deformities, overloading joints. It is highly advisable to adjust the device before every use of a standing frame. This adjustment has to be done only by a trained person or therapist. If...

  • Page 21: Safety Rules

    It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of LIFTER™ and its size. It is also essential to familiarize with the guidelines described in user manual before using the device.
  • Page 22 ™ 7. It is forbidden to either go up or down the stairs; it doesn't matter if the patient is placed in the device or not. 8.It is important to engage brake during getting into and getting out the device.

  • Page 23: Terms Of Warranty

    8. TERMS OF WARRANTY 1) AKCES-MED Sp. z. o. o sells products free from manufacturing defects or faults. 2) Manufacturer gives the purchaser 24-month guarantee from the date of purchase. All defects revealed during warranty period will be repaired free of charge.

  • Page 24: Maintenance And Cleaning

    ™ 9. MAINTENANCE AND CLEANING ® The standing frame GENIUS , which is a medical device, should always be kept clean and should be used in accordance with the manufacturer's instructions. The standing frame should be kept in a clean, dry and ventilated room. Maintenance and cleaning must be done at least once a month.
  • Page 25 ™ Remember that upholstery has to be always dry before using! The manufacturer of the standing frame, Akces-MED Sp. z o. o., is not responsible for any damages caused by using unsuitable cleaners. Before using it is necessary to: clean wheels;...
  • Page 26 ™ According to art.22, par. 1 and 2 of the Act about used-up electrical and electronic equipment ( Journal of Laws No. 180 item 1495), placing, discarding and storing up is not allowed with other waste products. Dangerous compounds included in electrical and electronic equipment demonstrate disadvantageous affecting plants, microorganisms and human.
  • Page 27 ™ TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Before each use. General condition of Check:...
  • Page 28 ™ Frequency What should be checked? What should be done? Remarks Once a month. Wheel axles, quick connec- Check: Clean the wheels when dirty. tors (if applicable). if the wheels are rolling and if they are not In case of any damage or defects, ź...

  • Page 29: Labelling

    ™ LABELLING 10.1. Symbole 10.1 SYMBOLS Declaration that the product meets Dry vertically the essential requirements Catalog number Do not chlorinate Serial number Do not iron Please read the manual instructions before Do not dry in a drum dryer...
  • Page 32 MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. +48 17 864 04 70 e-mail: export@akces-med.com BDO: 000031619 Authorised Dealer Date of issue: 01.04.2009 The last update: 20.05.2021 © Sławomir Wroński 2021...
