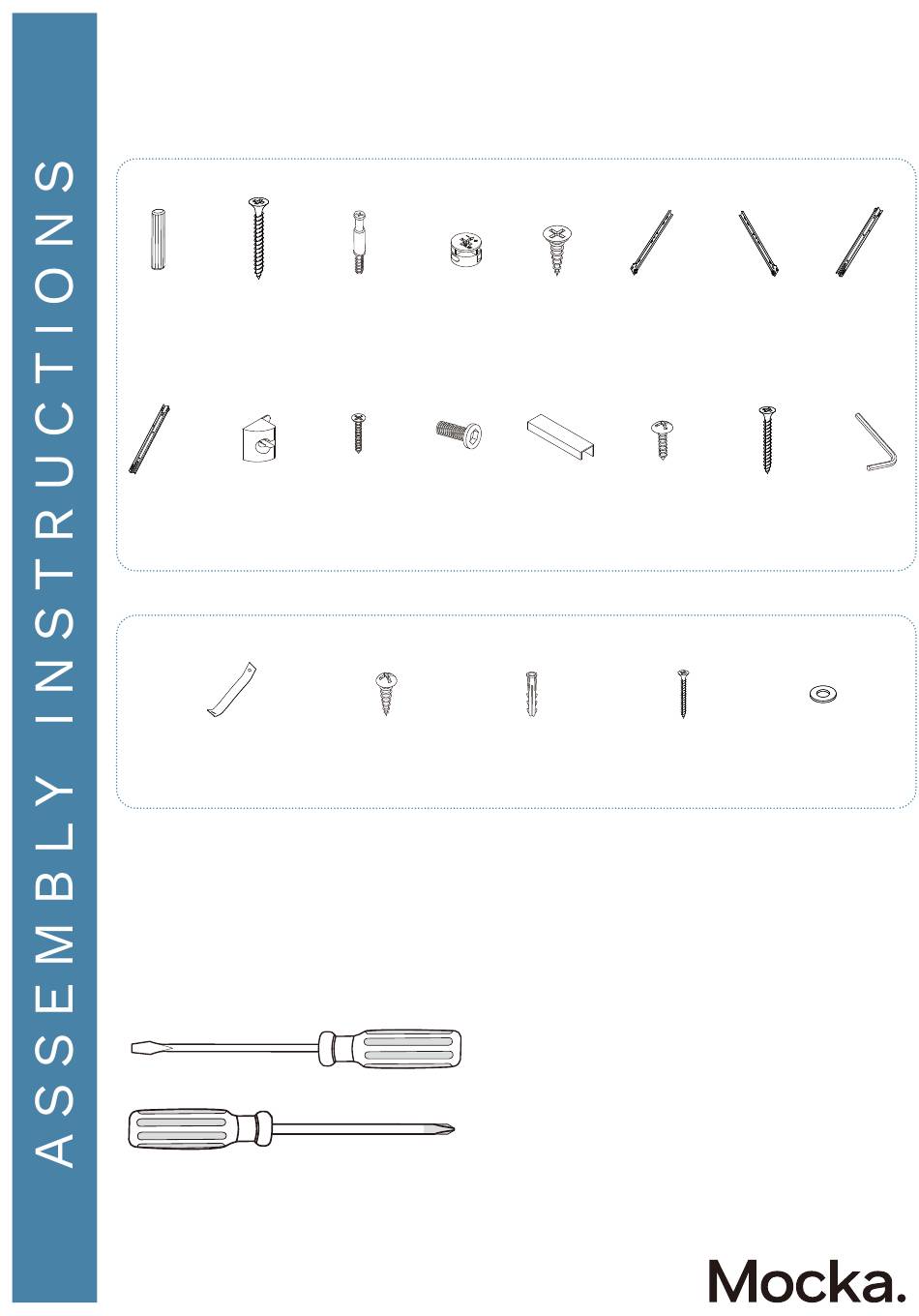

Hardware Supplied - Mocka Inca Three Drawer Assembly Instructions Manual

Inca
Three Drawer
A B
dowel
screw
x 8
x 6
DR J
slide wedge
rail x 3 x 8
V
safety
strap x 1
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend these are used to prevent your product tipping.
The fixing device provided should fit most wall types, but please note that different wall materials
may require different fixing devices from those supplied.
mocka.co.nz I mocka.com.au
C D
bolt
locking
x 29
nut x 29
K L
screw bolt
x 8 x 8

HARDWARE SUPPLIED

W
screw
x 1 anchor x 1
WALL STRAP
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E CL
slide
screw
rail x 3
x 36
M N
handle small
x 3 screw
x 6
X Y
wall wall
screw x 1
CR DL
slide slide
rail x 3 rail x 3
O P
screw Allen
x 15 Key
x 1
Z
washer
x 2
