- Page 1 Hello, I’ve arrived! Now that I’m here you are only one flat-pack away from transforming your home.
- Page 2 Thank you for supporting us. We believe design belongs to everyone. From materials and processes to safety testing, production and delivery, we are passionate and committed to bringing you the best possible product so you can create beautifully functional spaces to feel comfortably you. Here are a few assembly tips before you get started: Make Time Set The Mood...

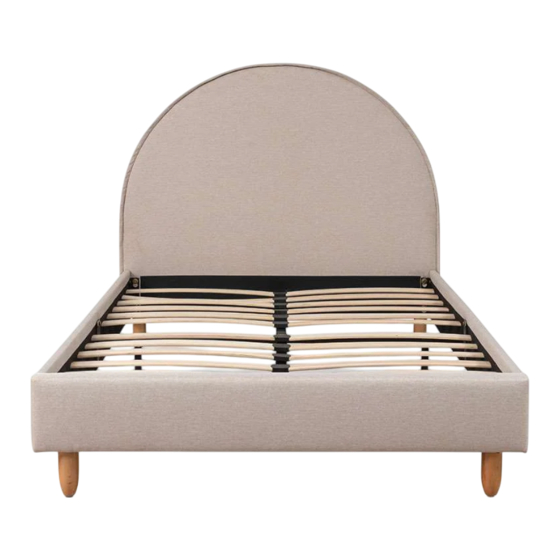

- Page 3 Imogen Queen Bed Thank you for purchasing Imogen Queen Bed. Please follow the manufacturer’s assembly instructions in detail. double 25mm spring washer 25mm cap x 14 bolt x 8 washer x 8 bolt x4 20mm 35mm left right bolt x 20...
- Page 4 Imogen Queen Bed mocka.co.nz I mocka.com.au I...
- Page 5 Imogen Queen Bed 1a: Attach 1x left plate(L) to panel[3] and 1x right plate(R) to panel[4] and 2a: Attach 1x left plate(L) to panel[5] and 1x right plate(R) to panel[6] and secure with 4x 20mm bolts(F). Tighten with Allen Key (T2).
- Page 6 Imogen Queen Bed 4a: Insert panel [9] and sit on top of the connector (10) and secure with Join the side panel[3] & panel[6] and join the side panel[4] & panel[5] 2x 25mm bolts (E). Tighten with Allen Key (T2).
- Page 7 Imogen Queen Bed Join the bed planks together in the middle of the frame using 14x Lift the bed into the desired location, do not drag, You're done, enjoy! double caps (A). Insert the end of the planks into the bed frame as shown and attach the double caps (A) into panel [8].
