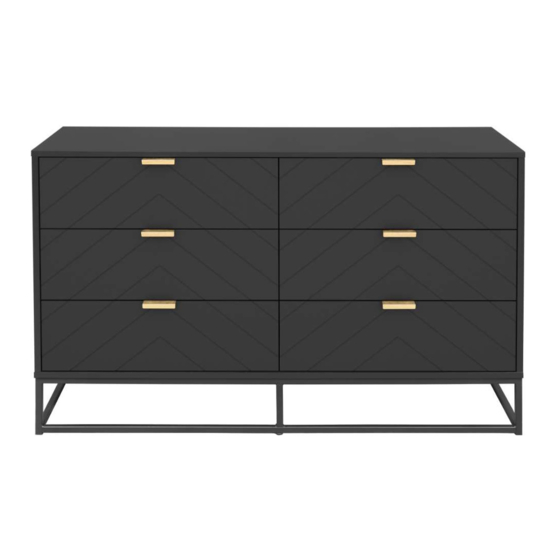

Inca Six Drawer
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
screw
bolt
dowel
locking
x12
x8
x34
nut x34
J
K
L
bolt
handle
wedge
screw
x8
x8
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
D
F
screw
slide
slide
x72
rail x6
rail x6
M
N
O
small
screw
Allen
screw
x24
Key
x6
x10

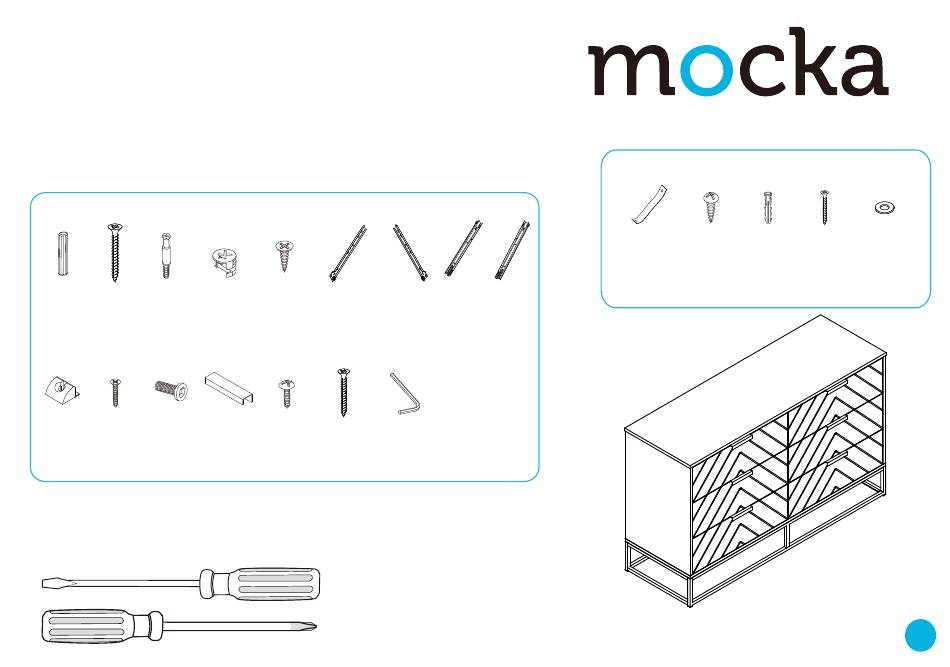

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
I
G
H
slide
slide
rail x6
rail x6
P
x1
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
screw
x4
x2
1
Advertisement
Related Manuals for Mocka Inca Six Drawer
Summary of Contents for Mocka Inca Six Drawer
- Page 1 *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 3x slide rails (F) and 3x slide rails (G) to panels [3] and [4] as shown and secure with 18x screws (E). Insert 4x bolts (C) into panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach 3x slide rails (G) and 3x slide rails (F) to panel [5] as shown Attach panels [3] and [4] to the panel [6] secure with 4x locking nuts (D). and secure with 18x screws (E). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Assembly Instructions Attach panel [5] to panel [6] secure with 2x long screws (B). Slide panel [7] down along the grooves between the panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Slide panel [7] down along the grooves between the panels [3] and [4]. Attach panel [1] to the panels [3], [4] and [5] with 6x dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [2] to panels [3], [4] and [5] with 6x dowels (A) and Attach panel [8] to panels [9] and [10] secure with 8x bolt (L). Tighten with secure with 6x long screws (B). Tighten with a screwdriver. an Allen Key (P). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Drawers x6 Attach panels [8] and [9] to panel [2] with 10x small screws (N). Insert 4x bolts (C) into panels [11]/[12]. Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach panels [13] and [14] to panels [15] as shown using Slide panels [16] along the grooves between the side panels [13] 4x screws (O). Tighten with a screwdriver. and [14] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach slide rail (I) and slide rail (H) to the underside of the side panels as shown. 4x locking nuts (D). Tighten with a screwdriver. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Attach 1x handle (M) to panels [11]/[12] secure with 2x screws (E). Insert the assembled drawers into the corresponding compartments Tighten with a screwdriver. as shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 Fasten to the wall using 2x washers (Z), 2x wall anchors (X) and 2x screws (W). Tighten with a screwdriver. 2x wall screws (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
