Inca Bedside
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
screw
bolt
dowel
locking
x8
x4
x12
nut x12
J
K
L
wedge
screw
bolt
x4
x8
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
D
F
G
screw
slide
slide
x24
rail x2
rail x2
M
N
O
handle
small
screw
screw
x8
x2
x6

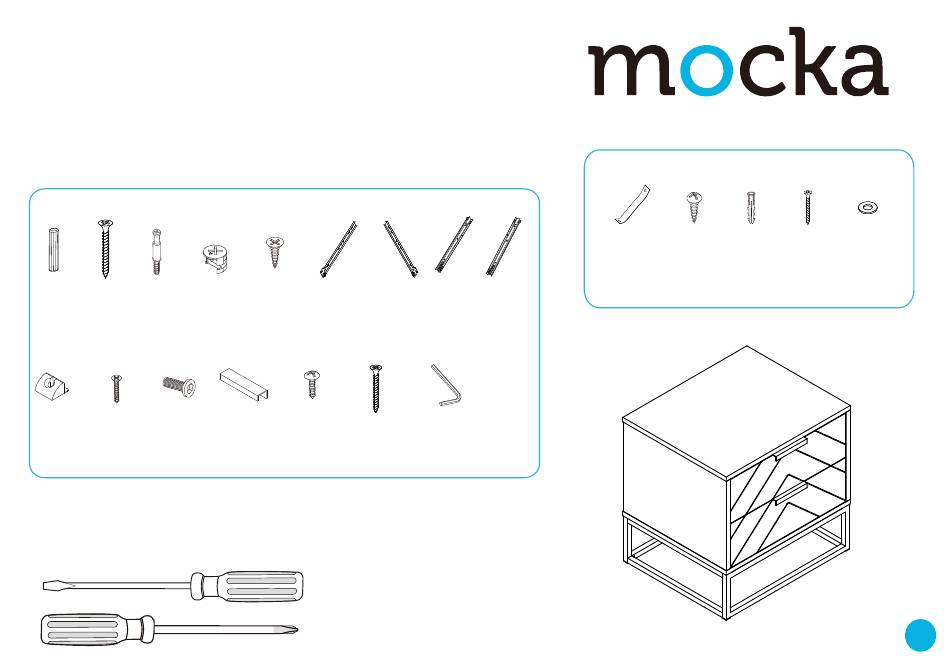

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
I
slide
slide
rail x2
rail x2
P
Allen
Key
x1
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Inca Bedside
Summary of Contents for Mocka Inca Bedside
- Page 1 Phillips & Flathead screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 4x bolts (C) into panel [1] and tighten with a screwdriver. Attach 2x slide rails (F) and 2x slide rails (G) to panels [3] and [4] as shown and secure with 12x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Slide panel [5] down along the grooves between the panels [3] secure with 4x locking nuts (D). Tighten with a screwdriver. and [4] to form the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [2] to the unit with 4x dowels (A) and secure with 4x Attach panels [6] to panels [7] and panels [8] with 8x bolt (L). Tighten screws (B). Tighten with a screwdriver. with an Allen Key (P). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Inca Bedside Assembly Instructions Insert 8x bolts (C) into panels [9]/[10]. Tighten with a screwdriver. Attach panels [6] to panel [2] with 6x small screw (N). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Drawers x2 Attach panels [12], [13] and [14] as shown using 8x screws (O). Slide panels [11] along the grooves between the side panels [13] and [14]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach slide rail (I) and slide rail (H) to the underside of the side panels 8x locking nuts (D). Tighten with a screwdriver. as shown. Secure with 8x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach 2x handles (M) to panels [9]/[10] and secure with 4x Insert the assembled drawers into the corresponding compartments screws (E). Tighten with a screwdriver. as shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x screw (W). Tighten with a screwdriver. 1x wall screw (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
