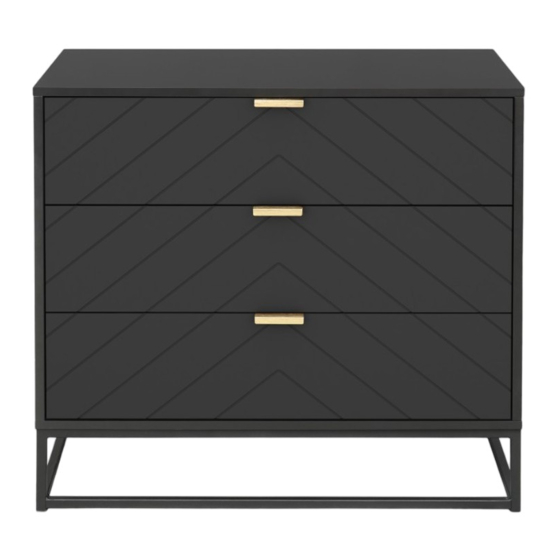

Inca Three Drawer
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
dowel
screw
bolt
locking
x6
x8
x29
nut x29
K
J
L
bolt
handle
wedge
screw
x8
x8
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
screw
slide
slide
x36
rail x3
rail x3
N
O
M
small
screw
Allen
screw
x15
Key
x3
x6

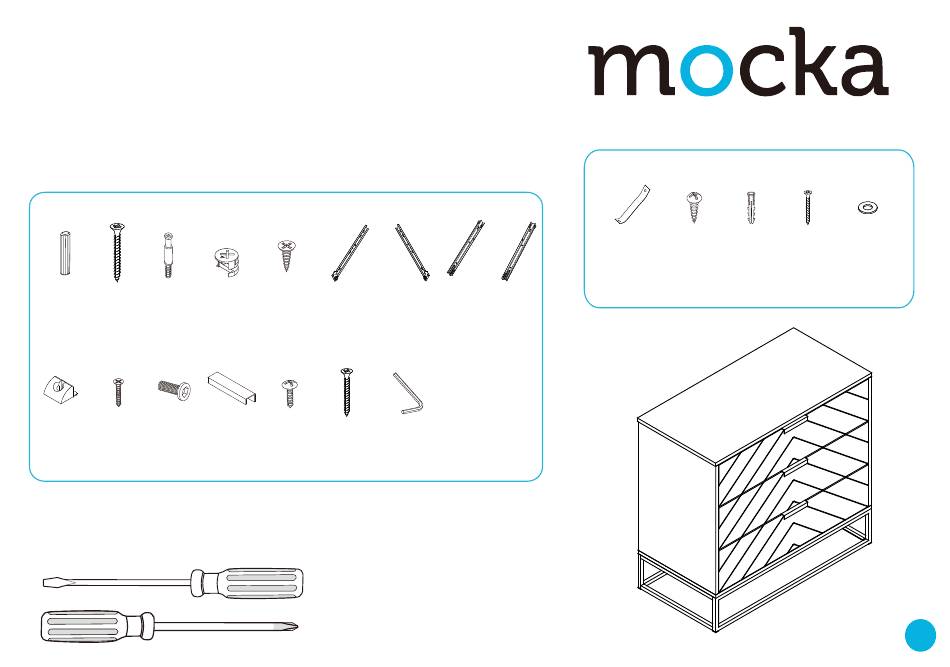

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
I
slide
slide
rail x3
rail x3
P
x1
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Related Manuals for Mocka Inca Three Drawer
Summary of Contents for Mocka Inca Three Drawer
- Page 1 Phillips & Flathead screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 3x slide rails (F) and 3x slide rails (G) to panels [3] and [4] as shown and secure with 18x screws (E). Tighten with a screwdriver.Insert 10x bolts (C) into panels [3] and [4] and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [5], [6] and [7] to panel [3] secure with 5x locking Attach panel [4] to panels [5], [6] and [7] secure with 5x locking nuts (D). Tighten with a screwdriver. nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Slide panel [8] down along the grooves between the panels [3] and [4] to form the back of the unit as shown. 4x locking nuts (D) and 2x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panel [2] to panels [3] and [4] with 4x dowels (A) and secure with and [4] to form the back of the unit as shown. 4x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panels [9] to panels [10] and [11] secure with 8x bolt (L). Tighten with Attach panels [9] and [11] to panel [2] with 6x small screws (N). an Allen Key (P). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panels [13], [14] and [16] to panels [15] as shown using Insert 5x bolts (C) into panel [12]. Tighten with a screwdriver. 5x screws (O). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Slide panels [17] along the grooves between the side Attach panels [12] to panels [13], [14] and [16] secure with 5x locking panels [13] and [14] as shown. nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach slide rail (I) and slide rail (H) to the underside of the side Attach 1x handle (M) to panels [12] secure with 2x screws (E). panels. Secure with 4x screws (E) and tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Ensure the drawers slide easily along the rails. safety straps (V) to the top of the back side of the unit as shown using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
