Imogen Kids Single & King Single Bed
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembl y.
double
25mm
cap x12
bolt x8
washer x8
20mm
35mm
bolt x20
bolt x1
plate x2
small allen
large allen
key x1
key x1
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
spring
washer
25mm
x
8
bolt x4
left
right
plate x2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Imogen
Summary of Contents for Mocka Imogen

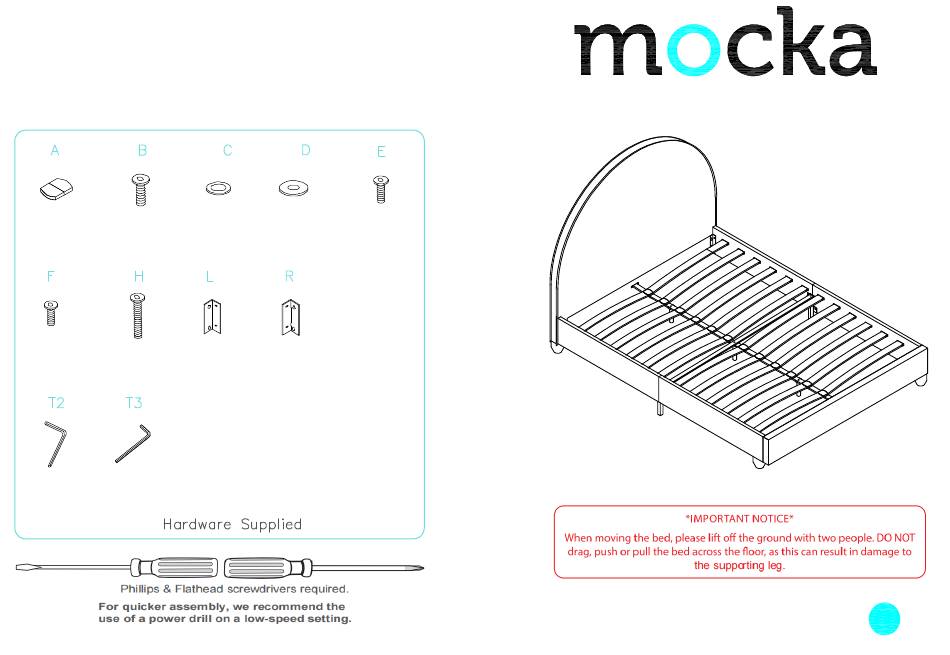

- Page 1 25mm cap x12 bolt x8 washer x8 bolt x4 20mm 35mm left right bolt x20 bolt x1 plate x2 plate x2 small allen large allen key x1 key x1 mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
