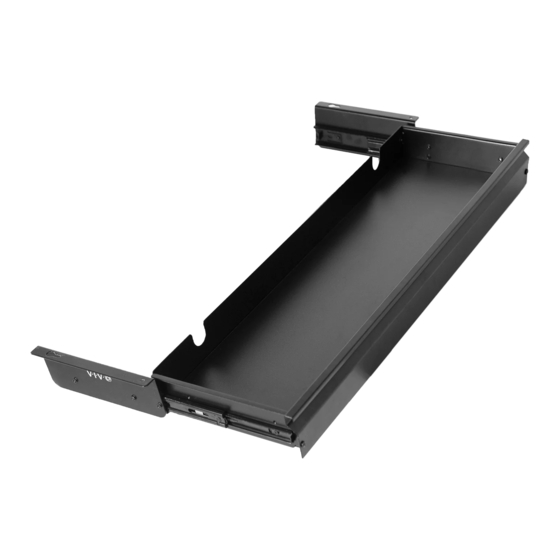

Black Extra Long Under Desk Drawer
Instruction Manual
SKU: DESK-DR33-B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-dr33-b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-DR33-B
Summary of Contents for Vivo DESK-DR33-B
- Page 1 Black Extra Long Under Desk Drawer Instruction Manual SKU: DESK-DR33-B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-dr33-b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! ASSEMBLY OPTION A: DRAWER If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. STEP 1 Improper installation may cause damage or serious injury. - Page 3 STEP 3 ASSEMBLY OPTION B: KEYBOARD TRAY Assemble Back Wall (E) to assembly using M5x5mm Screws (S-A) and a Phillips screwdriver. STEP 1 Push down on Right Side Bracket (B) Rail Release Lever to release, then separate the Outer Rail (B1) from Inner Rail (B2).
- Page 4 STEP 3 STEP 5 Install Rails (B3, A3) into upper holes of Inner Rail Brackets (B2, A2) with a Phillips screwdriver. Assemble Back Wall (E) to assembly using M5x5mm Screws (S-A) and a Phillips screwdriver. Reconnect Outer Rails (B1, A1) to Inner Rail Brackets (B2, A2). Secure underside of Back Wall (E) with M5x12mm Screws (S-B) and a Phillips screwdriver.
-
Page 5: Mounting Instructions
STEP 2 MOUNTING INSTRUCTIONS Using a Phillips screwdriver, install two M5x16mm Screws (W-A) into back mounting holes in desktop, leaving a 3mm gap for keyhole mounting. STEP 1 Use Template (F) and a pencil to mark mounting holes in desktop. Drill 3/8” (10mm) deep pilot holes using a 3/32”... - Page 6 STEP 4 Install remaining two front M5x16mm Screws (W-A) and M5 Washers (W-B) using a Phillips screwdriver. THIS PAGE INTENIONALLY LEFT BLANK...
- Page 7 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
