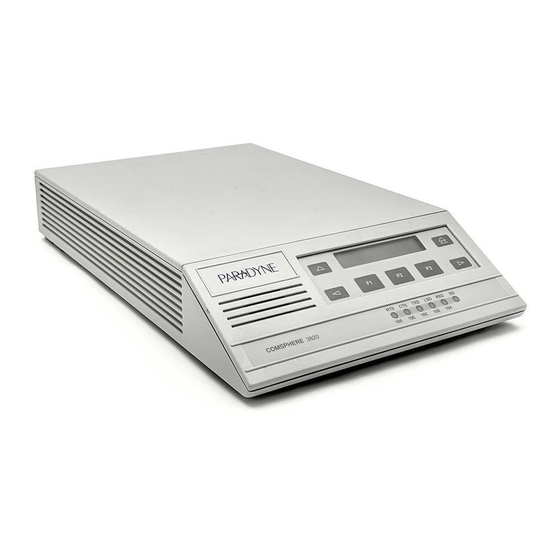

Paradyne COMSPHERE 3810 Quick Reference Manual
  1. Manuals
  2. Brands
  3. Paradyne Manuals
  4. Modem
  5. COMSPHERE 3810
  6. Quick reference manual

Paradyne COMSPHERE 3810 Quick Reference Manual

Comsphere 3800 series
Hide thumbs Also See for COMSPHERE 3810:
Table of Contents

Advertisement

Quick Links

See also: User Manual
COMSPHERE 3800
SERIES MODEMS
MODELS 3810, 3811, AND 3820
QUICK REFERENCE
Document No. 3810-A2-GL10-00

Advertisement

Table of Contents
loading

Related Manuals for Paradyne COMSPHERE 3810

Summary of Contents for Paradyne COMSPHERE 3810

  • Page 1 COMSPHERE 3800 SERIES MODEMS MODELS 3810, 3811, AND 3820 QUICK REFERENCE Document No. 3810-A2-GL10-00...

  • Page 2: Document Feedback

    Copyright E 1998 Paradyne Corporation. All rights reserved. Printed in U.S.A. Notice This publication is protected by federal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Paradyne Corporation, 8545 126th Ave.

  • Page 3: Quick Reference

    Electronic User Documentation For more information, see the COMSPHERE 3800 Series Modems, Models 3810, 3811, and 3820, User’s Guide (Document No. 3810-A2-GB30). The User’s Guide is provided on diskette. It may be installed on a PC using Microsoft Windows 3.1 or above, then browsed or printed using the Adobe Acrobat Reader.

  • Page 4: Lcd And Keypad

    Models 3810 and 3820 Installation DIAGNOSTIC CONTROL PANEL LCD AND KEYPAD SPEAKER STATUS INDICATORS AC TRANSFORMER EIA-232-D INTERFACE DIAL/LEASED (3820) PHONE/LEASED (3810) AC POWER IN ON/OFF 496-13096-02...

  • Page 5: Dial Network Management System Connection

    2. Insert the other end of the modular cord into the telephone. Dial Network Management System Connection For Model 3810 and 3820 modems, use the following procedures to connect the modem to the network management system interface: 1. Insert the subminiature 4-conductor modular plug of the 3600 Hubbing Device into the jack labeled NMS.
  • Page 6 Model 3810 Dial Connection For the Model 3810, use the following procedures to connect the modem to the dial network interface: 1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL / LEASED (3820). 2. Insert the other end of the modular cord into the network interface.
  • Page 7 1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL / LEASED (3820). 2. Insert the other end of the modular cord into the network interface. PHONE LEASED (3810) 6-POSITION, 4-CONDUCTOR PLUG FOR TELEPHONE SET DIAL LEASED...

  • Page 8: Dte Connection

    DTE Connection Use the following procedures to connect the EIA-232-D cable and ferrite choke from the modem to the DTE: 1. Make sure the modem’s rear panel power switch is Off. 2. Connect the DB-25 plug on the cable to the DB-25 socket labeled DTE on the modem’s rear panel.

  • Page 9: Model 3811 Installation

    Model 3811 Installation FACEPLATE Status Alrm Test Dial Busy Serv Front Panel Spkr 3811 EIA-232/V.24 CONNECTOR CONNECTOR EIA-232/V.24 EDGE CARD CONNECTOR RS-366A/V.25 EDGE CARD CONNECTOR RS-366A/V.25 CONNECTOR REAR PLATE 496-13155-02...
  • Page 10 Customer-Supplied Equipment for Model 3811 The following customer-supplied equipment is required for the installation of a Model 3811 modem: A COMSPHERE 3000 Series Carrier. A male-to-female 50-pin mass termination cable. One Network Interface Module (NIM) for modems installed in Slots 1–8 and one NIM for modems installed in Slots 9–16 (required for dial-line applications).
  • Page 11 1. At the rear of the carrier, install the rear connector plate. Make sure the plate uses the same slot position as that intended for the modem. — Loosely fasten the plate. This allows for slight adjustments later when installing the modem. 2.
  • Page 12 If the modem is to communicate with an installed SDCP, install the modem as described above and perform the following steps: 1. Press the key on the SDCP. The cursor appears in the carrier selection Select entry. 2. Press the F1 (") or F2 ( ) key until the carrier number you want appears on the LCD.
  • Page 13 Diagnostic Control Panel (DCP) – Models 3810 and 3820 The DCP is the user interface to the modem. It provides a 2-line, 32-character liquid crystal display (LCD), a keypad, speaker grill, and status indicators. SPEAKER COMSPHERE 3810 COMSPHERE 3820 STATUS INDICATORS KEYPAD I d l e : 1 9 .
  • Page 14 Shared Diagnostic Control Panel (SDCP) – Model 3811 The SDCP is used to manage carrier-mounted 3811 modems. The Select key is used to connect the SDCP to a modem or other device in a specific carrier and slot location. Press the Select key, then enter the modem carrier (1–8) and slot (1–16) numbers. The Front Panel LED lights up on the selected modem.
  • Page 15 Configuration Option Procedures — DCP Commands 1. Move to the Configure branch and select a configuration area to load from: Active (Operating), Active (Saved), Customer 1, Customer 2, or Factory (Async Dial, Sync Dial, Sync Leased, or UNIX Dial). If Enhanced Throughput Cellular (ETC) is installed, Factory areas Cellular (Mobile) and Cellular (PSTN) are also available.
  • Page 16 3800 Modems Menu Tree Call_Setup Dial Answer Change_Directory Disconnect Dial_Standby Return_to_Dial Directory Locations 1 – 10 Does not appear in Remote Mode. (Rem_Digital_Loop, Loc_Digital_Loop, and Pattern appear if the secondary channel is used.) Some choices within this group may not appear depending upon how previous configuration options have been selected.
  • Page 17 from previous page Configure Ld EditArea frm: Activ (Operating) Customer1 Active (Saved) Edit from previous page Leased_Line V42/MNP/Buffer Leased Mode Err Contrl Mode LeasedLine Rate V42/MNPorBfr 19200(V32t) V42/MNPorDsc 16800(V32t) MNP or Buffr 14400(V32b) MNP or Disc 12000(V32b) BufferMode 9600(V32b) DirectMode 7200(V32b) LAPM_or_Disc 4800(V32b)
  • Page 18 from previous page Control Remote Security Secondary Prim (data blckd) (ExitRem appears instead of Remote when using Remote Mode) Set_Access_Ctrl Reset_Security (Admin Password?) EditPassWdTable Set_Orig_Secur Set_Answer_Sec Set_Admin_PsWd Speaker Make_Busy Download Code RemoveMakeBusy Reset Service_Line DiscServLine 98-14436c-03...
  • Page 19 Configuration Option Procedures — AT Commands Loading Factory Configurations Use the AT&F y &W n command to load a factory configuration to either the Active (Saved), Customer 1, or Customer 2 configuration area. Type: AT&F y &W n where: y is one of the following factory configurations: 0 = Async Dial 1 = Sync Dial 2 = Sync Leased (Answer)
  • Page 20 AT COMMANDS Bold text indicates Async Dial factory defaults. Attention Command Prefix/Autobaud Rate. Indicates a command string has started and determines the DTE’s data rate and parity. Repeat Last Command. Re-executes last command string. (Not to be preceded with AT or followed by pressing Enter.) Answer Mode.
  • Page 21 AT COMMANDS (continued) Loads contents of Active (Saved) into Active (Operating) and performs a reset. Performs a full modem reset. &Cn LSD Control &C0 Forced On. Forces LSD ON at all times. &C1 Standard RS232. LSD is ON when the remote modem’s carrier signal is detected.
  • Page 22 AT COMMANDS (continued) &R2 Simulated Control Carrier. State of RTS follows state of LSD. &Sn DSR Control &S0 Forced On. Forces DSR signal ON. &S1 Standard RS232. Modem controls DSR signal. &S2 Wink When Disc. DSR signal turns Off for approximately 1 to 2 seconds upon disconnecting.

  • Page 23: Result Codes

    AT COMMANDS (continued) Direct Mode. Modem does not use error control; DTE rate and VF rate must be the same. MNP or Disc. Modem disconnects if it does not connect in MNP mode. MNP or Buffer. Modem connects in Buffer mode if it does not connect in MNP mode.
  • Page 24 S-REGISTERS Register Description Auto-Answer Ring Number AT Escape Character Carriage Return Character Line Feed Character Backspace Character Blind Dial Pause No Answer Time-out “,” Pause Time for the Dial Modifier No Carrier Disconnect Escape Guard Time Test Time-out RTS/CTS Delay 1800 Hz Training Tone Auto Redial (Leased Line) Rate Auto Originate...
  • Page 25 S-REGISTERS (continued) Register Description V.54 Device Type Access from Remote Remote Access Password 1st and 2nd digits Remote Access Password 3rd and 4th digits Remote Access Password 5th and 6th digits Remote Access Password 7th and 8th digits CT111 Rate Control V.25bis Coding V.25bis Idle Character V.25bis New Line Character...
