A6U49 / A10U49
Mid & Long-Range UHF Reader
Wireless Signal with
AES128
ENCRYPTION
w w w. cd v igrou p . co m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A6U49 and is the answer not in the manual?

Questions and answers

Summary of Contents for CDVI A6U49

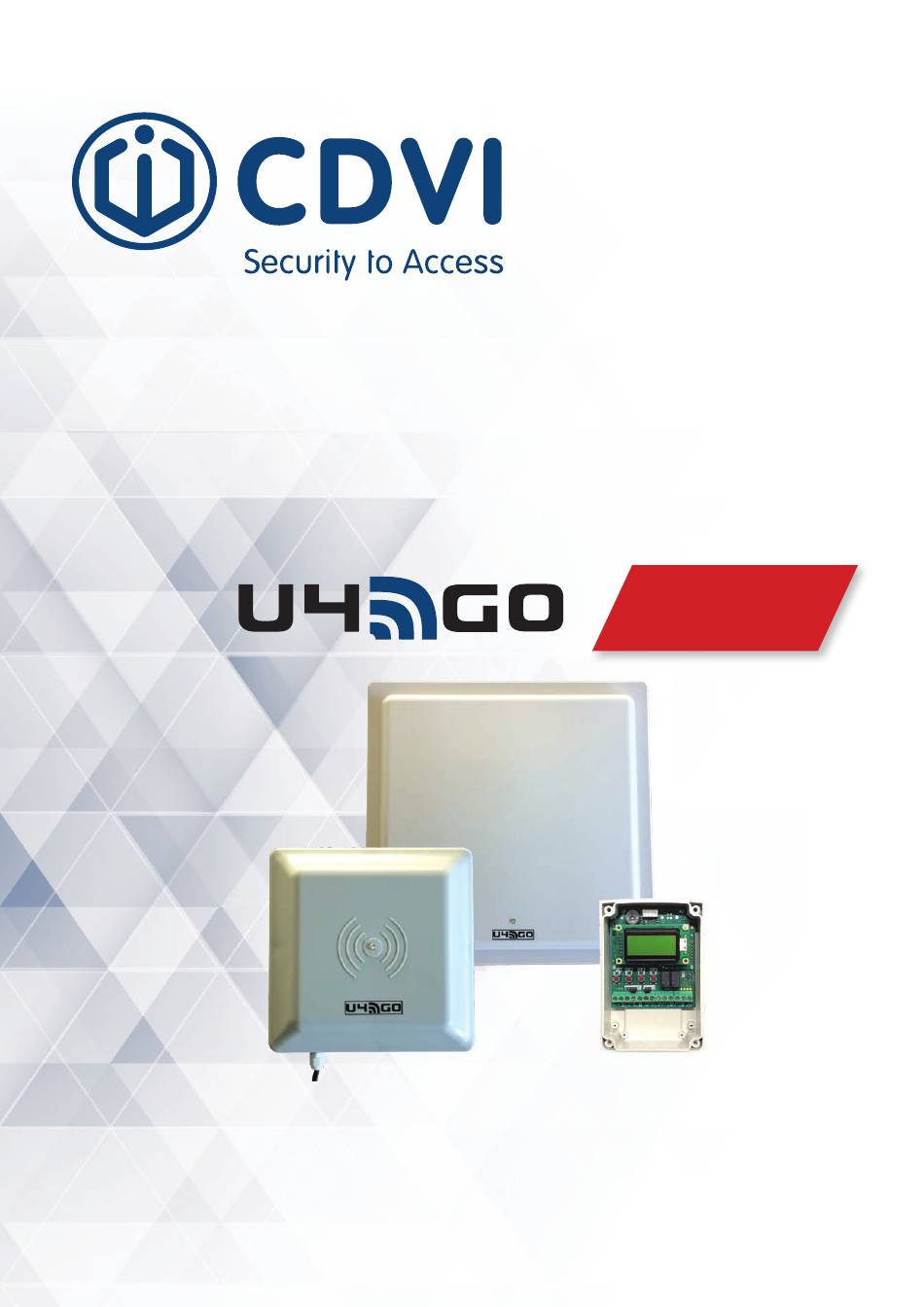

  • Page 1 A6U49 / A10U49 Mid & Long-Range UHF Reader Wireless Signal with AES128 ENCRYPTION w w w. cd v igrou p . co m...
  • Page 2: Table Of Contents

    A6U49 mounting DIAGRAM ........
  • Page 3: Product Presentation

    • Protocol tag supported: ISO18000-6B, ISO18000-6C, EPC C1G2 • Transmission type: FHSS A6U49 • Dimensions: A6U49: 9.25 x 9.25 x 2.25 in (235 x 235 x 57 mm) A10U49:17.5 x 17.5 x 2.15 in (445 x 445x 55 mm) cdvigroup.com...
  • Page 4: Package Contents

    A6U49 and A10U49 Mid to Long-Range UHF Readers 3] PACKAGE CONTENTS This chapter details how to install and setup the U4GO A6U49 or A10U49. The box contains: • One A6U49 or A10U49 antenna • Universal power supply with AC power cord plug •...
  • Page 5: Mounting Instructions

    A6U49 and A10U49 Mid to Long-Range UHF Readers 4] MOUNTING INSTRUCTIONS A6U49 MOUNTING DIAGRAM Mounting pole (Not included) RF Reader U-shaped bracket and counter-plate bracket L-shaped bracket Fixing screws & nuts cdvigroup.com...
  • Page 6: A10U49 Mounting Diagram

    A6U49 and A10U49 Mid to Long-Range UHF Readers A10U49 MOUNTING DIAGRAM Mounting bracket RF Reader 7.25 ft (2,2 M) Mounting pole (Not included) cdvigroup.com...
  • Page 7: Rf Module Mounting Diagram

    A6U49 and A10U49 Mid to Long-Range UHF Readers RF MODULE MOUNTING DIAGRAM Option A) 2) Fix the support to the place where the RF module will be installed using the provided screws and anchors. R X U 4 G O...
  • Page 8: Wiring Diagram

    A6U49 and A10U49 Mid to Long-Range UHF Readers 5] WIRING DIAGRAM Connector for Connector for Buzzer Buzzer backup memory backup memory Backlit Backlit CDVI Pull-Up Wiegand Pull-Up Wiegand LCD Display LCD Display U4Go J2 ON = 9V J2 ON = 9V...
  • Page 9: Side Installation

    A6U49 and A10U49 Mid to Long-Range UHF Readers Side Installation Barrier Reader Ticket box Pole Barrier Over-Head Installation Reader Holder for overhead Ticket box installation Barrier cdvigroup.com...
  • Page 10: Programming

    A6U49 and A10U49 Mid to Long-Range UHF Readers 6] PROGRAMMING Menu Commands: CDVI Press “P3” for 4 sec. to U4Go enter in programming Press “P1” to scroll up mode or press once to confirm a selection P1 P2 P3 P4 Press “P4”...
  • Page 11: Adding Uhf Credential

    A6U49 and A10U49 Mid to Long-Range UHF Readers 2. Adding UHF credential There are two ways to register a UHF credential: • One at a time • In one block (batch). 2.1 Adding UHF credential one at a time Scroll to the “Add Tag”...
  • Page 12: Deleting Uhf Credential

    A6U49 and A10U49 Mid to Long-Range UHF Readers 3. Deleting UHF credential 3.1 Delete UHF credential one at a time Present the UHF credential to the reader Scroll until Scroll until “menu Del Tag” “Delete Tag” type manually its serial number then press “P3”...
  • Page 13: Adding Remote (Tx)

    A6U49 and A10U49 Mid to Long-Range UHF Readers 4. Adding Remote (Tx) The “Add Tx” menu is required in “Relay” mode ONLY. See “1. Set the operating mode (output)”. You can add up to 100 remote controls. A remote control can activate either relay 1 or relay 2.
  • Page 14: Deleting Remote (Tx)

    A6U49 and A10U49 Mid to Long-Range UHF Readers 5. Deleting Remote (Tx) 5.1 Delete remote one at a time (will completely remove the remote) Scroll until Scroll until “menu Del Tx” “Delete Tx” Press any button of the remote then press “P3”...
  • Page 15: Settings

    A6U49 and A10U49 Mid to Long-Range UHF Readers 6. Settings Scroll until Scroll to desire “menu Settings” selection then then press “P3” press “P3” The interval is the time between each reading of the same m e n u S e t t i n g s serial number which remains in the range of the reader.
  • Page 16: Configuration

    A6U49 and A10U49 Mid to Long-Range UHF Readers 7. Configuration 7.1 Wiegand Output Settings Scroll to desire Scroll until “menu Config” Wiegand setting then press “P3” then press “P3” Set the Wiegand protocol to: m e n u W i e g a n d B i t 26, 30 or 44 bit (default 26-bit).
  • Page 17: Backup

    A6U49 and A10U49 Mid to Long-Range UHF Readers 8. Backup Upload or download the full database using an external memory card 1) Plug-in the memory into the connector Scroll until Scroll to desire (Red Rubber Memory = 512 Kbit) “menu Backup”...
  • Page 18 A6U49 and A10U49 Mid to Long-Range UHF Readers 9 . Option The menu “Option” allows you to enable (“ON” or “OFF”) the “Auto-Install” feature. The “Auto-Install” feature allows you to register other remote controls from any remote control already memorized in the module.
  • Page 19: Info

    A6U49 and A10U49 Mid to Long-Range UHF Readers 10 . Info Scroll until Scroll to desire “menu Info” info then Displays the current output settings: then press “P3” press “P3” If output set in “Relay” mode, it will display relays operating...
  • Page 20: Uhf Credential Installation

    A6U49 and A10U49 Mid to Long-Range UHF Readers 11. UHF Credential Installation Choose one of the six places (A-F) on the windshield as showed in the figure below to install. According to the European Standard, some vehicles with metalized windshield have a reserved area (not metalized) for RFID tags so choose position B.
  • Page 21: Parking Or Garage Application Diagram

    A6U49 and A10U49 Mid to Long-Range UHF Readers 12. Parking or Garage Application Diagram Direction of traffic flow Presence vehicle loop Tag read zone Readers should be at least 4,5m apart Reader Gate Exit loop Exit loop Gate Reader Tag read...
  • Page 22: Using And Installing Uhf Credential

    A6U49 and A10U49 Mid to Long-Range UHF Readers 13. Using and Installing UHF Credential 13.1 Regular ISO or Clamshell UHF Credential Use a card to test reader position for optimal performance. Attention: the card is very sensitive to the human hand.
  • Page 23: Wiegand Output Formats

    1101 WARRANTY AND DECLARATION OF CONFORMITY Hereby, CDVI Wireless Spa, declares that the radio equipment types A6U49 and A10U49 complies with the Standard 47 CFR FCC Part 15, subpart B. The full text of the Declaration of conformity is available at the following internet address: www.erone.com.
  • Page 24 CDVI AMERICAS [CANADA - USA - LATIN AMERICA] www.cdvi.ca CDVI BENELUX [BELGIUM - NETHERLAND - LUXEMBOURG] www.cdvibenelux.com CDVI FRANCE www.cdvi.com CDVI IBÉRICA [SPAIN - PORTUGAL] www.cdviberica.com CDVI ITALIA www.cdvi.it CDVI MAROC www.cdvi.ma CDVI POLSKA www.cdvi.com.pl CDVI SUISSE [SWITZERLAND] www.cdvi.ch CDVI SWEDEN [SWEDEN - DENMARK - NORWAY - FINLAND] www.cdvi.se...
