CDVI SOLARPB Quick Start Installation Manual

SOLARPB
Wiegand 125 kHz Proximity Readers

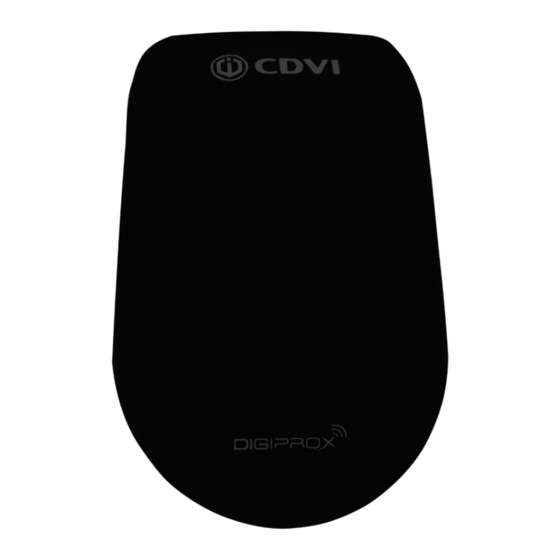

The SOLAR from CDVI is a standard proximity
card reader.
These stylish new readers are available in black.
The SOLAR gives an anytime status of the door
through multi-coloured LED's.
These access control readers have a high
performance read range and are easy to mount.
The SOLAR is also vandal proof.
We, CDVI, declare that the SOLAR radio equipment complies
with directive 2014/53/UE. The full text of the EU declaration is
available at www.cdvi.com
• Wiegand 26, 30 or 44-bit
• Visual and audible feedback
• Technology: 125 kHz
• Power requirements: 12V DC
• Current consumption: 100 mA
• Multicoloured LED:
- Blue: Standby
- Green: Access Granted
- Red : Access Denied
RFID Frequency band: 125 kHz. Maximum transmitted power below the allowed limit: <60dBμA/m
QUICK START
INSTALLATION GUIDE
w w w . c d v i g r o u p . c o m
RED Certification
CE Certification
Vibrations
-25°C to +70°C
IK10
IP53
WEEE
90
10
YEAR
WARRANTY
SOLAR-PB
35
