ievo User Guide
Getting started with ievo Biometric
Solutions
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ievo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CDVI Ievo

Summary of Contents for CDVI Ievo

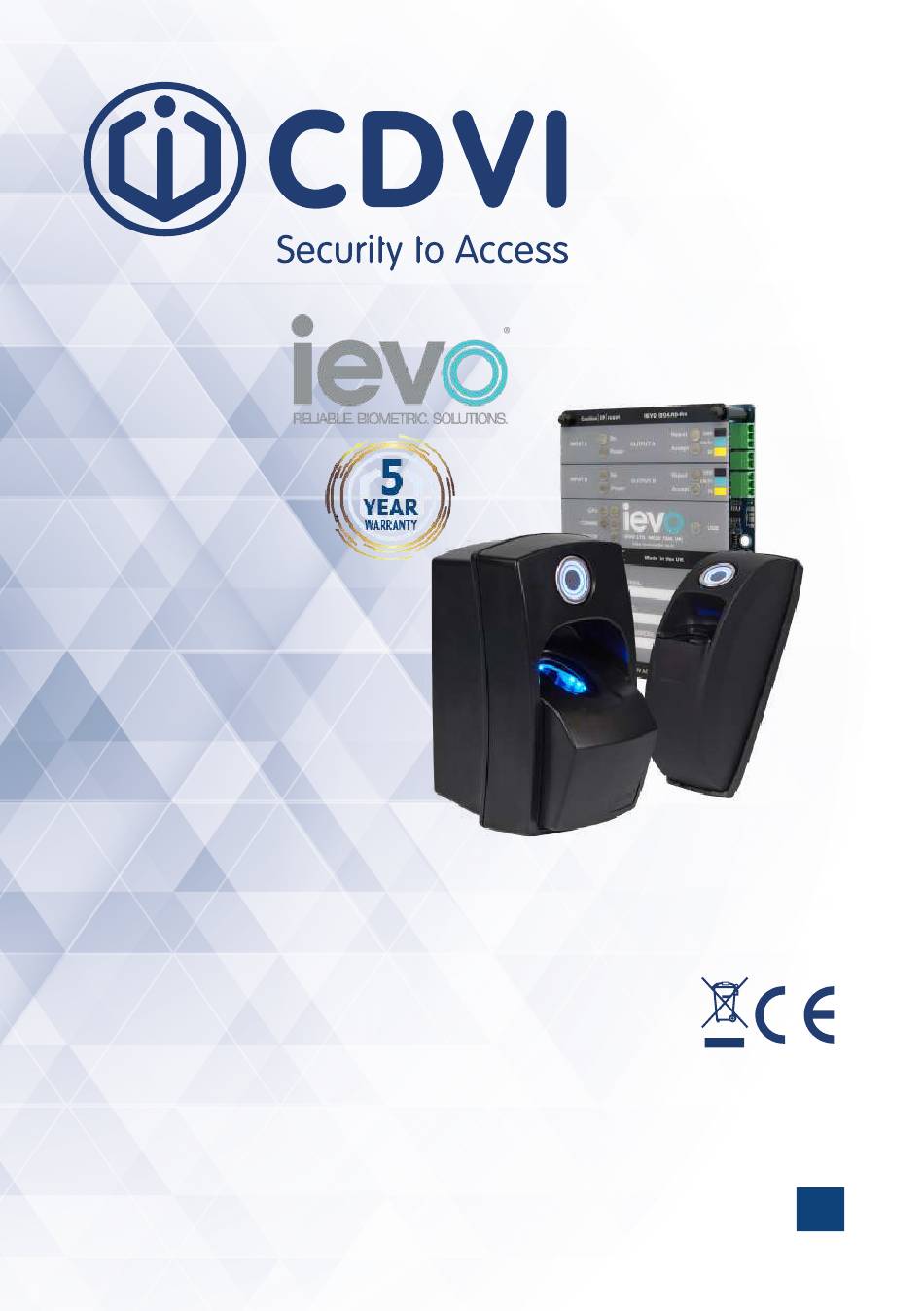

  • Page 1 User Guide Getting started with ievo Biometric Solutions...

  • Page 2: Table Of Contents

    2] Welcome to Biometrics 3] Using ievo desktop registration units 4] Using the ievo ultimate reader 5] Using the ievo micro reader 6] Using ievo as a card reader 7] Administration guide 8] Troubleshooting 9] Problem fingerprints 10] Data protection...

  • Page 3: Welcome To Biometrics

    Getting started with ievo biometric solutions 2] WELCOME TO BIOMETRICS Thank you for choosing CDVI Ltd. and the ievo brand as your provider of biometric security solutions. Your new fingerprint reader(s) will offer a safe, reliable system to assist with your access control and /or time and attendance system. Although very simple to use, this guide will ensure you obtain the maximum benefits of your products.
  • Page 4 Human Rights laws. Note: Before using your ievo system, please ensure that all required software and drivers have been correctly installed and set up by your installation provider. Should you have any technical issues or concerns please speak to your supplier or installation provider as the first line of contact.

  • Page 5: Using Ievo Desktop Registration Units

    The difference is due to the size of the sensor’s scanning areas on the two devices. Once you have installed the ievo registration software* and are ready to register new users, make sure you follow these steps to ensure effective registration using either the ievo ultimate desktop reader or the ievo micro desktop reader.
  • Page 6 Approaching the device from a ‘sitting’ position during registration will provide a different reading from that of an elevated position which may cause identification errors. For further instructions on how to enrol a user using the ievo registration software please see page 10. ievo ultimate desktop reader: Present finger to sensor...
  • Page 7 USER GUIDE Getting started with ievo biometric solutions ievo micro desktop reader: Present finger again to Once scan is complete Present finger to sensor Once scan is complete when sensor is blue. remove finger from confirm the registered remove finger to complete the process.

  • Page 8: Using The Ievo Ultimate Reader

    USER GUIDE Getting started with ievo biometric solutions 4] USING THE ievo ultimate READER Step 1: Place your finger on the sensor, which will activate via proximity detection. The sensor will glow ‘blue’ when activated. Place finger in the centre of sensor..
  • Page 9 USER GUIDE Getting started with ievo biometric solutions Present finger to sensor Present finger again to Once scan is complete Once scan is complete remove finger to when sensor is blue. remove finger from confirm the registered finger. complete the process.

  • Page 10: Using The Ievo Micro Reader

    The ievo micro scan in less that 200ms so it is essential to keep your finger still to prevent any sliding or movement that may distort the image, which could lead to recognition issues.
  • Page 11 USER GUIDE Getting started with ievo biometric solutions Once scan is complete Present finger to sensor Once scan is complete Present finger again to when sensor is blue. confirm the registered remove finger to remove finger from device. finger.

  • Page 12: Using Ievo As A Card Reader

    7] USING ievo AS A CARD READER CARD READER FUNCTION ievo fingerprint readers can be upgraded with a card reader module to allow for combined use of both biometrics data and security cards. Using the HID iCLASS SE™ reader module you will be able to utilise existing card reader systems through ievo reader units.
  • Page 13 USER GUIDE Getting started with ievo biometric solutions However you are using the card reading functions on your ievo reader, the process is the same: Present card to ievo reader’s ‘halo’. If required, present finger to the sensor on the ievo reader.

  • Page 14: Administration Guide

    USER GUIDE Getting started with ievo biometric solutions 7] ADMINISTRATION GUIDE User’s fingerprint is not being recognised? 1. Ensure that the user has a registered profile with an active fingerprint template. This can be checked through your registration software.
  • Page 15 4. The ievo reader’s ‘halo’ button is flashing white. This indicates that the ievo reader is re-establishing a connection with the ievo Control Board and should function as normal once the halo has returned to the normal blue LED light.

  • Page 16: Troubleshooting

    6. Is there excessive dirt or debris on your finger? Although ievo readers can scan through levels of dirt and debris, having a ‘clean’ finger will always increase the effectiveness of the reader.
  • Page 17 Is my fingerprint stored on a database? If so, who has access to my information? Fingerprint images are not stored. An ievo reader scans a finger and collates a range of different identifying reference points. These reference points are converted to a template and stored on an ievo Control Board.

  • Page 18: Problem Fingerprints

    9] PROBLEM FINGERPRINTS What is a ‘problem fingerprint’? While the vast majority of fingerprints can be used with ievo fingerprint readers there are a few occasions where some fingerprints can be tricky to capture. These instances usually occur when a finger has been heavily damaged causing permanent surface and subsurface skin abrasions.

  • Page 19: Data Protection

    10] DATA PROTECTION What happens when my fingerprint is scanned? When registering as a user, an ievo reader will scan your fingerprint and a connected ievo Control Board will use an extraction algorithm to identify specific features within your fingerprint called minutiae. Identified minutiae points are categorised into groups, which include line bifurcations and ridge endings amongst other data groups.
  • Page 20 An advanced algorithm is used to extract specific fingerprint data captured after a scan. This data is stored on an ievo Control Board using a unique proprietary template format. The stored template is unique to an individual and the template is only accessed for identification purposes by the ievo Control Board.

  • Page 21: Further Reading

    Behavioural characteristics are related to the pattern of behaviour of a person, including but not limited to, typing rhythm, gait, and voice. At ievo Ltd we solely focus on the fingerprint physiological classifications of biometrics as a means of authentication and identity.

  • Page 22: Technical Specifications

    128mm (H) x 93mm (W) x 93mm (D) Dimensions Flush Mount: 153mm (H) x 119mm (W) x 47mm (D/ recessed) or 45.5mm (D/visible) The ievo ultimate is approved for UK Government use by the CPNI (for details contact the CPNI) ievo micro Description Data...
  • Page 23 USER GUIDE Getting started with ievo biometric solutions ievo Interface Board Description Data ARM @ 454MHz or 528MHz Memory RAM 256MB Flash 256MB Identification speed From 400ms (depending on database size) Template Capacity 10,000 or 50,000, 1:1 or 1:N <...
  • Page 24 +39 (0) 321 90 573 - www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI SWEDEN [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
