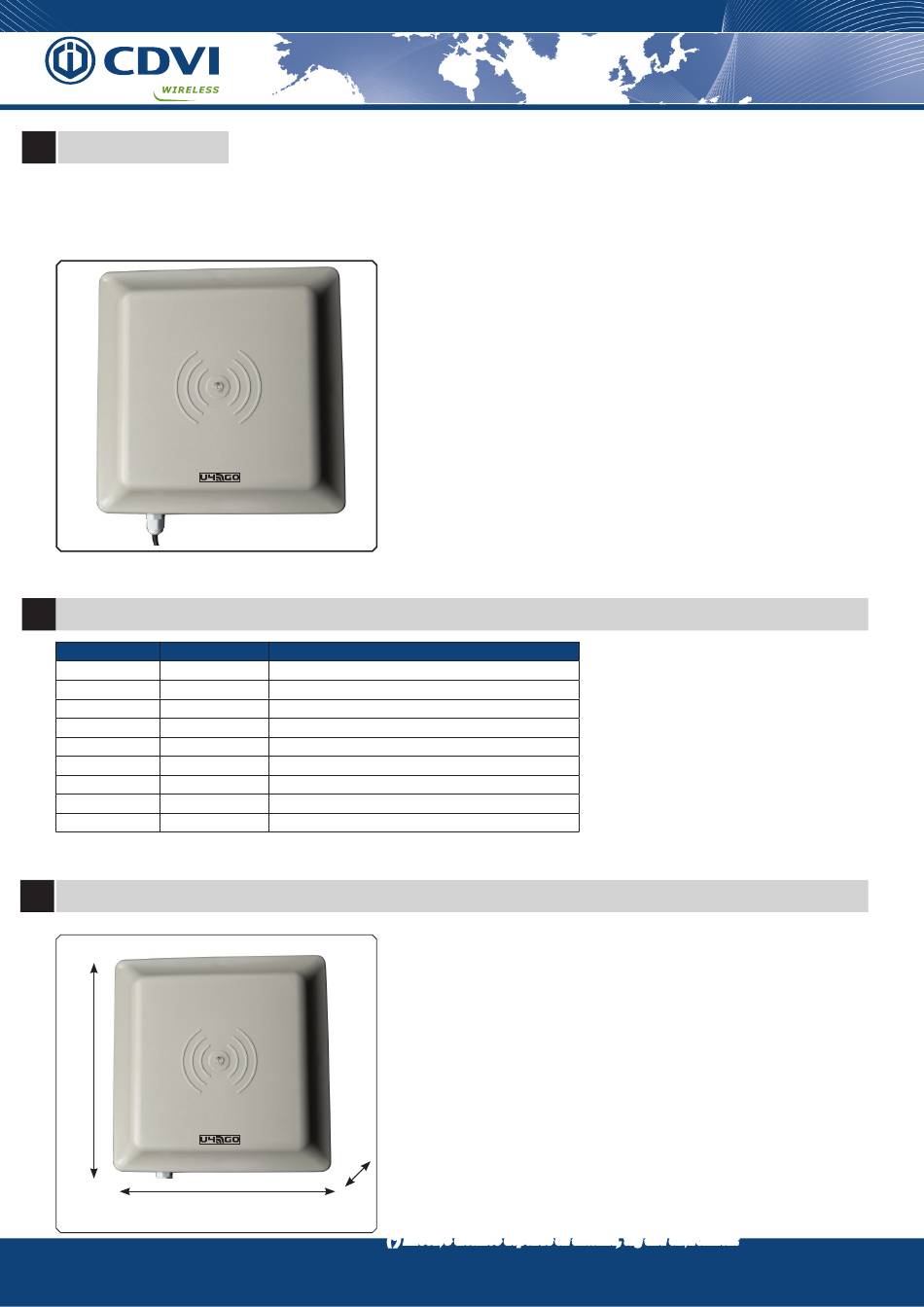

Introduction
General description
A6U49 is a middle range high performance UHF RFID integrated reader.
It supports fast tag read/write operation with high identification rate. It can widely applied in many RFID application
systems such as logistics, access control, anti-counterfeit and industrial production process control system.
U4Go Range
2
Part-name Part-Number
A10U48 F0103000125
A10U49 F0103000126
A6U48 F0103000127
A6U49 F0103000128
ATU48 F0103000129
CHU4GO F0103000031
CTU48 F0103000132
PTU48 F0103000134
RXU4GO128 F0103000137
3
Technical specifications : Reader
235
Fig. 2
The installer's choice

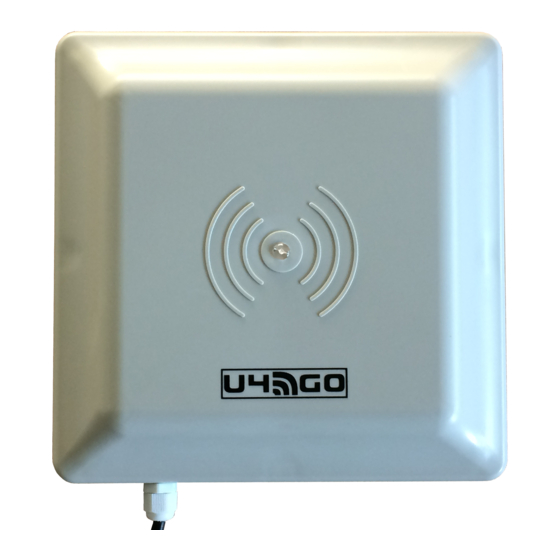

A6U49 - UHF READER U4Go
READER UHF LONG RANGE U4GO 865 MHz
READER UHF LONG RANGE U4GO 902 MHz
READER UHF 6M U4GO 865 MHz
READER UHF 6M U4GO 902 MHz
ADHESIVE TAG U4GO
CARD HOLDER U4GO
CARD TAG U4GO
CAR PLATE TAG U4GO
I/F RECEIVER U4GO - 128
57
235
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
Working principle
The reader A6U49 generates continuously a RF signal in the band
902 - 928 MHz.
When a passive tag ( card, sticker or car plate type ), carried by an user
or fixed on a vehicle enters in the RF field, generated by the reader,
a small perturbation occurs: the tag replies with an encrypted signal,
that includes its s/n and more information. These are then detected by
the reader which transmits the signal to the decrypting I/F device, that
makes them available in wiegand format or activate a relay.
The wiegand signal can be read by an Access Control System that
gives the final authorization to the user.
The reader comes with the corresponding I/F device which has a RF
receiver built-in, operating at 433,92 MHz, with a memory for 100
remote controls, type Erone 128.
The remote control can be used as an alternative means of identification
from longer range, with the very high security level given by the 128 bit
rolling code, encrypted AES128.
Description
Operating frequency range ..................902 - 928 MHz
Transmission type ...............................FHSS
Detection range in open space ............6 m (*)
Rated Power supply ( Ta=25°C) ..........9 Vdc ( 8V min,12V max)
Current consumption (average) ...........350 mA
Max current consumption ....................650 mA
Operating temperature ........................-20°C ÷ +60°C
Storage temperature ...........................-25°C ÷ +80°C
Weight .................................................900 g.
Protocol tag supported ........................ISO18000-6B, ISO18000-6C
.............................................................EPC C1G2)
RF output power ..................................up to 30 dBm ( adjustable)
Vehicle Moving Speed ........................80 Km/h
Output .................................................RS-485
Dimensions ..........................................235 x 235 x 57 mm
(*) Effective distance depends on antenna, tag and environment
