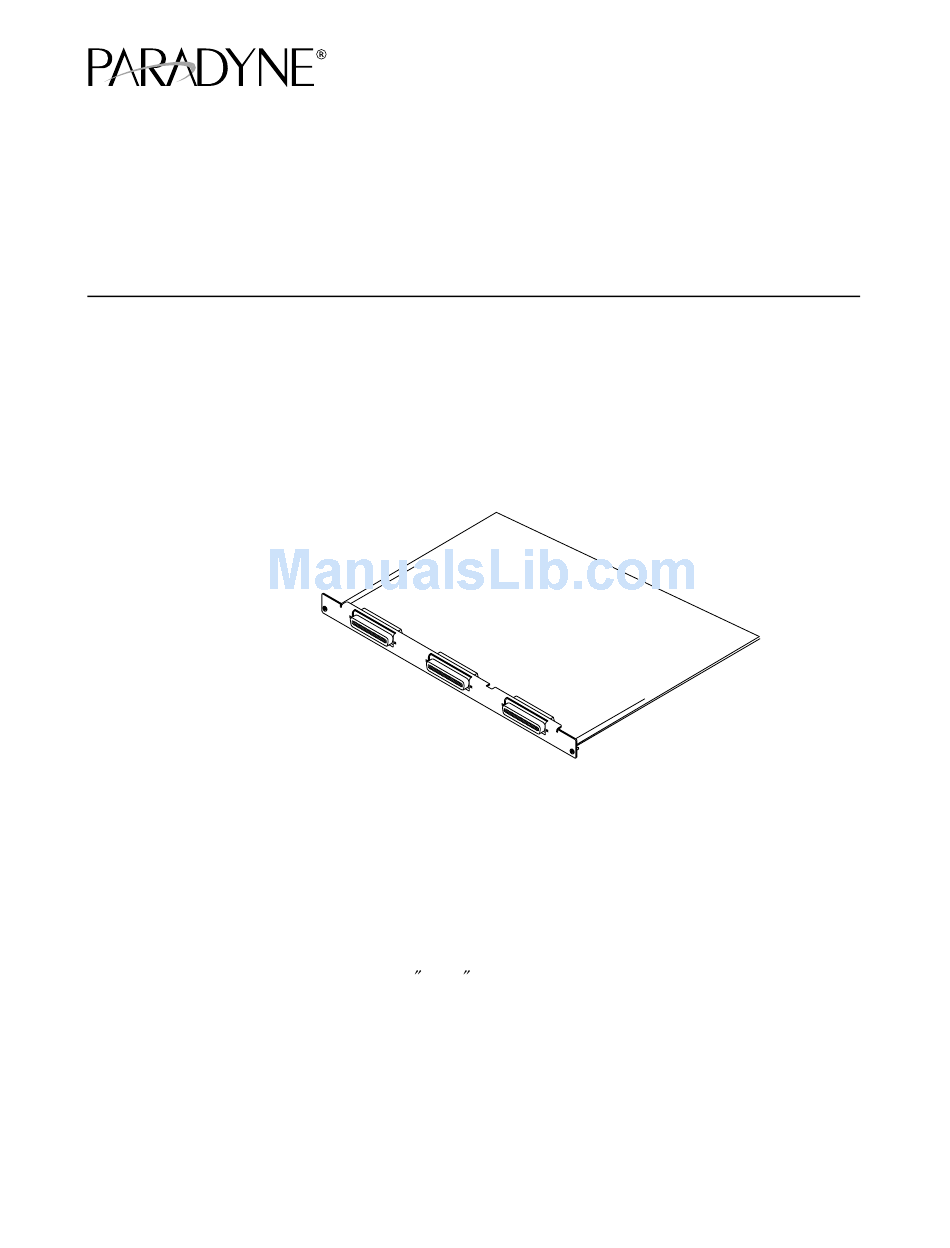

About the BitStorm 6051 POTS Splitter
The BitStorm™ system enables simultaneous high-speed digital data access and
analog voice service over the same twisted-pair telephone line. The BitStorm 6051
POTS (plain old telephone service) splitter card separates the DSL (Digital
Subscriber Line) and POTS frequencies. It provides service to up to 24 DSL ports.
POTS Splitter Chassis
The BitStorm POTS splitter card is mounted in a POTS splitter chassis. Two
chassis models are available:
T
T
6051-A2-GZ40-00
POTS
Splitter Card
DSL Interface
Loop Interface
PSTN Interface
Chassis Model 5011 – 1-slot chassis which can be placed on a tabletop or
installed in a rack.
Chassis Model 5016 – 6-slot chassis which must be installed in a commercial
EIA-standard 19 or 23 rack or cabinet.
April 2002
02-17152
1
Advertisement
Table of Contents
Related Manuals for Paradyne BitStorm 6051
Summary of Contents for Paradyne BitStorm 6051
- Page 1 About the BitStorm 6051 POTS Splitter The BitStorm™ system enables simultaneous high-speed digital data access and analog voice service over the same twisted-pair telephone line. The BitStorm 6051 POTS (plain old telephone service) splitter card separates the DSL (Digital Subscriber Line) and POTS frequencies. It provides service to up to 24 DSL ports.
-
Page 2: Product-Related Documents
BitStorm 4800, local loop, and in-building wiring Securing the cables Be sure to register your warranty at www.paradyne.com/warranty. Document Title BitStorm 4800 User’s Guide BitStorm 4800 Management Module Installation Instructions BitStorm 4800 Installation Guide Technical Manuals April 2002 BitStorm DSL 6051-A2-GZ40-00... - Page 3 A flat-blade screwdriver to install the chassis grounding wire. POTS Splitter Card Package Checklist Verify that your POTS splitter card package contains the following: BitStorm 6051 POTS splitter card Plastic bag with three of each item: — Plastic tie-wrap anchors —...
- Page 4 POTS Splitter 1-Slot Chassis NOTE: If your 1-slot 5011 POTS splitter chassis is being placed on a tabletop, install the rubber feet as shown above. Discard the rubber feet for a rack-mounted chassis. Placement of Rubber Feet 02-17153 April 2002 6051-A2-GZ40-00...
- Page 5 — Four #10-32 x 1/2 Phillips-head mounting screws — Four #12-24 x 1/2 Phillips-head mounting screws — Four #12-24 self-retaining nuts — Four black rubber feet (discard) POTS Splitter 6-Slot Chassis 6051-A2-GZ40-00 racks and two brackets for 584 mm (23 Filler Panels April 2002 racks...
- Page 6 DS L PO RT S 1-2 DS L PO Rear LIN K DO WN Gig E UP LIN Gig E Front April 2002 or 584 mm (23 POTS Splitter Card in 1-Slot Chassis BitStorm 4800 POS ITIO STA CK 02-17158 6051-A2-GZ40-00...
-
Page 7: Installing The Brackets
6-slot chassis. 1-Slot Chassis 6-Slot Chassis Center Mount Front Mount Select one of the next two procedures for chassis installation in a rack. 6051-A2-GZ40-00 or 584 mm (23 brackets on the 1-slot or 19-Inch Rack 23-Inch Rack 99-15486-02 23-Inch Rack... - Page 8 4. Loosely install the bottom screws first and then the top screws. 5. Tighten all screws firmly using a Phillips screwdriver. Repeat the process for each POTS splitter chassis. POTS splitter chassis can be mounted directly on top of each other. Front Rail Self-Retaining Screw April 2002 00-15436-02 6051-A2-GZ40-00...
- Page 9 3. Loosely install the bottom screws first and then the top screws. 4. Tighten all screws firmly with a Phillips screwdriver. Repeat the process for each POTS splitter chassis. POTS splitter chassis can be mounted directly on top of each other. 6051-A2-GZ40-00 Front Rail Screw 99-15435-01...
-
Page 10: Installing The Ground Wire
10–14 AWG. 6–14 AWG. Then the grounding lug is . . . On the rear of the chassis on the left. On the front of the chassis on the top right. POTS Splitter 6-Slot Chassis April 2002 02-17155 98-15879-01 6051-A2-GZ40-00... - Page 11 2. Slide the POTS splitter card into the chassis. 3. Tighten the quarter-turn fastener on each side of the faceplate of the POTS splitter card. POTS Splitter 6-Slot Chassis 1/4-Turn Fastener DSL Interface 6051-A2-GZ40-00 Filler Panel Loop Interface PSTN Interface 1/4-Turn Fastener April 2002...
- Page 12 RTS 25- DSL PO TS 1-24 DSL POR Rear View of BitStorm 4800 Cables You Need Connecting Block POTS 1-Slot Chassis BitStorm 4800 on page 3 for information about POTS splitter cabling. April 2002 To In-Building POTS Equipment 02-17159 6051-A2-GZ40-00...
- Page 13 — If the connector on the cable has a short screw, install the #4-40 jack screw provided into the threaded hole of the connector in the circuit card. Attach the short screw in the cable to the jack screw and tighten. Anchor Mount 6051-A2-GZ40-00 POTS Splitter Card Faceplate Long Screw...
- Page 14 3. Tighten the tie wrap and trim the excess. POTS Splitter Card Faceplate 00-15553-01 Repeat the procedure for all the interface cables. POTS Splitter 6-Slot Chassis DSL Interface Loop Interface PSTN Interface 02-17157 April 2002 6051-A2-GZ40-00...
-
Page 15: Connector Pin Numbers
Connector Pin Numbers Pin assignments are the same for all three connectors on the POTS splitter cards. 50-Position Telco Connector POTS Splitter # 6051-A2-GZ40-00 Pin # Ring Pin # Tip April 2002 Pin 1 Pin 25 Pin 26 Pin 50... -
Page 16: Technical Specifications
Approvals Safety Certifications 6-Slot 5016 Chassis Technical Specifications* Height x Width x Depth Weight (empty) Approvals Safety Certifications 6051 POTS Splitter Card Technical Specifications* Height x Width x Depth Weight Physical Environment Operating temperature Storage temperature Relative humidity Shock and vibration * Technical Specifications subject to change without notification. -
Page 17: Important Safety Instructions
European Directives: Directive 72/72/33C – Council Directive of 19 February 1973 on the harmonization of the laws of the member states relating to electrical equipment designed for use within certain voltage limits, as amended by Directive 93/68EEC. 6051-A2-GZ40-00 April 2002... -
Page 18: Warranty, Sales, Service, And Training Information
BitStorm is a trademark of Paradyne Corporation. All other products and services mentioned herein are the trademarks, service marks, registered trademarks, or registered service marks of their respective owners. Copyright © 2002 Paradyne Corporation. Printed in U.S.A. . *6051-A2-GZ40-00* April 2002 6051-A2-GZ40-00...
