Hotwirer 7034 Customer Premises POTS Splitter
Installation Instructions
Document Number 7034-A2-GN10-00
April 2000
What the POTS Splitter Does
The POTS (plain old telephone service) splitter separates the DSL (Digital Subscriber
Line) and POTS signals. A Hotwirer termination unit and telephone can function
simultaneously over the same pair of copper wires at the customer premises when a
POTS splitter is used at both ends of the local loop.

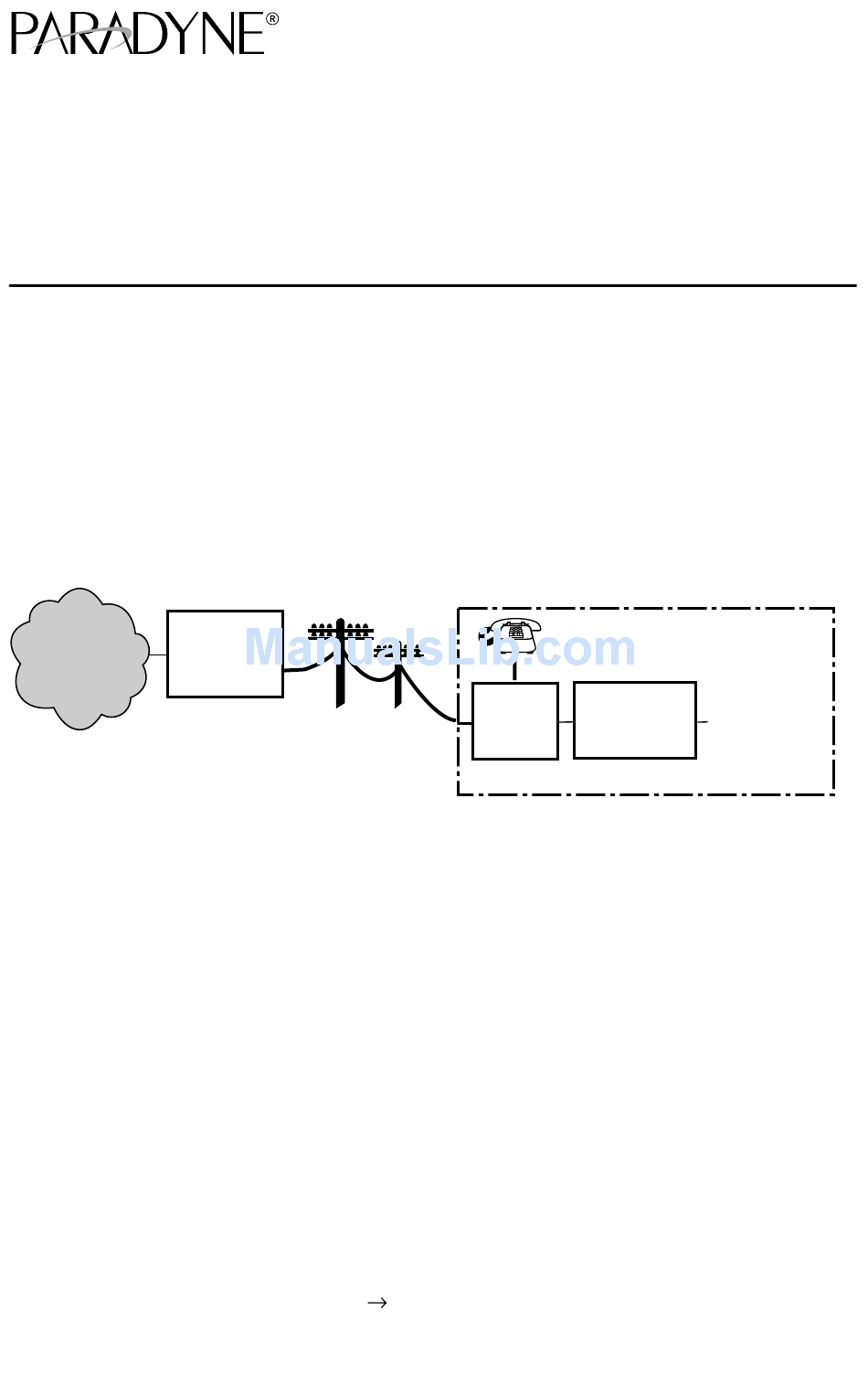

Copper pairs are run from the central office to the customer premises to create the local
loop. The local loop terminates on the customer premises.
Network
Service
Provider
(NSP)
Hotwire Documentation
For Hotwire termination unit installation and configuration information, refer to:
Document Number
7970-A2-GB20
7970-A2-GN10
Contact your sales or service representative to order additional product documentation.
Paradyne documents are also available on the World Wide Web at
www.paradyne.com. Select Library
Central
Office
(CO)
Local Loop
Document Title
Hotwire 7974, 7975, 7976, 7984, 7985, and 7986
Standalone Termination Unit User's Guide
Hotwire 7974, 7975, 7976, 7984, 7985, and 7986
Standalone Termination Unit Installation Instructions
Customer Premises (CP)
POTS
Splitter
Technical Manuals.
1
Hotwire
To End-user
Termination
Systems
Unit
00-16645
Advertisement
Table of Contents
Related Manuals for Paradyne Hotwire 7034
Summary of Contents for Paradyne Hotwire 7034
- Page 1 Hotwirer 7034 Customer Premises POTS Splitter Installation Instructions Document Number 7034-A2-GN10-00 April 2000 What the POTS Splitter Does The POTS (plain old telephone service) splitter separates the DSL (Digital Subscriber Line) and POTS signals. A Hotwirer termination unit and telephone can function simultaneously over the same pair of copper wires at the customer premises when a POTS splitter is used at both ends of the local loop.
- Page 2 — Two CAT3 or better cables with 8-pin modular connectors — One cable with 6-pin modular connectors See Installing the 7034 CP POTS Splitter on page 4. Verify that the revision level of the software in your Hotwire termination unit is P6.02.00 or above.
-
Page 3: Downloading Software
Downloading Software If you determine you require updated software, download software from the Paradyne World Wide Web site, then download it to your termination unit. " Procedure To acquire the software: 1. Request access to the Paradyne World Wide Web Subscriber Download Page from your customer support representative. - Page 4 Installing the Hotwire 7034 CP POTS Splitter The POTS splitter is made for tabletop placement. Three cables are used: From the POTS splitter to the telephone From the POTS splitter to the Hotwire termination unit From the Local Loop to the POTS splitter...
- Page 5 Hotwire 7034 CP POTS Splitter Technical Specifications Item Width x Depth x Height Weight Safety Certifications Physical Environment Operating temperature Storage temperature Relative humidity Shock and vibration Interface Connectors Technical Specifications subject to change without notification. Specification 3.63 x 5.78 x 1.52 (9.22 cm x 14.68 cm x 3.86 cm) 6.7 ounces (190.0 grams)
-
Page 6: Important Safety Instructions
Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. This product is intended to be connected to Listed/Certified telephone wiring with a minimum of 26 AWG (.4 mm) behind a Listed/Certified primary protector. 3. -
Page 7: Warranty, Sales, Service, And Training Information
Warranty, Sales, Service, and Training Information Contact your local sales representative, service representative, or distributor directly for any help needed. For additional information concerning warranty, sales, service, repair, installation, documentation, training, distributor locations, or Paradyne worldwide office locations, use one of the following methods: Internet: Visit the Paradyne World Wide Web site at www.paradyne.com.
