Hotwire 5030 POTS Splitter Customer Premises
Installation Instructions
Document Number 5030-A2-GN10-20
December 1999
What Does the Hotwire 5030 POTS Splitter Do?
The Hotwire 5030 POTS Splitter and Hotwire endpoints are components in the
Hotwire RADSL Access System. This system provides high-speed Internet or corporate
LAN access over traditional twisted-pair copper telephone wiring.
The POTS (plain old telephone service) splitter blocks out the DSL (Digital Subscriber
Line) signal and allows the POTS frequencies to pass through. At the customer
premises, the RADSL (Rate Adaptive Digital Subscriber Line) endpoint and telephone
can function simultaneously over the same pair of copper wires when a POTS splitter is
used at both ends of the local loop.

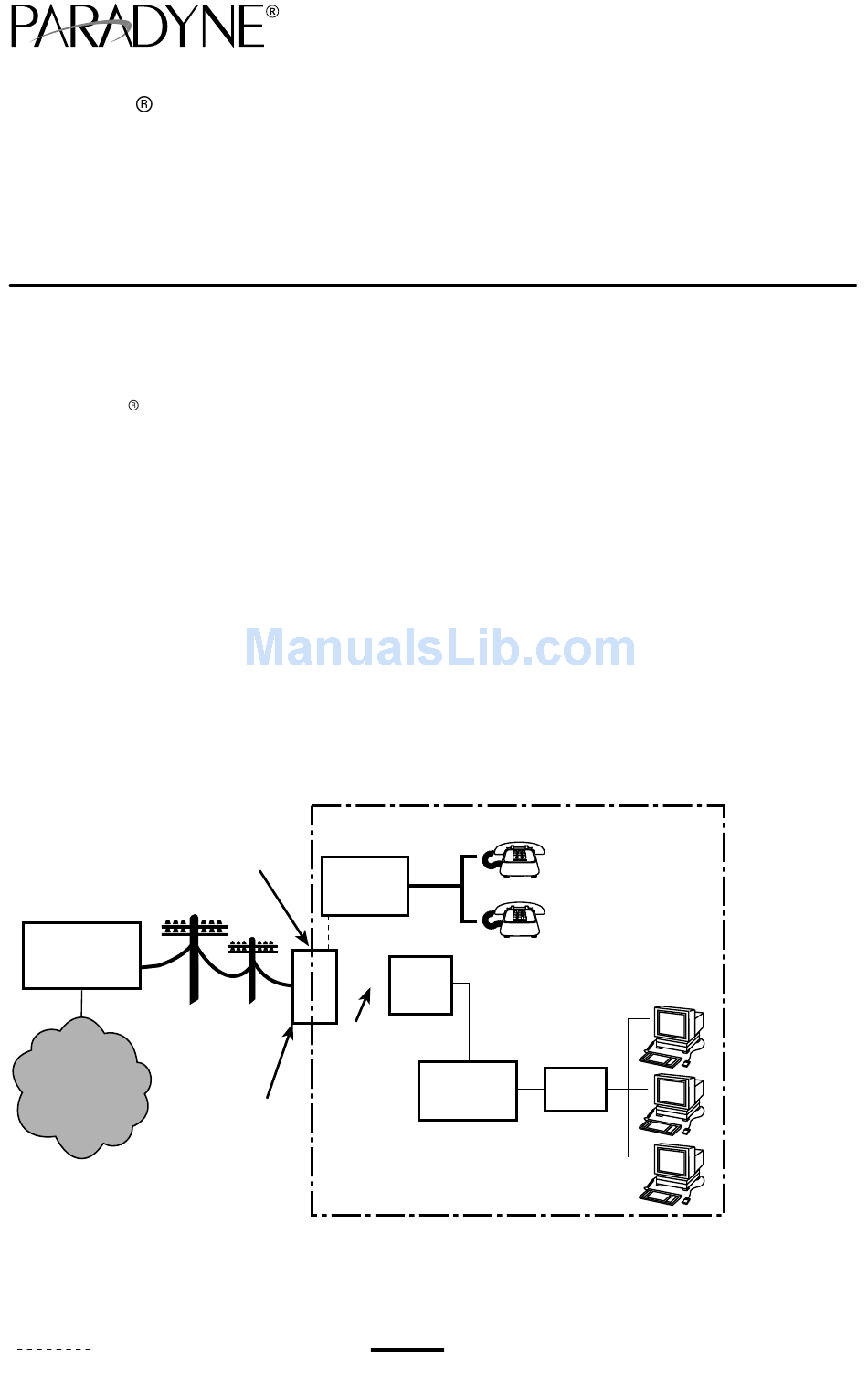

Copper pairs run from the central office to the customer premises to create the local
loop. The local loop terminates on the customer premises at the demarcation point in a
punchdown block or NID (network interface device). Wiring is connected from the
demarcation point to the customer premises POTS splitter and to the DSL jack.
Demarcation
Central
Office
Local Loop
Network
Service
Provider
DSL – Digital Subscriber Line
NID – Network Interface Device
New Wiring Connections
Point
POTS
Splitter
POTS
POTS/DSL
Punchdown
Block or NID
Customer Premises
DSL
Jack
RADSL
Endpoint
POTS – Plain Old Telephone Service
RTU – Remote Termination Unit
Existing Wiring (POTS)
1
End-user
Systems
Hub
98-16608a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5030 and is the answer not in the manual?

Questions and answers

Summary of Contents for Paradyne 5030

  • Page 1 December 1999 What Does the Hotwire 5030 POTS Splitter Do? The Hotwire 5030 POTS Splitter and Hotwire endpoints are components in the Hotwire RADSL Access System. This system provides high-speed Internet or corporate LAN access over traditional twisted-pair copper telephone wiring.
  • Page 2: Package Checklist

    Preparation Verify that: The local loop POTS is connected to the POTS/DSL network at the punchdown block or NID. New or existing unshielded twisted-pair wiring (CAT3 or better) is used with this product. The CAT3 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or 26 AWG (.4 mm).
  • Page 3 Mounting the POTS Splitter Housing The POTS splitter can be placed: On the outside of the building near the punchdown block or NID, or Inside the building. When mounted outside, the POTS splitter must be installed at or above the height of the NID, and should be a minimum of three feet above ground.
  • Page 4 Preparing the POTS Splitter Procedure 1. Unscrew the closure screw and open the housing by pressing on the lever on the right above the closure screw. 2. Remove the rubber grommet at the base of the POTS splitter. 3. Make a small diagonal cut in the rubber grommet to feed the wiring through.
  • Page 5 Installing the POTS Splitter Wiring The local loop terminates at the punchdown block or NID. Wiring must be connected from the customer premises side of the punchdown block or NID to an RJ11 jack. Typically, the punchdown block is installed in commercial locations and the NID is installed in residential locations.
  • Page 6 Green and Red are the standard pair wiring colors used in the next example for Tip T1 and Ring R1. Your wiring may differ. 3. Disconnect the existing POTS wiring to the telephone from the T1/R1 connectors on the customer premises side. 4.
  • Page 7 Reconnecting to the Local Loop Procedure 1. Feed new jumper wiring through the POTS splitter rubber grommet. Remove the insulation at the end of the wiring. 2. On the left side labeled LINE, attach red to terminal screw P1 and green to terminal screw P2.
  • Page 8 3. Locate the T1/R1 connectors on the customer premises side of the punchdown block or NID where the existing POTS wiring was removed in Step 3 on page 6. Locate the jumper pair from POTS splitter P1/P2 labeled LINE. Attach the POTS splitter wiring to the T1/R1 connectors at the NID.
  • Page 9 DSL Access Wiring Procedure 1. Attach new wiring to the T1/R1 connectors that will go to the DSL jack from the punchdown block or NID. 2. Tighten the T1/R1 terminal screws with a flat-blade screwdriver. POTS Splitter Punchdown Block or NID Central Office POTS/DSL...
  • Page 10 Hotwire 5030 POTS Splitter Technical Specifications Item Height x Width x Depth Weight Approvals FCC Part 68 Safety Certifications Physical Environment Operating temperature Storage temperature Relative humidity Shock and vibration Interface Connectors Technical Specifications subject to change without notification. Specification 6.65 x 5.44 x 2.25 (16.89 cm x 13.82 cm x 5.72 cm)
  • Page 11: Important Safety Instructions

    Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. This product is intended to be connected to Listed/Certified telephone wiring with a minimum of 24 AWG (.5 mm) behind a Listed/Certified primary protector. 3.
  • Page 12: Warranty, Sales, Service, And Training Information

    If the Model 5030 Telephone Line Filter causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible.
