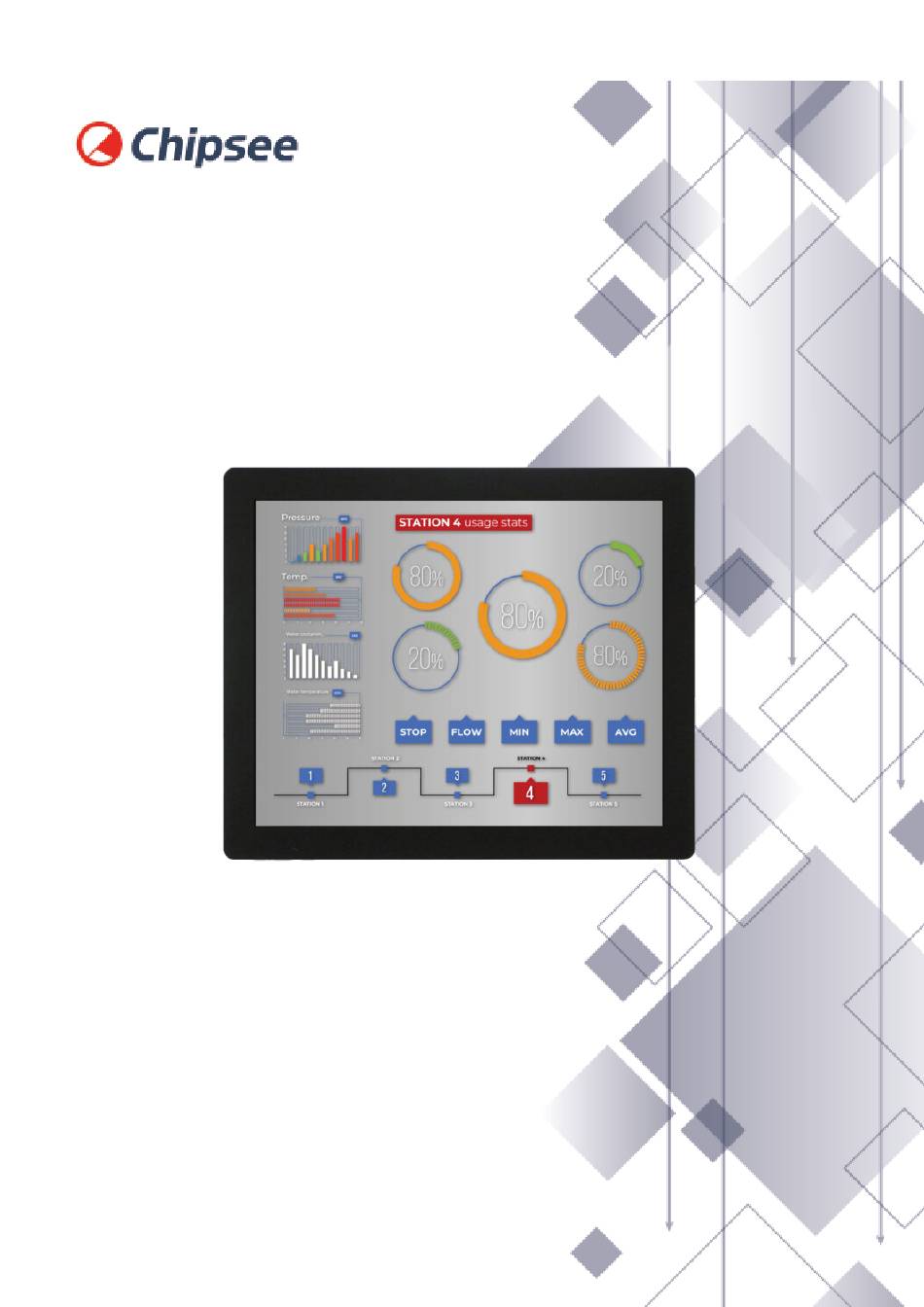

- Page 1 Industrial PC PPC-A9-170-C PN: CS12102F170 Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
Contents PPC-A9-170-C 1. Product Overview 2. Ordering Options 2.1. Operating System 2.2. Optional Features 3. Hardware Features 4. Power Input 5. Touch Screen 6. Connectivity 6.1. DB9 Connectors 6.2. USB Connectors 6.3. LAN Connectors 6.4. WiFi & BT Module 6.5. 4G/LTE Module 6.6. -
Page 3: Ppc-A9-170-C
PPC-A9-170-C PPC-A9-170-C Front View Chipsee Page 3 of 25... - Page 4 PPC-A9-170-C Rear View Chipsee Page 4 of 25...
- Page 5 PPC-A9-170-C Side View 1 Chipsee Page 5 of 25...
- Page 6 PPC-A9-170-C Side View 2 Chipsee Page 6 of 25...
-
Page 7: Product Overview
PPC-A9-170-C Product Overview Product Overview ® The Cortex -A9 series PPC-A9-170-C (PN: CS12102F170) is a rugged, high-quality industrial panel PC. It features a 17” multi-point capacitive touch screen with a resolution of 1280 x 1024 pixels. Key Applications • Human Machine Interface HMI •... -
Page 8: Ordering Options
Software Documentation section provides a detailed instruction how to install different OS on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 9: Optional Features
Optional Features Optional Features The PPC-A9-170-C Industrial Panel PC does not include 4G/LTE module by default. The module is optional and can be selected at the Chipsee store during the ordering process. Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. -
Page 10: Hardware Features
PPC-A9-170-C Hardware Features Hardware Features The PPC-A9-170-C Industrial Panel PC offers a board range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. PPC-A9-170-C ®... - Page 11 This product has 5 x UART channels in total. The default configuration is 4 x RS232 and 1 x UART for WiFi/BT module. UART can be swapped between RS232 and RS485 modes easily, so if you need different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com...
-
Page 12: Power Input
Power Input Power Input The PPC-A9-170-C Industrial Panel PC can be powered by a wide range of input voltages: From 15V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below. -
Page 13: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A9-170-C Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 14: Connectivity
Connectivity Connectivity There are many connectivity options available on the PPC-A9-170-C industrial PC. It has 4 x USB 2.0 HOST, 1 x USB OTG (can be customized to Host or OTG), 1 x Channel 1000Mbps LAN (RJ45) Ethernet connector supporting up to 1 Gbps, and 4 x DB9 connectors. - Page 15 PPC-A9-170-C USB Connectors Figure 95: USB OTG Connector Chipsee Page 15 of 25...
-
Page 16: Lan Connectors
PPC-A9-170-C LAN Connectors LAN Connectors LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput. Figure 96: RJ45 LAN Connector Note Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). -
Page 17: Wifi & Bt Module
PPC-A9-170-C WiFi & BT Module WiFi & BT Module The PPC-A9-170-C Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/ BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN). -
Page 18: 4G/Lte Module
Figure 99: SIM Card Holder SIM Card Direction Attention The product does not come shipped with the 4G/LTE module by default. Also, there is no software driver for any kind of 4G/LTE module on Chipsee store. Chipsee Page 18 of 25... -
Page 19: Expansion Port
PPC-A9-170-C Expansion Port Expansion Port The PPC-A9-170-C Industrial Panel PC has 1 x Expansion Port as shown on the figure below. It is an optional 10 Pin 3.81mm GPIO Connector. This connector has connected to isolated GPIO signals. Figure 100: Expansion Port... - Page 20 PPC-A9-170-C Expansion Port GPIO Connector Pin Definition: Pin Number Definition Description Pin 1 VCC_ISO Isolated Power Input (+5V – +24V) Pin 2 GND_ISO Isolated Ground Pin 3 OUT1 Isolated Output 1 Pin 4 OUT2 Isolated Output 2 Pin 5 OUT3...
-
Page 21: Audio Connectors
Audio Connectors Audio Connectors The PPC-A9-170-C Industrial Panel PC features some audio peripherals, as well. It has 1 x 3.5mm audio input jack and 1 x 3.5mm audio output jack. The pink connector is the audio input jack (line-in) and the blue connector is the audio output jack (line-out, typically around -10 dBV) as shown on the figure below. -
Page 22: Hdmi Connector
PPC-A9-170-C HDMI Connector HDMI Connector The PPC-A9-170-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software. Figure 102: HDMI Connector Chipsee... -
Page 23: Boot Dip Switch
Boot DIP Switch Boot DIP Switch The PPC-A9-170-C Industrial Panel PC supports boot from SD card. If you want to re-flash the Operating System (OS), you can use the TF card for that purpose, combined with the DIP switch settings as illustrated in the figure below. -
Page 24: Measurements And Mounting Procedure
The outer mechanical dimensions of PPC-A9-170-C are 392 x 330 x 62mm (W x L x H). The PPC-A9-170-C Industrial Panel PC can be mounted with 8 x M4 screws or 4 x M4 screws using the VESA (100x100cm or 75x75cm) and Panel mounting methods, enabling simplified installation onto any standard mounting fixture. -
Page 25: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
