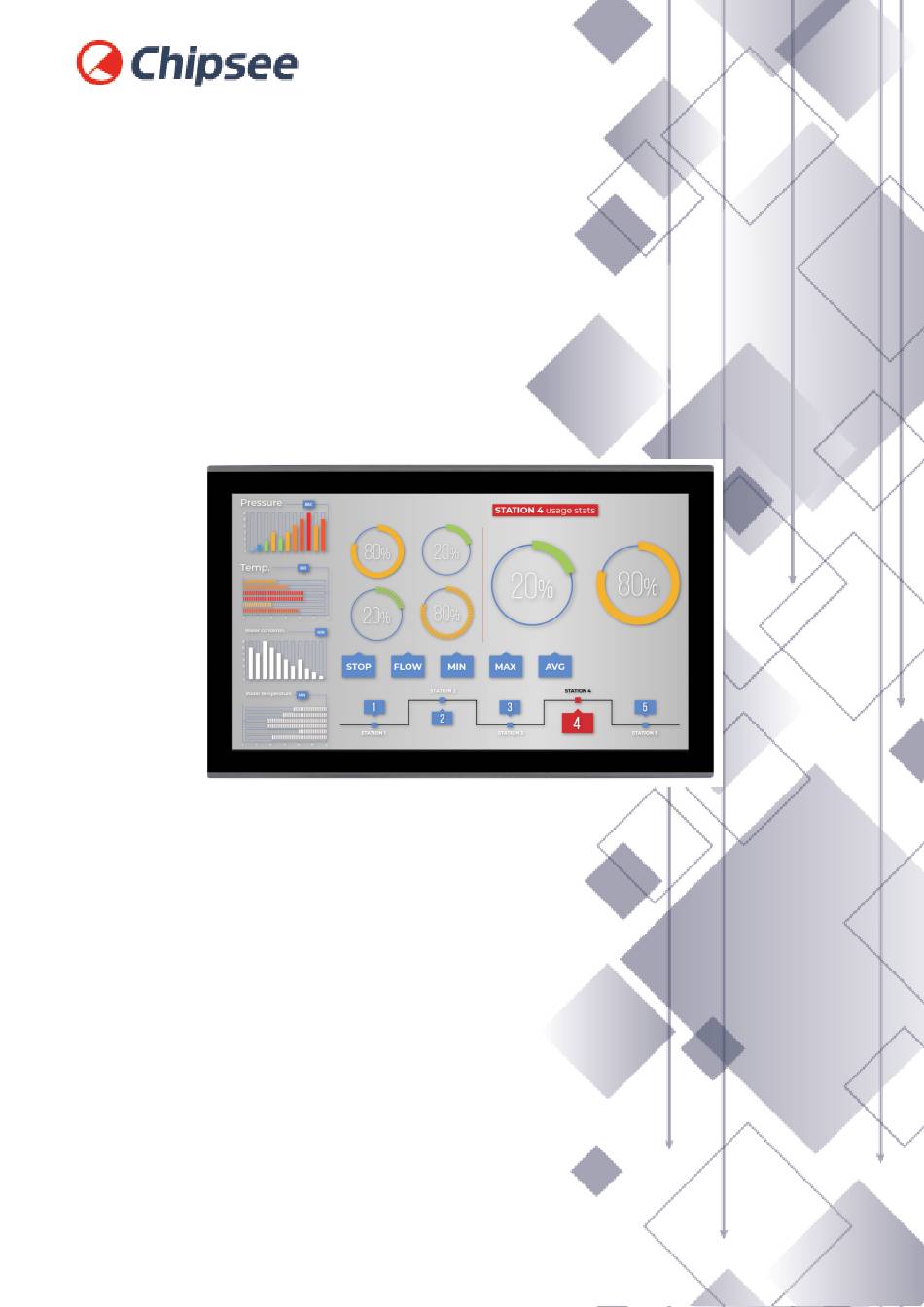

- Page 1 Industrial PC PPC-A72-215-P PN: CS19108R215P2 Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-A72-215-P 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232+RS485+CAN+GPIO Connector 1.6.2. USB Connectors 1.6.3. LAN Connectors 1.6.4. WiFi & BT Module 1.6.5. -
Page 3: Ppc-A72-215-P
PPC-A72-215-P PPC-A72-215-P Front View Rear View Side View 1 Chipsee Page 3 of 16... -
Page 4: Product Overview
Side View 2 Product Overview ® The Cortex -A72/53 series PPC-A72-215-P (PN: CS19108R215P2) is a high-quality industrial panel PC. It features a 21.5” ten-point capacitive touch screen with a resolution of 1920 x 1080 pixels and brightness of 250 cd/m . -
Page 5: Ordering Options
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 6: Hardware Features
Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product. Hardware Features The PPC-A72-215-P Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability to meet future needs. -
Page 7: Power Input
RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com Power Input The PPC-A72-215-P Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. Power Input Note that the “+”... -
Page 8: Connectivity
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A72-215-P Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. - Page 9 PPC-A72-215-P RS232+RS485+CAN+GPIO Connector Isolated GPIO reduced schematic The table below offers more detailed description of every pin and its definition: RS232 / RS485 / CAN / GPIO Pin Definition: Pin Number Definition Description Pin 1 CAN1_H CAN H signal Pin 2...
-
Page 10: Usb Connectors
PPC-A72-215-P USB Connectors RS232 / RS485 / CAN / GPIO Pin Definition: Pin 5 RS485_4- USB UART4, RS485 -(B) signal Pin 6 Isolated Input 4 Pin 7 RS485_4+ USB UART4, RS485 +(A) signal Pin 8 Isolated Input 3 Pin 9... -
Page 11: Lan Connectors
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). WiFi & BT Module The PPC-A72-215-P Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/ BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN). -
Page 12: 4G/Lte Module
WiFi+BT Antenna SMA 4G/LTE Module The PPC-A72-215-P Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A72-215-P. SIM card does NOT support hot plug. -
Page 13: Tf Card Slot
Attention The product does not come shipped with the 4G/LTE module by default. TF Card Slot The PPC-A72-215-P Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up to 128GB of memory. Chipsee Page 13 of 16... -
Page 14: Audio Connectors
The product does not come shipped with the TF Card by default. Audio Connectors The PPC-A72-215-P Industrial Panel PC features some audio peripherals. It has a 3.5mm audio input/output jack, an internal speaker, as well as a small buzzer. Audio Connector (enclosed PC version) ... -
Page 15: Power Button
Please make sure the display is not exposed to high pressure when mounting into an enclosure. You can find detailed information about mounting in the Mount IPC Guide. Mechanical Specifications For PPC-A72-215-P, the outer mechanical dimensions are 535 x 331 × 52.5mm (W x L x H). Mechanical Drawing (PPC-A72-215-P) Chipsee Page 15 of 16... -
Page 16: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
