1823 VoIP Gateway
User's Guide
Document Number 1823-A2-GB20-00
May 2005

Advertisement

Table of Contents
loading

Related Manuals for Paradyne 1823

Summary of Contents for Paradyne 1823

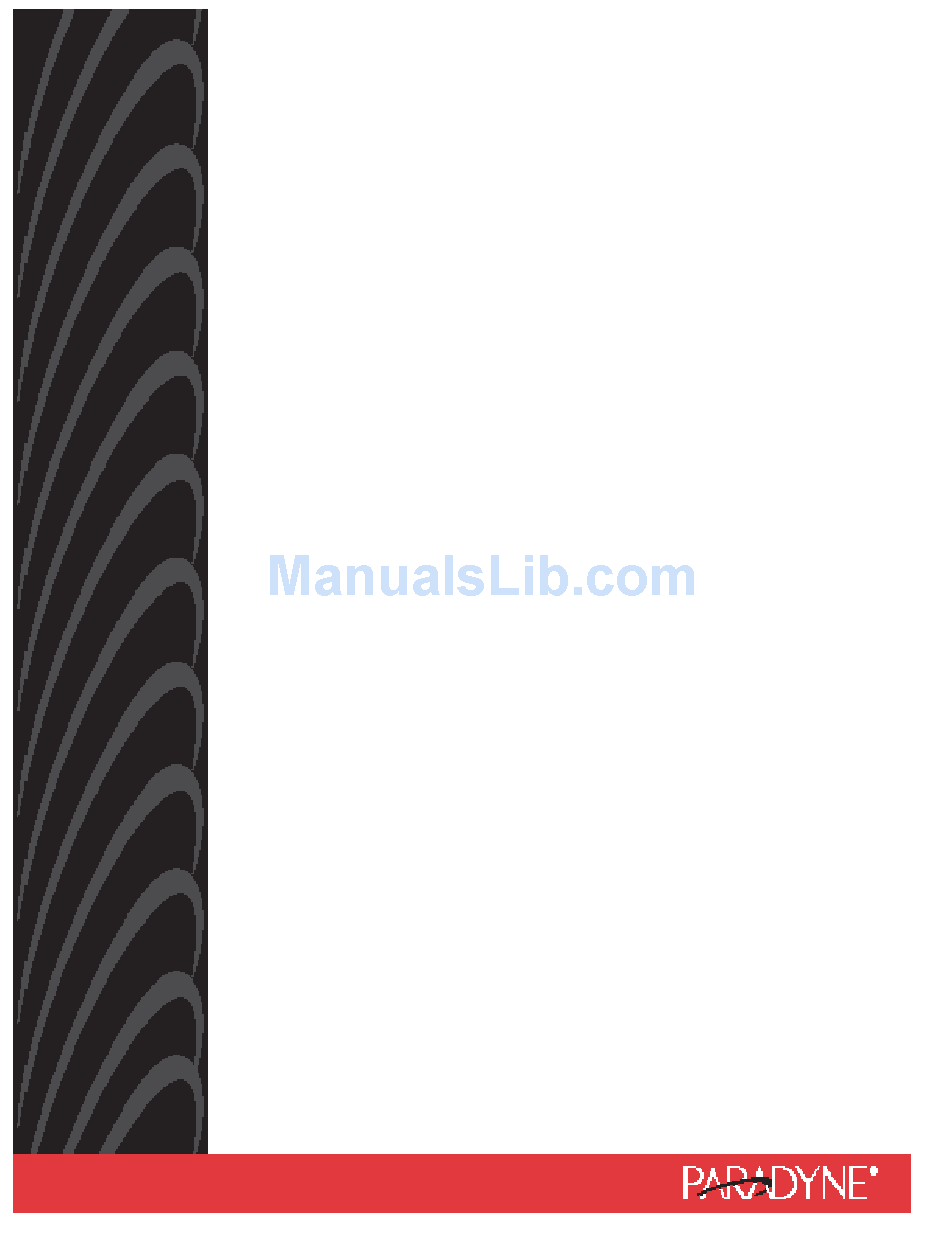

  • Page 1 1823 VoIP Gateway User’s Guide Document Number 1823-A2-GB20-00 May 2005...
  • Page 2 1823 VoIP Gateway User’s Guide Copyright 2005 Paradyne Corporation. All rights reserved. Notice This publication is protected by federal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Paradyne Corporation, 8545 126th Ave.
  • Page 3 — Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. — Do not use the telephone to report a gas leak in the vicinity of the leak. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...
  • Page 4 1823 VoIP Gateway User’s Guide CE Marking When the product is marked with the CE mark on the equipment label, a supporting Declaration of Conformity may be downloaded from the Paradyne World Wide Web site at www.paradyne.com. Select Support -> Technical Manuals -> Declarations of Conformity.

  • Page 5: Table Of Contents

    ONFIGURATION 6.1.1 Local ...33 6.1.2 PhoneList ...35 6.1.3 Remote ...36 6.1.4 CallForward ...38 6.1.5 Dial Plan...40 CHAPTER 7 SOFTWARE UPGRADE VIA FTP ...42 APPENDIX A: PIN ASSIGNMENTS AND POWER ADAPTERS ...44 1823-A2-GB20-00 ...10 May 2005 1823 VoIP Gateway User’s Guide...
  • Page 6 1823 VoIP Gateway User’s Guide APPENDIX B: PHONE OPERATIONS ...45 ...45 ORMAL ONSULTATION ...45 ESUME ...45 WITCH ...45 AITING ...45 RANSFER CLIR (C ALLER ESTRICTION CFU (C ORWARD NCONDITIONAL APPENDIX C: GLOSSARY...46 ...45 ) ...45 ) ...45 May 2005 1823-A2-GB20-00...

  • Page 7: Chapter 1 Introduction

    Your PCs connected to the gateway do not even have to be turned on for you to make calls. The 1823 solves your entire network and telephony needs in one integrated unit, which reduces space requirements and the cost of hardware and cabling.

  • Page 8: Application

    1823 VoIP Gateway User’s Guide 1.3 Application The following illustration shows a typical application for the 1823 VoIP Gateway. May 2005 1823-A2-GB20-00...

  • Page 9: Chapter 2 Hardware Installation

    PHONE LED, which will turn off and then on again as the gateway restarts. 2.2 Cabling To install the 1823 VoIP Gateway: Connect the power adapter to the POWER jack of the gateway, and then plug the power adapter into an AC wall outlet.

  • Page 10: Front Panel Led Indicators

    1823 VoIP Gateway User’s Guide 2.3 Front Panel LED Indicators Color Green POWER Green PHONE1 PHONE2 LAN1 Green LAN2 LAN3 Green Green Mode Function The gateway is powered up. The gateway is powered down. Phone is off-hook. Phone is on-hook.

  • Page 11: Chapter 3 Login Via The Web Browser

    Click the Settings tab Adjust the Screen Resolution as needed A unique default user account is assigned with user name root and password 1234. You can change the default password once you are logged on. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 12: Ip Address

    1823 VoIP Gateway User’s Guide 3.1 IP Address To log on to the device using a web browser, your workstation and the device should both be on the same network segment. The default IP address of the gateway is 192.168.1.101.

  • Page 13: Login Procedure

    OK. The default USER Name is root, and password 1234. The user name and password are case-sensitive. 4. After you log in, the main menu appears. The menu lists a number of links. These have three categories: Basic, Advanced, and VoIP. 1823-A2-GB20-00 http://192.168.1.101 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 14: Chapter 4 Basic Configuration

    1823 VoIP Gateway User’s Guide Chapter 4 Basic Configuration From the Basic menu bar, you can change passwords, configure the WAN/LAN interfaces, set up routing, save settings, reboot the device, and retrieve the factory default settings. 4.1 Version To verify the software version of your gateway, click on Version under the Basic menu. The information will display as in the screenshot below.

  • Page 15: Change The Password

    Enter a password for the new user. The password is case sensitive. Services Specify authorization for CLI, HTTP and FTP services. Permissions Select Ordinary or Administration user permission. Administration authority is required to change the configuration. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...
  • Page 16 1823 VoIP Gateway User’s Guide May 2005 1823-A2-GB20-00...

  • Page 17: Delete User

    4.2.3 Delete User To delete a User from the list of users, complete the following steps: 1. Click on Access Control under the Basic menu. 2. Choose a User entry, and click on Delete. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 18: Wan Setup

    1823 VoIP Gateway User’s Guide 4.3 WAN Setup To set WAN parameters, click on WAN Setup under the Basic menu. The following information appears: Click on the WAN Setup button to change your settings. May 2005 1823-A2-GB20-00...
  • Page 19 DHCP mode: Use this setting if you will obtain an IP address from your ISP automatically, using DHCP protocol. PPPoE mode: Use this setting if your ISP requres PPPoE authentication to connect to their service. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 20: Static Ip Address

    1823 VoIP Gateway User’s Guide 4.3.1 Static IP address Select WAN Setup in the Basic Menu. Then select Static IP address (meaning your ISP assigns you a static IP address, or the IP address of the host needs to be manually configured in your network) and click on Next.

  • Page 21: Dhcp Mode

    1823 VoIP Gateway User’s Guide 4.3.2 DHCP Mode Select WAN Setup in the Basic Menu. Then, select DHCP mode (the gateway obtains an IP address from the ISP automatically via DHCP protocol) and click on Next. The following screen appears.

  • Page 22: Lan Ip Address

    1823 VoIP Gateway User’s Guide 4.4 LAN IP Address The default LAN IP address is 192.168.1.101. Click on LAN Setup from the menu bar to configure the LAN IP address and subnet mask. The following screen appears. Enter or select the parameters as explained below. Click on Apply to submit the settings.
  • Page 23 Click on Yes to save the configuration and reboot the system. Click on No to change the configuration only. The Web configuration will be interrupted. Use the new IP address to login (regardless of which button you clicked on). 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 24: Save

    1823 VoIP Gateway User’s Guide 4.5 Save To save the settings to flash memory, click on Save & Reboot from the menu bar. In the main pane, click on Save. 4.6 Erase To erase the settings and reset to the original factory defaults, click on Erase on the menu bar. In the main pane of the following display, click Erase.

  • Page 25: Reboot

    1823 VoIP Gateway User’s Guide 4.7 Reboot To reboot the gateway, click on Reboot from the menu bar. In the main pane, click on Reboot. 1823-A2-GB20-00 May 2005...

  • Page 26: Chapter 5 Advanced Configuration

    1823 VoIP Gateway User’s Guide Chapter 5 Advanced Configuration From the Advanced Menu you can configure VoIP QOS, NAT Port Redirect, System Statistics, and issue a Ping. 5.1 VoIP QOS VoIP QOS is a function that allows you to set aside bandwidth for voice communication.
  • Page 27 Local Port From/Local Port To 1823-A2-GB20-00 Description Type in the public port for remote user accessing. The valid range is 1–65535. TCP or UDP. Type in the local IP address Type in the Local Port. May 2005 1823 VoIP Gateway User’s Guide...

  • Page 28: System Statistics

    1823 VoIP Gateway User’s Guide For example, if you want to add a virtual server for FTP, set parameter as follow: Parameter Public Port From /Public Port To Protocol Local Address Local Port From/Local Port To 5.3 System Statistics To view the system statistics, click on the System Statistics button located near the bottom of the menu bar.

  • Page 29: Tcp/Ip

    5.3.2 TCP/IP To view TCP/IP statistics, click on the TCP-IP tab at the top of the System Statistics page. The TCP-IP page displays the IP statistics, UDP statistics, TCP statistics, and ICMP statistics. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 30: Dhcp-Lease

    1823 VoIP Gateway User’s Guide 5.3.3 DHCP-Lease Under the DHCP-Lease tab, information regarding MAC Address mapping to Lease IP addresses is displayed. 5.4 Ping To access the Ping screen, click on the Ping button, which is located under the Advanced menu bar. This screen performs the ping test.
  • Page 31 The number of packets that were transmitted. The number of packets that were received. The percentage of transmitted and received packets that were lost. The fastest round-trip time, in milliseconds. The slowest round-trip time, in milliseconds. May 2005 1823 VoIP Gateway User’s Guide...

  • Page 32: Chapter 6 Voip

    1823 VoIP Gateway User’s Guide Chapter 6 VoIP 6.1 SIP Configuration SIP, the Session Initiation Protocol, is a signaling protocol for Internet conferencing, telephony, presence, events notification, and instant messaging. It is the Internet Engineering Task Force's (IETF's) standard for multimedia conferencing over IP. It is designed to address the functions of signaling and session management within a packet telephony network.

  • Page 33: Local

    1823 VoIP Gateway User’s Guide 6.1.1 Local The Local tab configures the local terminal parameters. The page displays the SIP Configuration List. To configure the local parameters, click on the Config button or Modify button. The Config button changes all the local parameters based on the default settings. The Modify button configures the parameters for the selected part.
  • Page 34 1823 VoIP Gateway User’s Guide Host Info Modification This section configures the SIP host parameters: Parameter Description Interface Choose an interface that the SIP host will transmit /receive the SIP messages. The WAN interface is mandatory and there are no other selectable options.

  • Page 35: Phonelist

    Expire The time period the user’s registration is valid with the Registrar/Proxy Server. The default value is 120 seconds. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 36: Remote

    1823 VoIP Gateway User’s Guide Parameter Description Qvalue Enter a value between 0 and 1 for registering with the proxy (in case the same username is registered from a different location). Decimals are accepted, such as 0.3. In general, a larger number has higher priority for the proxy to connect the call.
  • Page 37 ID function. It is for identification purposes only, and can be used to hide the actual user name. New buddy entries can be added using the Add button. After entering the parameters, click on Add to submit the settings. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 38: Callforward

    1823 VoIP Gateway User’s Guide Modify Select the entry by clicking on its Select field, then click on Modify. After changing the parameters, click on Modify to submit the settings. Delete Select the entry by clicking it in the Select field and click Delete.
  • Page 39 Choose YES if the phone will be forwarded. Choose NO if the phone will not be forwarded. Fwd Uncond Choose YES if the phone will be forwarded immediately. Choose NO if the phone will not be forwarded immediately. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 40: Dial Plan

    1823 VoIP Gateway User’s Guide 6.1.5 Dial Plan Under this tab you can modify the method used to filter phone numbers. Click on Add to switch to Add Dial Plan page. Click Add after you enter all parameter to submit your settings.
  • Page 41 The number of prefix you want to delete. Insert_digit Type in the prefix you want to insert. Delete Select the entry by clicking it in the Select field, then click on Delete. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 42: Chapter 7 Software Upgrade Via Ftp

    1823 VoIP Gateway User’s Guide Chapter 7 Software Upgrade via FTP Follow the steps below to upgrade the firmware version of the gateway via FTP. The procedures below use IP address 192.168.1.101 for illustration. This is the default address of the gateway.
  • Page 43 1823 VoIP Gateway User’s Guide STEP 9: After you see the message Hash mark printing, type: put <filename.bin> app Example: put firmware app STEP 10: After a moment, the file should begin transferring. When you see the message Transfer complete, the upgrade process is complete.

  • Page 44: Appendix A: Pin Assignments And Power Adapters

    1823 VoIP Gateway User’s Guide Appendix A: Pin Assignments and Power Adapters Ethernet Port Specification (RJ45) All Ethernet ports support 10/100BaseT, half and full duplex, auto-negotiation, and auto-crossover. Pin number Definition Transmit data+ Transmit data– Receive data+ Power Adaptor Specifications...

  • Page 45: Appendix B: Phone Operations

    CFU (Call Forward Unconditional) This feature allows users to forward all their calls. By pressing *21* and entering a valid number followed by # invokes the CFU. Press #21# to cancel the CFU. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...

  • Page 46: Appendix C: Glossary

    1823 VoIP Gateway User’s Guide Appendix C: GLOSSARY 100BaseT: A 100 Mbps Ethernet standard that uses twisted-pair wiring. 10BaseT: A 10 Mbps Ethernet standard that uses twisted-pair wiring. Arp: Address Resolution Protocol. Address: The symbol (usually numeric) identifying an interface attached to a network.
  • Page 47 Password Authentication Protocol. PPP protocol that ensures authentication of the connection between two devices. PAT: Port Address Translation is a form of NAT that maps multiple Private IP addresses to a single Public IP address. 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...
  • Page 48 1823 VoIP Gateway User’s Guide Ping: An internet utility signal sent to check the accessibility of a device. automatically without requiring the user to turn off the system during installation. Point-to-point connection: Any connection with only two endpoints. A dedicated data link that connects only two stations.
  • Page 49 Virtual Private Network. A network implemented over a public network that is made “private” by use of encryption. WAN: Wide area network. A communications network that connects geographically separated areas (Compare with LAN). 1823-A2-GB20-00 May 2005 1823 VoIP Gateway User’s Guide...
