INST.No.INE-905A
Thank you for purchasing [KR Screen Designer]. Understand the software properly and read this instruction
manual beforehand in order to avoid any troubles.
KR Screen Designer
【General】
Instruction Manual
- For the persons doing instrumentation, installation and sales -
Be sure to handover this instruction manual to the persons using the
software.
- For the users of the software -
This instruction manual is necessary for maintenance. Preserve it
until you scrap the software and also be sure to write down the
setting contents and store it.

Advertisement

Table of Contents
loading
Need help?

Need help?

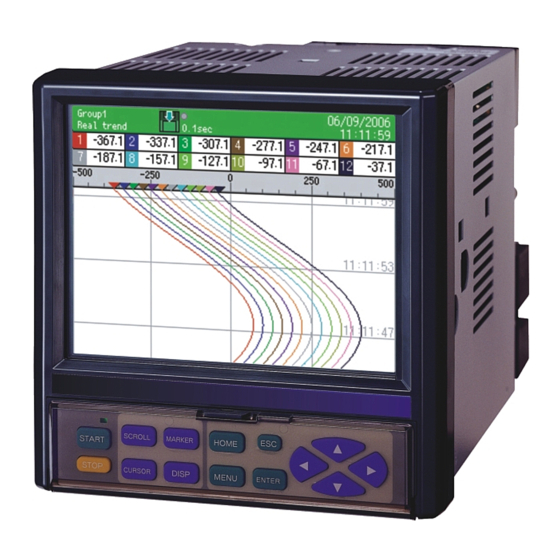

Do you have a question about the KR2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Chino KR2000

Summary of Contents for Chino KR2000

  • Page 1 INST.No.INE-905A KR Screen Designer 【General】 Instruction Manual Thank you for purchasing [KR Screen Designer]. Understand the software properly and read this instruction manual beforehand in order to avoid any troubles. - For the persons doing instrumentation, installation and sales - Be sure to handover this instruction manual to the persons using the software.

  • Page 2: Introduction

    CHINO is not responsible for your damage or loss whatsoever caused by the failure of this software. 8. Support CHINO may support about the software only, if it is asked. However, if it is past more than one year after the purchase, this support may be charged. 9. Disclaimer CHINO is not liable for destruction caused by operation of this software.
  • Page 3 4. CHINO is not responsible for any operation results of this software. ･ Microsoft, Windows and .NET Framework are trademarks of Microsoft Corporation and the related company.

  • Page 4: Table Of Contents

    [KR Screen Designer] Instruction Manual Table of Contents Introduction ................................... 1 Table of Contents ..................................3 1 Before use ........................4 1-1 Checking Before Use ..............................4 1-1-1 Appearance check ................................4 1-1-2 Model code and its location ............................... 4 2 System Requirement ....................

  • Page 5: Before Use

    After opening the package of this software, be sure to check the following before use. If you have found any problems, please contact the dealer where you purchased the product or the nearest sales office of CHINO. Request 1. Be careful not to drop the software when taking it out of the package.

  • Page 6: System Requirement

    Screen resolution 1280 × 800 or more Printer Compatible with Windows Mouse Compatible with Windows Keyboard Compatible with Windows Target instrument KR2000/ KR3000/ KR2S/ KR3S Note that required system and hard disc free space may depend on the system Note environment. - 5 -...

  • Page 7: How To Setup

    [KR Screen Designer] Instruction Manual 3 How to Setup 3-1 Installation 3-1-1 New Installation Install the software from the CD-ROM to a PC before use. Perform following procedures for installation. <Procedures> (1) Insert the CD-ROM. Start Windows, and then insert the CD-ROM into a CD-ROM drive. The menu screen is started automatically.
  • Page 8 [KR Screen Designer] Instruction Manual (4) Click [Next] button. [KR Screen Designer Setup Wizard] screen is started. Click [Next] button. (5) Select the Installation Folder. Select installation destination folder. Normally, click [Next] button as it is, yet if you wish to specify the folder destination, click [Browse…] button to select user.

  • Page 9: Installation At Upgrade

    [KR Screen Designer] Instruction Manual (7) Installation Start. The installation is started. Progress bar that indicates installation appears. Wait until the installation is completed. (8) Installation Complete. [Installation Complete] screen appears. Click [Close] button to finish. When the installation is completed, [KR ScreenDesigner] short-cut is placed on the desktop.

  • Page 10: Uninstallation

    [KR Screen Designer] Instruction Manual 3-2 Uninstallation This section describes how to delete the software from the hard disk. Before starting the uninstallation, exit from all the programs related to this software. <Procedures> (1) Open the Control Panel. Click in following order [Start] → [Control Panel].
  • Page 11 Windows Explorer. The location of the folder is shown in the table below. C:¥Users¥[Name of the User]¥AppData¥Roaming¥CHINO¥KR ScreenDesigner AppData is a hidden folder. Hidden folder is usually set not to be displayed. Refer to the user's manual of your computer to display hidden folder or directory enter the pathname to a title bar of the folder.

  • Page 12: Startup And Exit Of The Software

    [KR Screen Designer] Instruction Manual 4 Startup and Exit of the Software 4-1 Startup This section describes how to startup the software. <Procedures> Double click an icon on the desktop. Do not update the Windows while the KR Screen Designer is running. Note Depending on the PC, Warning Screen may appear while starting up the software.

  • Page 13: How To Operate

    [KR Screen Designer] Instruction Manual 5 How to Operate *Screens shown below are of Windows 7, yet, they are same for Windows Vista and Windows 8. 5-1 How to Operate <Procedures> (1) Start this software. When you start the software, the Main Operation screen is displayed. (2) Create KR screen layout.
  • Page 14 [KR Screen Designer] Instruction Manual (3) Output layout as KR format. On the main operation screen, click on following order [File (F)] → [Save as KR Format]. After selecting the menu, select a folder to save and click [OK] button to create Graphic folder.

  • Page 15: Operation Of Main Operation Screen

    [KR Screen Designer] Instruction Manual 5-2 Operation of Main Operation Screen The Main Operation screen provides editing KR screen layout. <Image of Main Operation Screen> Create and edit screen layout using functions as indicated (1) Menu Bar and Toolbar, (2) Editor, (3) Project, (4) Items and (5) Property.

  • Page 16: Operation Of Menu Bar And Tool Bar

    [KR Screen Designer] Instruction Manual 5-2-1 Operation of Menu Bar and Tool Bar Provides application related operation and operation to the editor. <Menu Bar> Menu Button Detail New Project Create a new project. Display a dialog to open a file and load specified project file. Open Project Load all the screen layouts related to loaded project and add it to the editor tab.
  • Page 17 [KR Screen Designer] Instruction Manual <Menu Bar> Menu Button Detail KR Screen Size Resize screen match to KR 2000. → KR2000[316 * 210] KR Screen Size Resize screen match to KR 3000 → KR3000[800 * 520] KR Screen Size Resize screen match to KR2S/ KR3S →KR2S/ KR3S...
  • Page 18 [KR Screen Designer] Instruction Manual <Tool Bar> *Tool Bar buttons conduct same actions as identical name in the Menus. Menu Types Buttons link to Menus File [New Project] [Open Project] [Add New Editor] [Add Existing File] [Save] [Save All] Edit [Undo] [Redo] [Cut]...

  • Page 19: Operation Of Editor

    [KR Screen Designer] Instruction Manual 5-2-2 Operation of Editor Provide item layout and create screen layout for KR.  To edit multiple screen layouts at the same time, switch screen layouts with tab format. Create one tab for one screen layout (files are created for every tab). ...

  • Page 20: Management Of Project

    [KR Screen Designer] Instruction Manual 5-2-3 Management of Project Show a list of files added from Menu Bar and Toolbar and provide its operation. This list of files is screen layouts included in open project. <Project management and operation of the list of editor files> For the list of the editor files (1) Double click Switch to a target editor tab.

  • Page 21: Operation Of Items

    [KR Screen Designer] Instruction Manual 5-2-4 Operation of Items Provide a list of items that are able to be laid out on the editor and operation of the items. Select an item from the list to lay out and add an item to the editor by drag and drop. Select an item and double clicking on it can also add an item to the editor.
  • Page 22 [KR Screen Designer] Instruction Manual <Items> Item Description Property Rectangle Draw a shape. Channel No. Set channel number. Square Border Action Set border. Oval Position Set position to lay out. Circle Height Set height. Width Set width. Drawn Set back color either transparent Transparent or not.

  • Page 23: Operation Of Property

    [KR Screen Designer] Instruction Manual 5-2-5 Operation of Property Provide display and action of items related to property setup. Display each item’s property selected on the editor. A displayed property differs depend on a selected item. If select multiple Items, it only displays common property. <Display image of various item property>...
  • Page 24 Detail Set channel number. Only the numerical values can be input. Specified channel range is 1 to 44 for KR2000 and KR2S and 1 to 128 for Channel No. KR3000 and KR3S. If non- existent channel number besides 1 to 44 is specified on KR2000 or KR2S, data display becomes [*****] and border action becomes invalid.
  • Page 25 Also, in the case of font size 37, it is only available on alphanumeric character, Hiragana, and Katakana. Font size 20 of the text tool and font size 28 of the KR2000 can not be used. If screen layout is created for KR3000, and KR2S/KR3S screen size and later changing for the screen size of KR2000, pay attention to the font size.

  • Page 26: Operation Of Border Setup Screen

    [KR Screen Designer] Instruction Manual 5-3 Operation of Border Setup Screen Border Setup Screen provides border action of various items and its detail setup. Border Setup is able to change item property values depending on data variation of channel No. specified to Items. <How to setup Border Setup Screen>...
  • Page 27 [KR Screen Designer] Instruction Manual (2) Color Item Property ・Changing of Back Color and Fore Color Specify range of data variation ・Show/Hide which performs border setup. ・Blink On/Off Set according to data variation of specified channel. Set Back Color, Fore Color, Show/Hide and *Fore color setup is only available Blink On/Off for each data range.
  • Page 28 [KR Screen Designer] Instruction Manual (4) Size Mode：Split Item Property ・Changing of Height and Specify range of data variation Width which performs border setup. ・Show/Hide ・Blink On/Off Set according to data variation Set Height, Width, Show/Hide and Blink of specified channel. On/Off for each data range.
  • Page 29 [KR Screen Designer] Instruction Manual (5) Line *Only for tool item Line. Item Property ・Changing of Color and Width Specify range of data variation ・Show/Hide which performs border setup. ・Blink On/Off Set according to data variation of specified channel. Set Color, Width, Show/Hide and Blink On/Off for each data range.

  • Page 30: Operation Of Color Setup Screen

    [KR Screen Designer] Instruction Manual 5-4 Operation of Color Setup Screen Color Setup Screen provides setup of items’ back color and fore color. Select basic color then click [OK] or select the color created by custom color palette and click [OK] to specify the colors of each item.

  • Page 31: Operation Of Bitmap Icon Setup Screen

    [KR Screen Designer] Instruction Manual 5-5 Operation of Bitmap Icon Setup Screen Specified channel number’s data value displays bitmap or icon files in between 0 to 9 and the Bitmap Icon Setup Screen provides setting up of those image files. <How to Display Bitmap Icon Setup Screen>...
  • Page 32 [KR Screen Designer] Instruction Manual <Flow of Bitmap Icon Setup> *Click in order of (1) to (4). Select image. １ Click [OK] button. Confirm Image Setup. １ Select image (optionally) to setup １ Click [Open] button. Confirm image selection. １ *When setting up the editor background property [Bitmap] and item’s [Controller] property [Icon], there is one bitmap or icon is available for each so only Open File dialog is displayed.

  • Page 33: Operation Of Simulation Screen

    [KR Screen Designer] Instruction Manual 5-6 Operation of Simulation Screen Provide simulation function of the specified tab (editor file). At editable demo data, trace display when using target screen layout on KR. <How to Display Simulation Screen> On Main Operation Screen, click [Simulation] → [Start Simulation…F5]. <Image of Simulation Screen>...

  • Page 34: Menu Bar

    [KR Screen Designer] Instruction Manual 5-6-1 Menu Bar Provide operation on the Simulation Scene. <Menu Bar> Menu Button Details Print Print a running Simulation Screen. File Exit Exit Simulation Screen. Display Simulation Data Screen and set demo data that is Edit Edit Demo Data to be used in simulation.
  • Page 35 [KR Screen Designer] Instruction Manual Name Description Periodic Update Set demo data update period. Only numerical values can be input. Input range of 0 to 60 directly or click UP and DOWN button to change the values. One digit after the decimal point is able to be inputted. Changing value with UP and DOWN button increase and decrease 0.1 *Reflected on the action of Simulation screen when the input is confirmed.
  • Page 36 [KR Screen Designer] Instruction Manual Name Description Edit Data Set maximum value at simulation start. Maximum Value Input only numeric value, negative value can be inputted. Edit Data Set variable width of data at every periodic update during the Variable Width simulation.

  • Page 37: Operation Of Version Check Screen

    [KR Screen Designer] Instruction Manual 5-7 Operation of Version Check Screen On Main Operation Screen, click [Help(H)] → [About(A)] to check this software’s version information. For inquiry about this software, please tell us about this version number. (1) Click [About] button. On Main Operation Screen, click [Help (H)] →...

  • Page 38: Troubleshooting

    [KR Screen Designer] Instruction Manual 6 Troubleshooting This section describes some terms used in this instruction manual. Symptom Cause/Remedy Installation does not Confirm that there is enough free hard disk space (refer to section complete correctly. The installation might not be completed correctly. Uninstall and then The software does not start.
  • Page 39 CHINO CORPORATION 32-8, KUMANO-CHO, ITABASHI-KU, TOKYO 173-8632 PHONE: +81-3-3956-2171 FAX: +81-3-3956-0915 E-mail: inter@chino.co.jp Website: http://www.chino.co.jp Printed in Japan...
