VCS300 Series / VCS400 Series / VCS500 Series
Tools Required: Knife or scissors, Phillips or Robertson (square head) screwdriver, 7/16" and 3/8" wrench
or ratchet. The use of a manual screwdriver is strongly recommended. A power drill may cause damage to
the unit or stripping of the protective coating.
VCS500
CAUTION: This grill is intended ONLY to be used as a cart model, this grill cannot be built into an
enclosure.
CAUTION: The assembly of this grill requires two (2) people.
WARNING: Some parts may have sharp edges; to avoid injury, wearing gloves during assembly,
lifting or moving the grill is recommended. Protective eyewear and long sleeves are also strongly
recommended.
NOTE: Remove the protective plastic coating from the stainless steel, failure to do so will void the warranty.
Assembly Procedures
VCS300
20300447

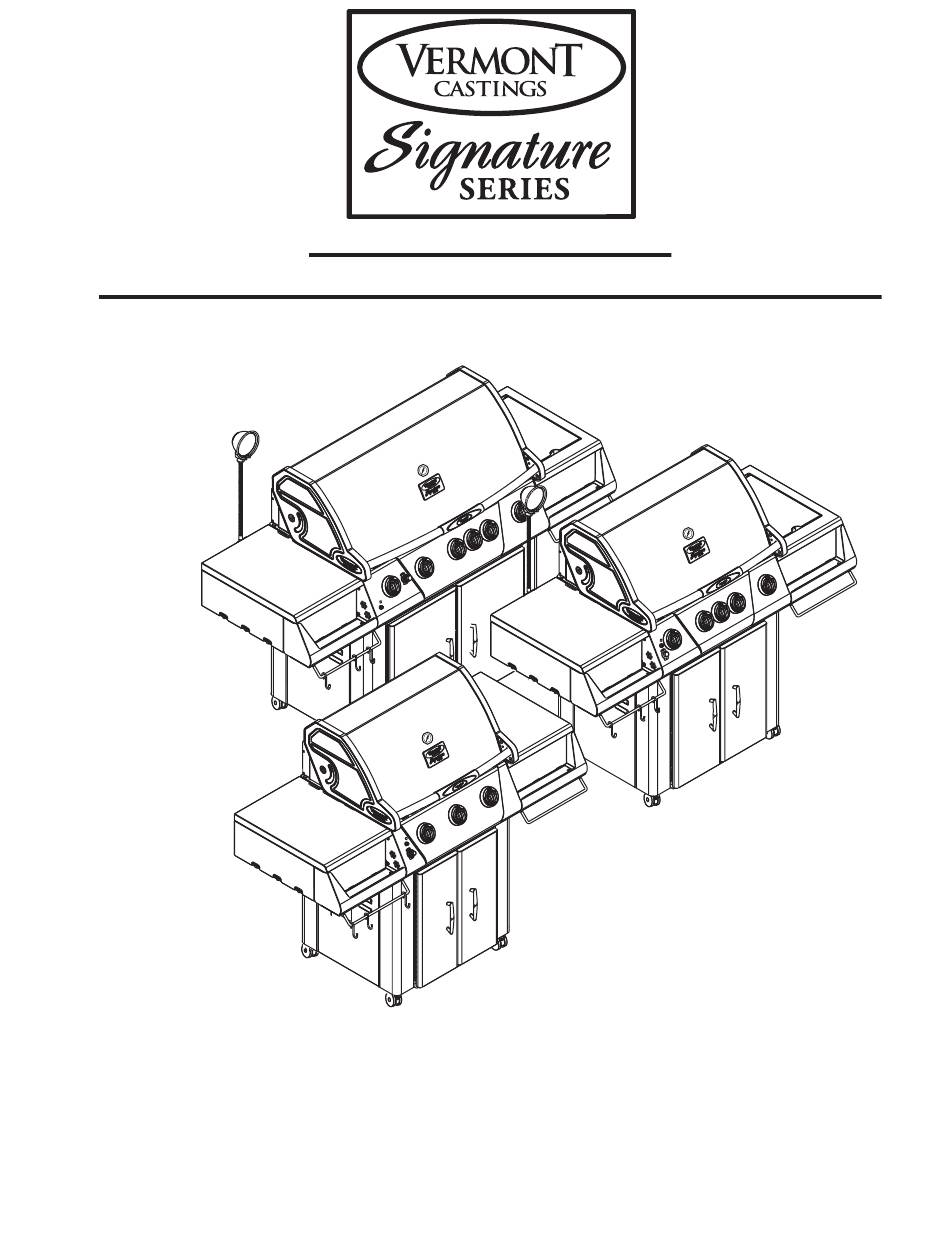

VCS Users guide cover
10/09
VCS400
20300448 10/09 Rev. 1 En
Advertisement
Related Manuals for Vermont Castings Signature VCS300 Series
Summary of Contents for Vermont Castings Signature VCS300 Series
- Page 1 Assembly Procedures VCS300 Series / VCS400 Series / VCS500 Series Tools Required: Knife or scissors, Phillips or Robertson (square head) screwdriver, 7/16” and 3/8” wrench or ratchet. The use of a manual screwdriver is strongly recommended. A power drill may cause damage to the unit or stripping of the protective coating.
- Page 2 VCS300/400/500 Series Assembly Step 1: Unpack Carton and Verify Contents Use a sharp cutting tool to cut the straps on the packaging and then lift off the carton top. Remove the box on the top. The sleeve surrounding the barbecue can be removed by lifting it straight up and over the top of the unit.
- Page 3 VCS300/400/500 Series Assembly Step 1: Unpack Carton and Verify Contents (continued) VCS400 VCS400 Series Carton Contents Box 1 (50004562) Grease Pan Knob Long Stem (4) Knob (2) Battery “AA” Grease Cup Box 2 (50004547) Condiment Tray Left Condiment Tray Right Towel Bar (2) Utensil Hook (3) Hardware Bag Side Shelves...
- Page 4 VCS300/400/500 Series Assembly Step 1: Unpack Carton and Verify Contents (continued) VCS500 Series Carton Contents Box 1 (50004551) Grease Pan Knob Long Stem (4) Knob (2) Battery “AA” Grease Cup Box 5 (50004559) Cook Grate (4) Box 2 (50004547) CAR234 Condiment Tray Left VCS500 2010 cartons Box 6 (50004990)
- Page 5 VCS300/400/500 Series Assembly Step 2: Attach Skirt (Optional) Figure 1 Parts Required: Leveling Glide (1) Skirt Left Assembly (1) Skirt Right Assembly (1) Skirt Front Assembly (2) Skirt Corner Assemblies Skirt Right Assembly (7) #10-24 x 3/8” Screws (50004268) Skirt Left Assembly (4) Adjustable Leveling Glide Skirt Front Assembly Figures 1 &...
- Page 6 VCS300/400/500 Series Assembly Step 3: Attach Grease Cup Holder Figure 3 Parts Required: (1) Grease Cup Holder (2) #10-24 x 1/2” Screws (50000337) Figure 3 #10-24 x 1/2” Attach grease cup holder to the bottom of the Screws (50000337) left brace support using screws into the hex- serts as shown.
- Page 7 VCS300/400/500 Series Assembly Parts Required for Steps 4, 5, 6 & 7 Right Side Shelf Left Side Shelf (1) Kit Condiment Tray* (50004547) (1) Kit Condiment Tray* (50004547) (1) Kit Shelf Right** (91D0141) (1) Kit Shelf Left*** (91D0110) *Kit Condiment Tray (50004547) Contents (1) Condiment Tray Left (1) Condiment Tray Right (2) Towel Bars...
- Page 8 VCS300/400/500 Series Assembly Steps 4 & 5: Right & Left Side Shelf Assembly Parts Required: (1) Kit Condiment Tray (50004547) (1) Condiment Tray Left (1) Condiment Tray Right (1) Hardware Bag Side Shelves (for both right and left side shelves) (1) Kit Shelf Right (91D0141) (1) Shelf Right Assy w/Support Brackets, Cover and Side Burner Assembly installed (1) Kit Shelf Left (91D0110)
- Page 9 VCS300/400/500 Series Assembly Step 6: Attach Right Shelf Assembly to Grill Parts Required: Right Shelf Assembly (1) Right Shelf Assy. (Step 4) (4) 1/4-20 x 1Z\x” Screws (50001383) (2) #10-24 x 1/2” Screws (50000337) Figures 5 & 6 Loosely screw in (4-5 turns) four (4) 1/4-20 x 1Z\x” screws to the side of the grill. Place right shelf assembly onto screws.
- Page 10 VCS300/400/500 Series Assembly Step 7: Attach Left Shelf Assembly to Grill Parts Required: Left Shelf Assembly (1) Left Shelf Assy. (Step 5) (4) 1/4-20 x 1Z\x” Screws (50001383) (2) #10-24 x 1/2” Screws (50000337) Figure 7 Loosely screw in (4-5 turns) four (4) 1/4-20 x 1Z\x” screws to the side of the grill. Place left shelf assembly onto screws.
- Page 11 VCS300/400/500 Series Assembly Step 8: Attach Knobs Parts Required: VCS300 Series: (3) Knobs (long stem) VCS400 Series: (5) Knobs (3 long stem, 2 short stem) VCS500 Series: (6) Knobs (4 long stem, 2 short stem) Figures 8 & 9 Align the knobs on the valve stems and push inward until the knob sits snugly on the stem. NOTE: Place the long stem knobs in the center raised portion of the console.
- Page 12 VCS300/400/500 Series Assembly Step 9: Attach Towel Bars, Utensil Hooks and Spit Rod Storage Brackets Parts Required Left Side Right Side (1) Towel Bar (1) Towel Bar (3) Utensil Hooks (4) #10-24 x 1/2” Screws (50000337) (4) #10-24 x 1/2” Screws (50000337) Spit Rod Storage Bracket (2) Brackets (50004310) Towel Bars and Utensil Hooks...
- Page 13 VCS300/400/500 Series Assembly Step 10: Attach Side Burner Assembly Follow Side Burner Assembly Instructions to assemble side burner to unit. Step 11: Install the Ignitor Battery Figure 12 NOTE: VCS300 Series require one (1) “AAA” bat- tery. (Included) VCS400 and VCS500 Series require one (1) “AA” battery.
- Page 14 VCS300/400/500 Series Assembly Step 13: Install the Internal Components Parts Required: VCS300 (3) Sear Plates VCS400 (4) Sear Plates VCS500 (5) Sear Plates Series (2) Cooking Grates Series (3) Cooking Grates Series (4) Cooking Grates (1) Warming Rack (1) Warming Rack (1) Warming Rack (1) Smoker Box Assy (1) Smoker Box Assy...
- Page 15 VCS300/400/500 Series Assembly Step 13: Install the Internal Components (continued) Figure 16 Set the cooking grates, side by side, on the upper ledge of the grill tub. (Fig. 16) Make sure the finger groove is facing toward the front of the grill. Warming Rack Set the warming rack into the supports located on either Cooking...
- Page 16 VCS300/400/500 Series Assembly Step 15: Install the LP Cylinder (LP Models ONLY) Parts Required: (1) LP Gas Cylinder (not included) Figures 18 & 19 NOTE: Check your User’s Manual for the cylinder filling requirements, how to attach the regula- tor and how to test for leaks before you try lighting the grill. CAUTION: Make sure the hose is not touching any hot or sharp surfaces.
- Page 17 VCS300/400/500 Series Assembly Step 16: Install the Natural Gas Hose (Natural Gas (NG) Models ONLY) Figure 20 Run natural gas hose through bushing provided in back panel of grill. Figure 20 B240a Shown with Op- tional Skirt in Place CAUTION: Some parts may have sharp edges; to avoid injury, wearing gloves during assembly, lifting or mov- ing the grill is recommended.
- Page 18 VCS300/400/500 Series Assembly Step 17: Install Shelf Light (VCS400, VCS500 Series Only) Parts Required: (1) Cook Light Figure 21 (3) #10-24 x 1/2” Screws (50000337) Figures 21, 22 & 23 Attach the cook light to the side shelf using three (3) screws provided. (Fig.
- Page 19 VCS300/400/500 Series Assembly NOTES CAUTION: Some parts may have sharp edges; to avoid injury, wearing gloves during assembly, lifting or mov- ing the grill is recommended. 20300448...
- Page 20 VCS300/400/500 Series Assembly MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com CAUTION: Some parts may have sharp edges; to avoid injury, wearing gloves during assembly, lifting or moving the grill is recommended. 20300448...
