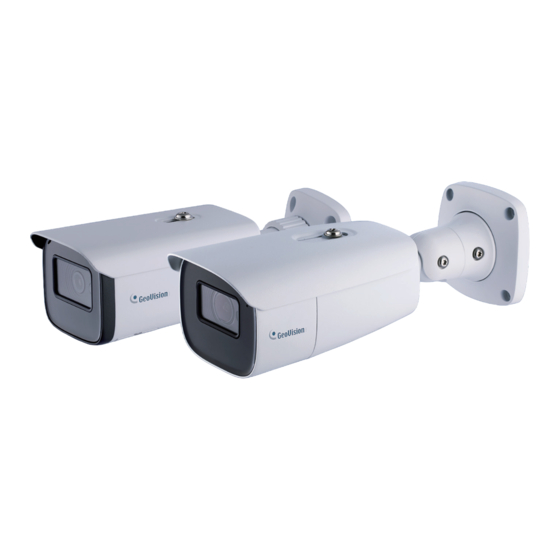

Summary of Contents for GeoVision GBL4911
- Page 1 GV-IP Cloud Cameras User's Manual GV-GBL4900 / GBL4911 GV-GDR4900 GV-GEB4900 GV-GEBF4911 GV-GVD4910 Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. TVTG-UM-C...
- Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
- Page 3 Safety Instruction ⚫ This product is intended to be supplied by a Listed Power Unit, marked with 'Limited Power Source', 'LPS' on unit, output rated minimum 12V/2 A or POE 48V/ 350mA or AC24V (depending on models), no more than 2000m altitude of operation and Tma=60 Deg.C.
- Page 4 Disclaimer With regard to the product with internet access, the use of product shall be wholly at your ⚫ own risks. Our company shall be irresponsible for abnormal operation, privacy leakage or other damages resulting from cyber attack, hacker attack, virus inspection, or other internet security risks;...
- Page 5 Regulatory Information FCC Information FCC compliance The products have been tested and found in compliance with the council FCC rules and regulations part 15 subpart B. These limits are designed to provide reasonable protection against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication.
-
Page 6: Table Of Contents
Table of Contents Contents Safety Instruction .................................. 1 Contents ....................................1 Chapter 1 Introduction ..............................1 Chapter 2 Network Connection ............................2 2.1 LAN ..................................2 2.1.1 Access through IP-Tool ..........................2 2.1.2 Directly Access through IE ......................... 4 2.2 WAN ..................................6 Chapter 3 Live View ................................ - Page 7 4.6.7 RTMP ................................82 4.6.8 UPNP ................................83 4.6.9 Email ................................83 4.6.10 FTP ................................84 4.6.11 HTTP POST ............................. 86 4.6.12 HTTPS ................................. 86 4.6.13 QoS ................................87 4.6.14 TS Multicast ............................. 88 4.7 Security Configuration ............................89 4.7.1 User Configuration ............................ 89 4.7.2 Online User ..............................
-
Page 8: Safety Instruction
Chapter 1 Introduction Surveillance Application... -
Page 9: Chapter 2 Network Connection
In LAN, there are two ways to access IP-Cam: 1. access through GV-IP Device Utility (V8.9.8 or later for GV-GDR4900 / GEB4900 / GEBF4911, V9.0.1 or later for GV-GBL4900 / GBL4911 / GVD4910); 2. directly access through IE browser. 2.1.1 Access through IP-Tool... - Page 10 Find the camera with its Mac Address, click on its IP address. For first-time users, you are requested to create a password. Type a new password and click OK. Click on its IP address again and select Webpage to open its Web interface. Type the set password on the login page and click Login.
-
Page 11: Directly Access Through Ie
2.1.2 Directly Access through IE The default network settings are as shown below: IP address: 192.168.0.10 Subnet Mask: 255.255.255.0 Gateway: 192.168.226.1 HTTP: 80 Data port: 9008 Use the above default settings when logging in the camera for the first time. Directly connect the camera to the computer through network cable. - Page 12 Next, click the “Properties” button to set the network of the PC. Open the Web browser and enter the default address of the IP-camera. Follow directions to download and install the plug-in. Enter the default username and password on the login page and click “Login”.
-
Page 13: Wan
2.2 WAN Access through the router or virtual server Make sure the camera is connected to the local network and then log in the camera via LAN and go to Config→Network→Port menu to set the port number. Port Setup Go to Config →Network→TCP/IP menu to modify the IP address. IP Setup Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the “Virtual Server”. - Page 14 Access through PPPoE dial-up Network connection Access the camera through PPPoE auto dial-up. The setup steps are as follow: Go to Config→Network→Port menu to set the port number. Go to Config →Network→TCP/IP→PPPoE Config menu. Enable PPPoE and then enter the user name and password from your internet service provider. Go to Config →Network→DDNS menu.
-
Page 15: Chapter 3 Live View
Chapter 3 Live View After logging in, the following window will be shown. The following table is the instructions of the icons on the live view interface. Icon Description Icon Description Original size Sensor alarm indicator Fit correct scale Motion alarm indicator Adapt Color abnormal indicator Full screen... - Page 16 Illegal parking detection Face Detection indicator (not available for GV-GEBF4911) Video metadata extraction Rule information display indicator Note: Those smart alarm indicators will flash only when the camera supports those functions and the corresponding events are enabled. After clicking the audio alarm icon, the sound warning will be triggered according to the set warning times (you can set the warning times by clicking Config→Alarm→Audio Alarm).
- Page 17 PTZ Control Some cameras can be installed in a compatible external PTZ enclosure through RS485. Click the PTZ icon to reveal the PTZ control panel. The descriptions of the control panel are as follows: Icon Description Icon Description Move upper left direction Move upper right direction Move up Stop movement...
- Page 18 Rule line or area color display: Rule line or area: blue Rule line or area after an event is triggered: turn from blue to red...
-
Page 19: Chapter 4 Network Camera Configuration
Chapter 4 Network Camera Configuration In the Webcam client, choose “Config” to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 4.1 System Configuration 4.1.1 Basic Information In the “Basic Information” interface, the system information of the device is listed. 4.1.2 Date and Time Go to Config→System→Date and Time. -
Page 20: Local Config
Then re-open it and log in again. For GV-GEBF4911: Click the “Date and Time” tab to set the time mode and time format. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910: Click the “Summer Time” tab to set DST (Daylight Saving Time) as needed. -
Page 21: Storage
Note: If the performance of your computer is not compatible with the IE client or your computer has no graphics card, low-efficient mode is suggested. On non-IE browsers, only Show Bitrate can be set in the above interface. When you access your camera by the web browser without the plug-in, only Show Bitrate cam be set in the above interface. - Page 22 4.1.4.1 Schedule Recording Settings Go to Config→System→Storage→Record to go to the interface as shown below. Set record stream, pre-record time, cycle writing. Pre Record Time: Set the time to record before the actual recording begins. Set schedule recording. Check “Enable Schedule Record” and set the schedule. Weekly Schedule Set the alarm time from Monday to Sunday for a single week.
- Page 23 4.1.4.2 Snapshot Settings Go to Config→System→Storage→Snapshot to go to the interface as shown below. Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number.
-
Page 24: Image Configuration
4.2 Image Configuration 4.2.1 Display Configuration Go to Image→Display Settings interface as shown below. The image’s brightness, contrast, hue and saturation and so on for common, day and night mode can be set up separately. The image effect can be quickly seen by switching the configuration file. Brightness: Set the brightness level of the camera’s image. - Page 25 “Manual” is selected, the gain value shall be set manually. The higher the value is, the brighter the image is. Gain (for GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910): Set the upper limit of the gain. The gain value will be automatically adjusted (within the set gain limit value)
- Page 26 Lens Distortion Correction: When the image appears distortion to some extent, please enable this function and adjust the level according to the actual scene to correct the distortion. Frequency: 50Hz and 60Hz can be optional. Corridor Pattern: Corridor viewing modes can be used for situations such as long hallways. 0, 90, 180 and 270 are available.
-
Page 27: Video / Audio Configuration
4.2.2 Video / Audio Configuration Go to Image→Video / Audio interface as shown below. In this interface, set the resolution, frame rate, bitrate type, video quality and so on subject to the actual network condition. Three video streams can be adjustable. Resolution: The size of image. - Page 28 Watermark: When playing back the local recorded video in the search interface, the watermark can be displayed. To enable it, check the watermark box and enter the watermark text. Note: When the camera is connected to GV-Cloud VMS, the resolution and bitrate values will be grayed out and cannot be modified.
-
Page 29: Osd Configuration
Check “OSD Content1”, choose “Picture Overlay” and click “Browse” to select the overlap picture. Then click “Upload” to upload the overlap picture. The pixel of the image shall not exceed 200*200, or it cannot be uploaded. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910... -
Page 30: Video Mask
Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. Picture Overlap Settings: Check “OSD Content1”, choose “Picture Overlay” and click to select the overlap picture. -
Page 31: Roi Configuration
Return to the live to verify that the area has been drawn as shown as blocked out in the image. To clear the video mask: Click the “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration Go to Image→ROI Config interface as shown below. An area in the image can be set as a region of interest. -
Page 32: Lens Control
4.2.6 Lens Control This function is only available for the model with motorized zoom lens. Within this section, zoom and focus can be controlled. If the image is out of focus after a manual adjustment, one key focus can be used to set the focus automatically. Go to Config→Image→ Zoom/Focus interface to set. - Page 33 Check “Enable” check box to activate motion based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video. Alarm Holding Time: It refers to the interval time between the adjacent motion detections. For instance, if the alarm holding time is set to 20 seconds, once the camera detects a motion, it will go to alarm and would not detect any other motion in 20 seconds.
- Page 34 For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Check “Enable” check box to activate motion based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video.
-
Page 35: Exception Alarm
4.3.2 Exception Alarm ⚫ SD Card Full Go to Config→Alarm→Exception Alarm→SD Card Full. Click “Enable”. Set the alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to 4.3.1 Motion Detection for details. ⚫... - Page 36 ⚫ IP Address Conflict Go to Config→Alarm→Exception Alarm→IP Address Collision as shown below. Click “Enable” and set the alarm holding time. Trigger alarm out. When the IP address of the camera conflicts with the IP address of other devices, the system will trigger the alarm out. ⚫...
-
Page 37: Alarm In
Note: For alarm trigger options: if Day/night switch linkage is enabled, the system will switch to day or night mode upon the occurrence of the sensor alarm. Note that this is only applicable to GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910. Click “Save” button to save the settings. -
Page 38: Alarm Out
Manual Operation: Having selected this mode, select the alarm type and click “Open” to trigger the alarm out immediately; click “Close” to stop alarm. Day/Night Switch Linkage (for GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910): Having selected this mode, select the alarm type and choose to open or close alarm out when the camera switches to day or night mode. -
Page 39: Alarm Server
If an alarm server is not needed, there is no need to configure this section. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910: Click to view the entire server address; click to hide a part of sensitive data. - Page 40 Select the warning voice. If you want to customize the voice, you can chose “Customize”. Click “Browse” to choose the audio file you to upload and then enter the audio name. Finally, click “Upload” to upload the audio file. Note that the format of the audio file must meet the requirement (see Tips), or it will not be uploaded.
-
Page 41: Light Alarm
Alarms will be triggered when the abnormal sound is detected in the surveillance scene, such as the sudden increase/decrease of the sound intensity. Note that this is only applicable to GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910. To set audio exception detection: Go to Alarm→Audio Exception interface as shown below. - Page 42 Select the audio exception detection types. Sudden Increase of Sound Intensity Detection: Detect sudden increase of sound intensity. If enabled, sensitivity and sound intensity threshold are configurable. Alarms will be triggered when the detected sound intensity exceeds the sound threshold. Sensitivity: The higher the value is, the easier the alarm will be triggered.
-
Page 43: Event Configuration
Once connected to GV-Cloud VMS / GV-Center V2, GV-GEBF4911 supports a maximum of 1 smart detection event, while GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 supports up to 2 smart detection events. The events include Line Crossing / Region Entrance / Region Exiting / Region Intrusion / Target Counting by Line/Area / Loitering Detection / Illegal Parking Detection / Video Metadata / Heat Map. -
Page 44: Object Abandoned / Missing
To set abandoned/missing object detection: Go to Config→Event→Object Abandoned/Missing interface as shown below. GV-GEBF4911 GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Enable abandoned/missing object detection and then select the detection type. Enable Abandoned Object Detection: Alarms will be triggered if there are items left in the pre-defined area. - Page 45 4.1.4.1 Schedule Recording Settings). For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Set the alarm area of the abandoned/missing object detection. Set the alarm area number and then enter the desired alarm area name. Only one alarm area can be added.
-
Page 46: Video Exception
The defined area cannot be covered frequently and continuously (like people and traffic flow). It is necessary for abandoned/missing object detection that the drawn frame must be very close to the margin of the object in enhancing the sensitivity and accuracy of the detection. - Page 47 The sensitivity value of Abnormal Color Detection: The higher the value is, the more sensitive the system responds to the color shift of the image. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Go to Config→Alarm→Video Exception interface as shown below.
- Page 48 Set the sensitivity of the exception detection. Click “Sensitivity” tab to go to the interface as shown below. Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox. Click “Save” button to save the settings. The sensitivity value of Scene Change Detection: The higher the value is, the more sensitive the system responds to the amplitude of the scene change.
-
Page 49: Line Crossing
Line Crossing: Alarms will be triggered if the target crosses the pre-defined alarm lines. Go to Config→Event→Line Crossing interface as shown below. GV-GEBF4911 GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Enable line crossing alarm and select the snapshot type and the detection target. - Page 50 Push target trajectory with a persistent connection (for GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910): Push target trajectory (moving coordinate) to API test tool with a persistent connection. If enabled, the system will push the target trajectory upon detecting a target.
- Page 51 For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Set alarm lines and target size filter for line crossing detection. Set the alarm line number and direction. Four lines can be added. Multiple lines cannot be added simultaneously. Direction: A<->B, A->B and A<-B optional. This indicates the direction of the intruder who crosses over the alarm line that would trigger the alarm.
- Page 52 Drag one of four corners of the green or yellow box to change the box size. The corresponding size value on the right will be changed too. You can also enter the digital number to directly change the box size. Click and drag the green or yellow box to move its position.
- Page 53 Note: The percentage means that a target occupies the percentage of the entire image. For example, in a 1080p (1920×1080) video image, the minimum resolution of human is 80×160 (w=1920 x 4%=80, h=1920 x 8%=160). Correct example The target recognition box meets the requirements of the minimum size. The yellow box stands for the minimum recognition size.
- Page 54 Installation suggestion: Outdoor mounting: The optimal detection distance varies due to different focal length. Please refer to the following table. Human/Motorcycle/Bicycle Motor Vehicle Focal Installation Maximum Optimal Maximum Optimal Length Height(m) Distance(m) Distance(m) Distance(m) Distance(m) 2.8 mm 3-10 10-15 3.6 mm 3-10 5-10 15-20...
-
Page 55: Region Entrance
Region Entrance: Alarms will be triggered if the target enters the pre-defined areas. Go to Config→Event→Region Entrance interface as shown below. GV-GEBF4911 GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Enable region entrance detection and select the snapshot type and the detection target. - Page 56 Push target trajectory with a persistent connection (for GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910): Push target trajectory (moving coordinate) to API test tool with a persistent connection. If enabled, the system will push the target trajectory upon detecting a target.
- Page 57 Click “Save” button to save the settings. Set the schedule of the region entrance detection. The setup steps of schedule are the same as the motion detection schedule settings (See 4.1.4.1 Schedule Recording Settings). Click “Linkage” to configure the alarm linkage items. The setup steps are the same as motion detection.
-
Page 58: Region Exiting
Region Exiting: Alarms will be triggered if the target exits from the pre-defined areas. Go to Config→Event→Region Exiting interface as shown below. GV-GEBF4911 GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Enable region exiting detection and select the snapshot type and the detection target. -
Page 59: Target Counting By Line
If disabled, the system will push the target trajectory only when triggering target counting by line. Close Event Snapshot (for GV-GBL4900 / GBL4911 / GDR4900 / GFB4900 / GVD4910): If enabled, the pictures that are captured when counting targets will be neither saved to an SD card/local PC nor pushed to the NVR/APP/platform/…. - Page 60 (See 4.1.4.1 Schedule Recording Settings). GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Set the alarm holding time. Set alarm lines and target size filter. Set the alarm line number and direction. Only one alarm line can be added.
- Page 61 Direction: A->B and A<-B can be optional. The direction of the arrow is entrance. Click the “Draw Area” button and then drag the mouse to draw a line in the image. Click the “Clear” button to delete the lines. Target size filter setup: The setup steps of the target size filter are the same as line crossing target size filter setup (See 4.4.3 Line Crossing for details).
- Page 62 View the statistical information of target counting by line. Click Statistics→Target Counting by Line (GV-GEBF4911) / Chart→Target Counting by Line (GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910) to enter the following interface. Select the Report Type. Daily Report, Weekly Report, Monthly Report, and Annual Report are selectable.
-
Page 63: Target Counting By Area
Go to Config→Event→Target Counting by Area as shown below. GV-GEBF4911 GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Enable target counting by area, select the snapshot type, the detection target, counting reset. - Page 64 4.4.3 Line Crossing for details). Statistics (for GV-GBL4900 / GBL4911 / GDR4900 / GFB4900 / GVD4910): If enabled, you can see the statistical information in the live view interface. If disabled, the statistical information will not be displayed in the live view interface.
- Page 65 View the statistical information of target counting by area. Click Statistics→Target Counting by Area (GV-GEBF4911) / Chart→ Target Counting by Area (GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910) to enter the following interface. Please select Report Type, Count Type and Count Time as needed. Then click “Count” to search the statistic result.
-
Page 66: Region Intrusion
Go to Config→Event→Region Intrusion interface as shown below. GV-GEBF4911 GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Enable intrusion detection and select the snapshot type and the detection target. - Page 67 Push target trajectory with a persistent connection (for GV-GBL4900 / GBL4911 / GDR4900 / GFB4900 / GVD4910): The setup steps of the target size filter are the same as line crossing target size filter setup (See 4.4.3 Line Crossing for details).
- Page 68 To set up alarm triggers, click “Linkage”. The setup steps are the same as motion detection. Please refer to 4.3.1 Motion Detection for details. ※ Configuration requirements of camera and surrounding area The requirements are similar to line crossing detection. Please refer to Configuration requirements of camera and surrounding area in 4.4.3 Line Crossing for details.
-
Page 69: Face Detection
4.4.9 Face Detection Face detection function is to detect the face appearing in the surveillance scene. Alarms will be triggered when a face is detected. The setting steps are as follows: For GV-GEBF4911 Go to Config→Event→Face Detection as shown below. - Page 70 Enable the face detection function. Save Source Information to SD Card: if checked, the whole picture will be saved to the local PC or SD card when detecting a face. Save Face Information to SD Card: if checked, the captured face picture will be saved to the local PC or SD card when detecting a face.
- Page 71 (See 4.1.4.1 Schedule Recording Settings). For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Click Config→Event→Enable Event. Select the face event and then save the setting. After the camera restarts successfully, you can view the face detection menu.
- Page 72 Save Source Information to SD Card: if checked, the whole picture will be saved to SD card when detecting a face. Save Face Information to SD Card: if checked, the captured face picture will be saved to SD card when detecting a face. Note: To save images to the local PC, please enable the local smart snapshot storage first (Config→System→Local Config).
- Page 73 Face Capture View After enabling face detection function, return to the live view interface. Click to go to the following interface. When there are faces detected, the face pictures will be listed on the right. The features of captured faces also can be displayed, such as gender, whether to wear a mask, whether to wear glasses, age group, etc.
-
Page 74: Heat Map
4.4.10 Heat Map Heat Map is to display the flow distribution of people/vehicles in pre-defined areas by different colors. For GV-GEBF4911 1. Enable Heat Map, set snapshot type and detection target type as needed. 2. Set heat map display area. Up to 4 areas can be set. Click the “Draw Area”... - Page 75 Click “Motor Vehicle” or “Non-motor Vehicle” to view the corresponding data. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 1. Enable Heat Map, set snapshot type and detection target type as needed. 2. Set heat map display area and target size filter. Up to 4 areas can be set.
-
Page 76: Video Metadata
Go to Config→Event→Video Metadata interface. The setting steps are as follows: GV-GEBF4911 GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Enable video metadata and select the snapshot type and the detection target. Save Original Picture to SD Card: If it is enabled, the detected original pictures will be captured and saved to the SD card when the targets enter the pre-defined areas. - Page 77 You need to set the detection area and blocked area separately. Target size filter setup (for GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910): The setup steps of the target size filter are the same as line crossing target size filter setup (See 4.4.3 Line Crossing...
- Page 78 Set the schedule of video metadata function. The setup steps of the schedule are the same as schedule recording setup. (See 4.1.4.1 Schedule Recording Settings). After all settings above are configured, return to the live interface to view the captured pictures and features.
-
Page 79: Loitering Detection
Note that this is only applicable to GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910. Go to Event→Loitering Detection interface as shown below. The setting steps are as follows: Enable loitering detection and select the snapshot type. -
Page 80: Illegal Parking Detection
Illegal Parking Detection: when a vehicle (like a car, truck, motorcycle, etc.) staying in a no-parking zone exceeds the threshold, alarms will be triggered until the vehicle is driven away. Note that this is only applicable to GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910. - Page 81 Click the “Draw Area” button and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Click the “Clear” button to delete the alarm area. Click the “Save” button to save the settings. Target size filter setup: The setup steps of the target size filter are the same as line crossing target size filter setup (See 4.4.3 Line Crossing...
-
Page 82: Service
GV-Cloud VMS, see 4.1.4 Storage. The following events are supported on GV-Cloud VMS: A. GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910: Motion Detection, Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Video Exception (Scene Change / Video Blur Detection), I/O events. -
Page 83: Gv-Center V2
See 8. Connecting to GV-Center V2 for detailed steps in the Quick Start Guide. The following events are supported on GV-Center V2: A. GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910: Motion Detection, Region Intrusion, Line Crossing, Region Entrance, Region Exiting, Video Exception (Scene Change Detection), I/O events. -
Page 84: Network Configuration
4.6 Network Configuration 4.6.1 TCP/IP Go to Config→Network→TCP/IP interface as shown below. There are two ways for network connection. Use IP address (take IPv4 for example): There are two options for IP setup: obtain an IP address automatically by DHCP and use the following IP address. Please choose one of the options as needed. -
Page 85: Port
4.6.2 Port Go to Config→Network→Port interface as shown below. HTTP port, Data port and RTSP port can be set. HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied. HTTPS Port: The default HTTPs port is 443. It can be changed to any port which is not occupied. - Page 86 Apply for a domain name. Take www.dvrdyndns.com for example. Enter www.dvrdydns.com in the IE address bar to visit its website. Then Click the “Registration” button. Create domain name. After the domain name is successfully applied for, the domain name will be listed as below. Click “Edit”...
-
Page 87: Snmp
SNMP, such as SNMP port, trap address. Go to Config→Network→SNMP. Click “Edit” at the bottom (for GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910). Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software that will be used. -
Page 88: Rtsp
4.6.6 RTSP Go to Config→Network→RTSP. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910: Click “Edit” to start the setup. Select “Enable” to enable the RTSP function. Port: Access port of the streaming media. The default number is 554. -
Page 89: Rtmp
You can access the third-party (like YouTube) to realize video live view through RTMP protocol. Go to Config→Network→RTMP. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910: Click “Edit” to start the setup. Check “Enable”, select stream type, set the reconnection time after timeout and server address as needed. -
Page 90: Upnp
If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first. Go to Config→Network →Email. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4911, click “Edit and Test” to set the sender and the recipient. Sender Address: Sender’s e-mail address. -
Page 91: Ftp
After an FTP server is set up, captured pictures from events will be uploaded to the FTP server. 1. Go to Config→Network →FTP. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910: Click “Edit” to start the setup. Click “Add” to add the information of the FTP. After that, click “Save” to save the settings. - Page 92 In the event setting interface (like intrusion, line crossing, etc.), trigger FTP as shown below. Rule of FTP storage path: /device MAC address/event type/date/time/ For example: a face detection alarm occurs FTP file path: \00-18-ae-a8-da-2a\VFD\2021-01-09\14\ Event name table: File Name Event Type IP address change MOTION...
-
Page 93: Http Post
4.6.11 HTTP POST For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910: Click “Edit” to start the setup. Go to Config→Network →HTTP POST interface. Check “Enable”, select protocol type and then set the server address (IP address/domain name), server port and heartbeat interval. -
Page 94: Qos
A private certificate can be created if users don’t want to use the default one. Click “Delete” to cancel the default certificate. Then the following interface will be displayed. *If there is a signed certificate, click “Browse” to select it and then click “Install” to install it. *Click “Create a private certificate”... -
Page 95: Ts Multicast
Video/Audio DSCP: The range is from 0 to 63. Alarm DSCP: The range is from 0 to 63. Manager DSCP: The range is from 0 to 63. Generally, the larger the number is, the higher the priority is. 4.6.14 TS Multicast By using transport stream multicast (TS Multicast), multiple users can view the video image simultaneously even if there is not enough bandwidth. -
Page 96: Security Configuration
4.7 Security Configuration 4.7.1 User Configuration Go to Config→Security→User interface as shown below. Add user: Click the “Add” button to pop up the following textbox. Enter user name in the “User Name” textbox. Enter the password in the “Password” and “Confirm Password” textbox. Please set the password according to the requirement of the password security level (Go to Config→Security→Security Management→Password Security interface to set the security level). - Page 97 Modify user: Select a user to modify password in the user configuration list box. The “Edit user” dialog box pops up by clicking the “Modify” button. Enter the old password of the user in the “Old Password” text box. Enter the new password in the “New password” and “Confirm Password” text box. Select the user permissions for advanced or normal user.
-
Page 98: Online User
4.7.2 Online User Go to Config→Security→Online User to view the user who is viewing the live video. An administrator user can kick out all the other users (including other administrators). 4.7.3 Block and Allow Lists Go to Config→Security→Block and Allow Lists as shown below. The setup steps are as follows: Check the “Enable address filtering”... - Page 99 ⚫ Password Security Please set the password level and expiration time as needed. Password Level: Weak, Medium or Strong. ⚫ Weak: Numbers, special characters, upper or lower case letters can be used. You can choose one of them or any combination of them when setting the password. ⚫...
-
Page 100: Maintenance Configuration
⚫ Click the “Load Default” button to restore all system settings to the default factory settings except those you want to keep. GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 Import & Export Settings ⚫ Configuration settings of the camera can be exported form a camera into another camera. -
Page 101: Reboot
⚫ Restore Factory Settings Click the “Restore Factory Settings” button and then verify the password to restore all system settings to the default factory settings. 4.8.2 Reboot Go to Config→Maintenance→Reboot. Click the “Reboot” button to reboot the device. Timed Reboot Setting: If necessary, the camera can be set up to reboot on a time interval. -
Page 102: Operation Log
Note: To decrease the upgrade risk, the camera adopts two systems. After one system is successfully upgraded, the other system will be synchronized. If one system fails caused by power failure or other reasons during the upgrade, the other system will not be affected and the camera still can work normally. -
Page 103: Debug Mode
4.8.6 Debug Mode Debug Mode is used to record and collect the required system data, so that the technician can quickly find out and analyze the problem, and help us to improve service. Before enabling the debug mode, you are advised to consult our technical support. Note: Once the SD card is used to collect the system data, the SD card will not be used to store snapshots and recorded files. -
Page 104: Chapter 5 Search
Chapter 5 Search 5.1 Image Search Click Search to go to the interface as shown below. Images that are saved on the SD card can be found here. Note: When using the plug-in free browser, the local images cannot be searched. For GV-GEBF4911 ⚫... - Page 105 Click to return to the previous interface. ⚫ SD Card Image Search 1. Choose “Picture”—“SD Card”. 2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface. 4. Click to search the images.
- Page 106 GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 ⚫ SD Card Image Search 1. Choose “Picture”. 2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface.
-
Page 107: Video Search
The descriptions of the buttons are shown as follows. Icon Description Icon Description Close: Select an image Close all: Click this button to and click this button to close all images. close the image. Save: Click this button to Save All: Click this button to select the path for saving select the path for saving all the image on the PC. - Page 108 Double click on a file name in the list to start playback. ⚫ Local Image Search 1. Choose “Record”—“SD Card”. 2. Set search time: Select the date and choose the start and end time. 3. Click to search the images. 4.
- Page 109 6. Double click on a file name in the list to start playback. For GV-GBL4900 / GBL4911 / GDR4900 / GEB4900 / GVD4910 1. Choose “Record”. 2. Set search time: Select the date and choose the start and end time.
- Page 110 Icon Description Icon Description Play button. After pausing the video, click this button Pause button to continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio. Note: cannot be displayed in the above interface via the plug-in free browser.
- Page 111 Icon Description Icon Description Play button. After pausing the video, click Pause button this button to continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio.
-
Page 112: Appendix
Appendix Troubleshooting How to find the password? A: The password for admin can be reset through “Edit Safety Question” function. Click “Forget Password?” on the login page and enter the corresponding answer of the selected question in the popup window. After you correctly answer all questions, you can reset the password for admin. - Page 113 B. Other plug-ins or anti-virus blocks the plug-in. Please uninstall or close them. No sound can be heard. A: Audio input device is not connected. Please connect and try again. B: Audio function is not enabled at the corresponding channel. Please enable this function. What’s the Web/ONVIF/RTSP connection limit? A maximum of 6 connections of Web/ONVIF/RTSP is supported.
