IBASE Technology MI1000AF User Manual

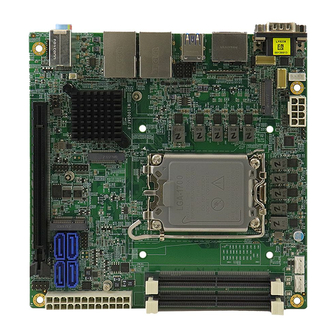

14th/13th/12th gen intel® core™ dt mini-itx motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MI1000AF
14th/13th/12th Gen
Intel® Core™ DT
Mini-ITX Motherboard
User's Manual
Version 1.0
(February 2024)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MI1000AF and is the answer not in the manual?

Questions and answers

Related Manuals for IBASE Technology MI1000AF

Summary of Contents for IBASE Technology MI1000AF

  • Page 1 MI1000AF 14th/13th/12th Gen Intel® Core™ DT Mini-ITX Motherboard User’s Manual Version 1.0 (February 2024)
  • Page 2 No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc. (hereinafter referred to as “IBASE”). Disclaimer IBASE reserves the right to make changes and improvements to the products described in this document without prior notice.
  • Page 3 Compliance This product has passed CE tests for environmental specifications and limits. This product is in accordance with the directives of the European Union (EU). In a domestic environment, this product may cause radio interference in which case users may be required to take adequate measures.
  • Page 4 Important Safety Information Carefully read the precautions before using the board. Environmental conditions: • Use this product in environments with ambient temperatures between 0˚C and 60˚C. • Do not leave this product in an environment where the storage temperature may be below -20° C or above 80° C. To prevent from damages, the product must be used in a controlled environment.
  • Page 5 Warranty Policy • IBASE standard products: 24-month (2-year) warranty from the date of shipment. If the date of shipment cannot be ascertained, the product serial numbers can be used to determine the approximate shipping date. • -party parts: 12-month (1-year) warranty from delivery for the 3 -party parts that are not manufactured by IBASE, such as CPU, CPU cooler, memory, storage devices, power adapter, panel and touchscreen.

  • Page 6: Table Of Contents

    Table of Contents Chapter 1 General Information ..........1 Introduction ..................2 Features ....................2 Packing List ..................3 Optional Accessories ................3 Specifications ..................4 Block Diagram ..................6 Product View ..................7 Board Dimensions ................9 Chapter 2 Hardware Configuration ........
  • Page 7 2.5.11 DDR5 SO-DIMM CHA/CHAB (J4 / J5) ........27 2.5.12 2-Port USB 2.0 Ports (J6, J7) ..........28 2.5.13 M.2 M-Key Socket (J8) ............28 2.5.14 24-pin ATX Power Connector (J9) ........29 2.5.15 eSPI Debug (Factory use only) (J10) ........30 2.5.16 Digital I/O (4-in, 4-out) (J12) ..........31 2.5.17 RTC Battery Connector (J14) ..........32 2.5.18...
  • Page 8 Appendix ..................77 I/O Port Address Map ................ 78 Interrupt Request Lines (IRQ) ............80 Watchdog Timer Configuration ............81 Onboard Connector Types ..............85 MI1000AF USB Power Control Bit Mapping........86 MI1000 User’s Manual viii...

  • Page 9: Chapter 1 General Information

    Chapter 1 General Information The information provided in this chapter includes: • Features • Packing List • Optional Accessories • Specifications • Block Diagram • Product View • Board Dimensions...

  • Page 10: Introduction

    Introduction Introducing the MI1000AF Mini ITX motherboard, a compact yet powerful solution designed for high-performance computing. With support for 14th/13rh/12th Gen Intel® Core i9/i7/i5/i3 / DT Processors, up to 65W, and 64GB of DDR5 RAM with ECC, it ensures both speed and reliability.

  • Page 11: Packing List

    General Information Packing List Your MI1000AF package should include the items listed below. If any of the items below is missing, contact the distributor or dealer from whom you purchased the product. • MI1000AF • IO Shield • SATA cable •...

  • Page 12: Specifications

    Specifications Model LGA1700 MiniITX Motherboard w/ eDP, LVDS, 2x MI1000AF-R DisplayPort,2x Dual 2.5GbE, 4 x SATA, RAID, iAMT (16.1), dTPM (2.0) LGA1700 MiniITX Motherboard w/ eDP, LVDS, 2x MI1000AF-R-1 DisplayPort,2x Dual 2.5GbE, 4 x SATA, RAID, iAMT (16.1), fTPM (2.0)
  • Page 13 General Information Physical Dimensions 170mm x 170mm (6.7“x 6.7“) (L x W) Environmental Operating 0 ~ 60 °C (32 ~ 140 °F) Temperature Storage -20 ~ 80 °C (-4 ~ 176 °F) Temperature All specifications are subject to change without prior notice. MI1000 User’s Manual...

  • Page 14: Block Diagram

    Block Diagram MI1000 User’s Manual...

  • Page 15: Product View

    General Information Product View Top View Bottom View MI1000 User’s Manual...
  • Page 16 Rear View Description COM1(top) RS232/422/485 COM2(bottom) RS232 only 2x DisplayPort 6x USB 3.2 Connector HD Audio Connector 2x 2.5 Gigabit LAN MI1000 User’s Manual...

  • Page 17: Board Dimensions

    General Information Board Dimensions MI1000 User’s Manual...
  • Page 18 This page is intentionally left blank. MI1000 User’s Manual...

  • Page 19: Chapter 2 Hardware Configuration

    Chapter 2 Hardware Configuration This section provides information on jumper settings and connectors on the MI1000AF and other installation information in order to set up a workable system. The topics covered are: • Essential installations • Jumper and connector locations •...

  • Page 20: Essential Installations

    Essential Installations Follow the instructions below to install the memory modules. 2.1.1 Installing the Memory To install the modules, locate the memory slot on the board and perform the following steps: Align the key of the memory module with that on the memory slot and insert the module slantwise.

  • Page 21: Setting The Jumpers

    Hardware Configuration Setting the Jumpers Set up and configure the motherboard by using jumpers for various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your use. 2.2.1 How to Set Jumpers Jumpers are short-length conductors consisting of several metal pins with a non-conductive base mounted on the circuit board.

  • Page 22: Jumper & Connector Locations

    Jumper & Connector Locations MI1000 User’s Manual...

  • Page 23: Jumpers Quick Reference

    Hardware Configuration Jumpers Quick Reference Jumper Function LVDS Panel Brightness Selection LVDS Panel Power Selection eDP Panel Power Selection PCI Express Bifurcation Flash Descriptor Security Override Clear CMOS Clear ME JP10 AT/ATX Select 2.4.1 LVDS Panel Brightness Selection (JP1) Function Pin closed Illustration 3.3V(Default)

  • Page 24: Lvds Panel Power Selection (Jp4)

    2.4.2 LVDS Panel Power Selection (JP4) Function Pin closed Illustration 3.3V(Default) Note: This is for setting Pin19~Pin20 voltage of J19, J20. 2.4.3 eDP Panel Power Selection (JP5) Function Pin closed Illustration 3.3V(Default) Note: This is for setting Pin1~Pin5 voltage of CN3. MI1000 User’s Manual...

  • Page 25: Pci Express Bifurcation (Jp6)

    Hardware Configuration 2.4.4 PCI Express Bifurcation (JP6) Function Pin closed Illustration 1 x PCIe (x16) (default) 2 x PCIe (x8) Note :The setting is for PCIE1 slot 2.4.5 Flash Descriptor Security Override (JP7) Flash Descriptor Security Override Illustration Disabled (default) Open Enabled Close...

  • Page 26: Clear Cmos (Jp8)

    2.4.6 Clear CMOS (JP8) Function Pin closed Illustration Normal (default) Clear CMOS 2.4.7 Clear ME (JP9) Function Pin closed Illustration Normal (default) Clear ME MI1000 User’s Manual...

  • Page 27: At/Atx Select (Jp10)

    Hardware Configuration 2.4.8 AT/ATX Select (JP10) Function Pin closed Illustration ATX Mode (default) AT Mode Note: AT: Auto power on; ATX: Manual power on MI1000 User’s Manual...

  • Page 28: Connectors Quick Reference

    Connectors Quick Reference Connector Function COM #1 (upper) / COM #2 (bottom) Stack Connector DP+ #1 / DP+ #2 Stack Connector eDP 40-pin Connector Dual USB 3.2 Stack Connector 2.5G LAN (KTI226V)+ USB 3.2 Gen2 Port (USB Port with power control) 2.5G LAN (KTI226LM) + USB3.2 Gen2 SATA Port SATA Port...

  • Page 29: Com #1 (Upper) / Com #2 (Bottom) Stack Connector (Cn1)

    Hardware Configuration 2.5.1 COM #1 (upper) / COM #2 (bottom) Stack Connector (CN1) Remarks: COM1 RS-232/422/485 is jumperless, configurable in BIOS. Signal Name RS-232 RS-422 RS-485 DATA- DATA+ Ground Ground Ground MI1000 User’s Manual...

  • Page 30: Dp+ #1 / Dp+ #2 (Cn2) Stack Connector

    2.5.2 DP+ #1 / DP+ #2 (CN2) Stack Connector 2.5.3 eDP 40-pin Connector (CN3) Remarks: KEL_SSL00-40S MI1000 User’s Manual...
  • Page 31 Hardware Configuration Signal Name Signal Name eDP_VCC eDP_VCC eDP_VCC eDP_VCC eDP_VCC Ground Ground Ground Ground Hot Plug detect Ground TXN3 TXP3 Ground TXN2 TXP2 Ground TXN1 TXP1 Ground TXN0 TXP0 Ground eDP_AUXP eDP_AUXN +3.3V +12V Ground BKLT_CTRL BKLT_EN +12V +3.3V Ground Note: Use JP1 to set Pin1~ Pin5 voltage;...

  • Page 32: Dual Usb 3.2 Stack Connector (Cn4)

    2.5.4 Dual USB 3.2 Stack Connector (CN4) 2.5.5 2.5G LAN (KTI226V) + USB 3.2 Gen2 (CN5) Remarks: USB Port with Power Control MI1000 User’s Manual...

  • Page 33: G Lan (Kti226Lm) + Usb 3.2 Gen2 (Cn6)

    Hardware Configuration 2.5.6 2.5G LAN (KTI226LM) + USB 3.2 Gen2 (CN6) 2.5.7 SATA Port (CN7, CN8, CN10, CN11) Signal Name Ground Ground Ground MI1000 User’s Manual...

  • Page 34: Hd Audio Jacks (Cn9)

    2.5.8 HD Audio Jacks (CN9) 2.5.9 LVDS Backlight Connector (J2) Remarks: E-CALL_0110-161-040 Signal Name +12V / 1.5A Backlight Enable Brightness Control Ground Note: Use JP1 to set Pin3 voltage. MI1000 User’s Manual...

  • Page 35: M-Key Nvme (Cpu) Socket (J3)

    Hardware Configuration 2.5.10 M.2 M-Key NVME (CPU) Socket (J3) 2.5.11 DDR5 SO-DIMM CHA/CHAB (J4 / J5) MI1000 User’s Manual...

  • Page 36: 2-Port Usb 2.0 Ports (J6, J7)

    2.5.12 2-Port USB 2.0 Ports (J6, J7) Signal Name Signal Name 5VDUAL / 0.5A USB_PN USB_PP USB_PP USB_PN 5VDUAL / 0.5A 2.5.13 M.2 M-Key Socket (J8) MI1000 User’s Manual...

  • Page 37: 24-Pin Atx Power Connector (J9)

    Hardware Configuration 2.5.14 24-pin ATX Power Connector (J9) Signal Signal 3.3V 3.3V -12V 3.3V Ground Ground PS-ON Ground Ground Ground Ground Ground Power good 5VSB +12V +12V Ground 3.3V MI1000 User’s Manual...

  • Page 38: Espi Debug (Factory Use Only) (J10)

    2.5.15 eSPI Debug (Factory use only) (J10) MI1000 User’s Manual...

  • Page 39: Digital I/O (4-In, 4-Out) (J12)

    Hardware Configuration 2.5.16 Digital I/O (4-in, 4-out) (J12) Remarks: E-CALL_0196-01-200-100 Signal Signal Ground +5V(0.5A) Out3 Out1 Out2 Out0 MI1000 User’s Manual...

  • Page 40: Rtc Battery Connector (J14)

    2.5.17 RTC Battery Connector (J14) Note: Coin battery with cable. Signal Name Ground 2.5.18 M.2 E-Key (w/ Power Control) Socket (J15) Remarks: J15 supports CNVi MI1000 User’s Manual...

  • Page 41: Spi Flash Connector (Factory Use Only) (J16)

    Hardware Configuration 2.5.19 SPI Flash Connector (Factory use only) (J16) 2.5.20 Audio Pin Header for Chassis Front Panel (J17) Remarks: E-CALL_0126-01-2821009 Signal Signal MIC IN_L Ground MIC IN_R LINE_R Ground Sense LINE_L Ground MI1000 User’s Manual...

  • Page 42: Front Panel Settings Connector (J18)

    2.5.21 Front Panel Settings Connector (J18) Signal Signal Power BTN- Power BTN+ HDD LED+ HDD LED- Reset BTN- Reset BTN+ Power LED+ Power LED- J18 is utilized for system indicators to provide light indication of the computer activities and switches to change the computer status. It provides interfaces for the following functions: ⚫...

  • Page 43: Dual-Channel Lvds Cha (J19)

    Hardware Configuration 2.5.22 Dual-Channel LVDS CHA (J19) Remarks: HRS_DF20EG-20DP-1V(52) Signal Signal LVSAO_P LVSAO_N Ground Ground LVSBO_P LVSBO_N Ground Ground LVSCO_P LVSCO_N Ground Ground LVSCKO_P LVSCKO_N Ground Ground LVSDO_P LVSDO_N +3.3V /+5V +3.3V /+5V Note: Use JP4 to set Pin19~Pin20 voltage.Total current: 1A MI1000 User’s Manual...

  • Page 44: Dual-Channel Lvds Chb (J20)

    2.5.23 Dual-Channel LVDS CHB (J20) Remarks: HRS_DF20EG-20DP-1V(52) Signal Signal LVSAE_P LVSAE_N Ground Ground LVSBE_P LVSBE_N Ground Ground LVSCE_P LVSCE_N Ground Ground LVSCKE_P LVSCKE_N Ground Ground LVSDE_P LVSDE_N +3.3V /+5V +3.3V /+5V Note: Use JP4 to set Pin19~Pin20 voltage.Total current: 1A MI1000 User’s Manual...

  • Page 45: Cpu Fan Power Connector (Cpu_Fan1)

    Hardware Configuration 2.5.24 CPU Fan Power Connector (CPU_FAN1) Remarks: PWM only. Signal Name Ground +12V Rotation detection Control MI1000 User’s Manual...

  • Page 46: System Fan Power Connector (Sys_Fan1)

    2.5.25 System Fan Power Connector (SYS_FAN1) Remarks: PWM only. Signal Name Ground +12V Rotation detection Control MI1000 User’s Manual...

  • Page 47: Atx Power Connector For 12V Power (Atx_12V)

    Hardware Configuration 2.5.26 ATX Power Connector for 12V Power (ATX_12V) Remarks: This connector supplies the CPU operating voltage. Signal Signal Ground +12V Ground +12V Ground +12V Ground +12V 2.5.27 PCIe (x16) Slot (PCIE1) MI1000 User’s Manual...
  • Page 48 This page is intentionally left blank. MI1000 User’s Manual...

  • Page 49: Chapter 3 Drivers Installation

    Chapter 3 Drivers Installation This chapter introduces installation of the following drivers: • ® Intel Chipset Software Installation Utility • VGA Driver • HD Audio Driver • LAN Drivers • ® Intel ME Drivers • ® Intel Serial I/O Drivers...

  • Page 50: Introduction

    Introduction This section describes the installation procedures for software and drivers. The software and drivers are included with the motherboard. If you find anything missing, please contact the distributor where you made the purchase. The contents of this section include the following: Note: After installing your Windows operating system, you must install the ®...
  • Page 51 Hardware Configuration ® When the Welcome screen to the Intel Chipset Device Software appears, click Next. Accept the License Agreement and click Accept. On the Readme File Information screen, click Install. Press Finish to complete the setup process. MI1000 User’s Manual...

  • Page 52: Vga Driver Installation

    VGA Driver Installation Run the drivers disk. Click Intel on the left pane and then Intel(R) AlderLake-S/RaptorLake-S Chipset Drivers, and Intel(R) HD Graphics Driver on the right pane. When the Intel Graphics Driver Installer screen appears, click Begin installation. MI1000 User’s Manual...
  • Page 53 Hardware Configuration Click I agree to accept the INTEL SOFTWARE LICENSE AGREEEMENT. Continue for the installer to start installing the new graphics driver… When the message “Installation complete!” appears, restart your system in order to apply the driver changes. MI1000 User’s Manual...

  • Page 54: Realtek Hd Audio Driver Installation

    Realtek HD Audio Driver Installation Run the drivers disk. Click Intel on the left pane and then Intel(R) AlderLake-S/RaptorLake-S Chipset Drivers on the right.Click Intel on the left pane and then Intel(R) AlderLake-S/RaptorLake-S Chipset Drivers, and Realtek High Definition Audio Driver on the right pane.

  • Page 55: Lan Drivers Installation

    Hardware Configuration LAN Drivers Installation Run the drivers disk. Click Intel on the left pane and then Intel(R) AlderLake-S/RaptorLake-S Chipset Drivers, and Intel PRO LAN Network Drivers on the right pane. Click Intel Drivers and Software. MI1000 User’s Manual...
  • Page 56 When the Welcome to the install wizard for Intel(R) Nework Connection screen appears, click Next. On the next screen, accept the terms in the License Agreement and click Next. On the Setup Options screen, select the program features you want to be installed.

  • Page 57: Intel ® Me Drivers Installation

    Hardware Configuration ® Intel ME Drivers Installation Run the drivers disk. Click Intel on the left pane and then Intel(R) AlderLake-S/RaptorLake-S Chipset Drivers, and Intel(R) ME Drivers on the right pane. When the Welcome screen to the Intel® Management Engine Components appears, click Next.
  • Page 58 This page is intentionally left blank. MI1000 User’s Manual...

  • Page 59: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows: • Main Settings • Advanced Settings • Chipset Settings • Security Settings •...

  • Page 60: Introduction

    4.1 Introduction The BIOS (Basic Input/Output System) installed in the ROM of your ® computer system supports Intel processors. The BIOS provides critical low-level support for standard devices such as disk drives, serial ports and parallel ports. It also provides password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

  • Page 61: Main Settings

    Hardware Configuration 4.3 Main Settings BIOS Setting Description System Language Choose the system default language. Sets the date. Use the <Tab> key to switch System Date between the date elements. Set the time. Use the <Tab> key to switch System Time between the time elements.
  • Page 62 4.4.1 Connectivity Configuration BIOS Setting Description This option configures Connectivity [Auto Detection] means that if Discrete solution is CNVi Mode discovered it will be enabled by default. Otherwise Integrated solution (CNVi) will be enabled; [Disable Integrated] disables integrated solution. This is an option to Enable/Disable BT Audio Offload which enables audio input from BT device BT Audio Offload to the audio DSP and enables power efficient...
  • Page 63 Hardware Configuration 4.4.2 CPU Configuration BIOS Setting Description When enable, a VMM can utilize the Intel (VMX) Virtualization additional hardware capabilities provided Technology by Vanderpool Technology. Number of P-cores to enable in each Active Performance-cores processor package. Note: Number of Cores and E-cores are looked at together.
  • Page 64 4.4.3 Power & Performance BIOS Setting Description CPU – Power Management Control Options CPU-Power Management Control Allows more than two frequency ranges to be Intel(R) SpeedStep supported Enable/Disable Intel(R) Speed Shift Intel(R) Speed Shift Technology support. Enabling will expose the Technology CPPC v2 interface to allow for hardware controlled P-states.
  • Page 65 Hardware Configuration Enable/Disable CPU Power Management. C states Allows CPU to go to C states when it is not 100% utilized. When enabled, CPU will switch to minimum Enhanced C states speed when all cores enter C-State. Maximum Package C State Limit Setting. Package C State CPU Default: Leaves to Factory default Limite...
  • Page 66 4.4.4 PCH-FW Configuration MI1000 User’s Manual...
  • Page 67 Hardware Configuration 4.4.5 Trusted Computing BIOS Setting Description Enables / Disables BIOS support for security Security Device device. OS will not show security device. TCG Support EFI protocol and INTIA interface will not be available. Option: SHA256 / SHA384 / Enabled / Disabled SH3_256 PCR Bank Schedule an operation for the security device.
  • Page 68 4.4.6 ACPI Settings BIOS Setting Description Enable ACPI Auto Enables / Disables BIOS ACPI Auto Configuration Configuration. Enables / Disables the system ability to Enable Hibernation hibernate (OS/S4 Sleep State). This option may be not effective with some OS. Select the highest ACPI sleep state the system ACPI Sleep State will enter when the SUSPEND button is pressed.
  • Page 69 Hardware Configuration 4.4.7 F81964 Super IO Configuration BIOS Setting Description Sets parameters of Serial Ports. Serial Port Enables / Disables the serial port and select an Configuration optimal setting for the Super IO device. 4.4.7.1. Serial Port 1 Configuration MI1000 User’s Manual...
  • Page 70 4.4.7.2. Serial Port 2 Configuration MI1000 User’s Manual...
  • Page 71 Hardware Configuration 4.4.8 Hardware Monitor BIOS Setting Description Smart Fan Control Smart Fan Mode Select Configuration These fields are the parameters of the hardware monitoring function feature of the Temperatures / motherboard. The values are read-only values Voltages as monitored by the system and show the PC health status.
  • Page 72 4.4.9 USB Configuration BIOS Setting Description • Enabled enables Legacy USB support. • Auto disables legacy support if there is no Legacy USB Support USB device connected. • Disabled keeps USB devices available only for EFI applications. This is a workaround for OSes without XHCI XHCI Hand-off hand-off support.
  • Page 73 Hardware Configuration 4.4.10 Network Stack Configuration BIOS Setting Description Network Stack Enables / Disables UEFI Network Stack. Enables / Disables IPv4 PXE Boot Support. IPv4 PXE Support If disabled, Ipv4 PXE boot option will not be created. Enables / Disables IPv4 HTTP Boot Support. IPv4 HTTP Support If disabled, Ipv4 HTTP boot option will not be created.
  • Page 74 4.4.11 NVMe Configuration MI1000 User’s Manual...

  • Page 75: Chipset Settings

    Hardware Configuration 4.5 Chipset Settings BIOS Setting Description System Agent (SA) System Agent (SA) parameters Configuration PCH-IO PCH parameters Configuration 4.5.1 System Agent (SA) Configuration 4.5.1.1. Memory Configuration MI1000 User’s Manual...
  • Page 76 BIOS Setting Description Memory Configuration Memory Configuration Parameters Maximum Memory Maximum Memory Frequency Selction in Frequency ECC Support Enable/disable DDR ECC Support Max TOLUD Maximum valude of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. 4.5.1.2.
  • Page 77 Hardware Configuration BIOS Setting Description Select which of IGFX/PEG/PCI graphics device Primary Display should be primary display or select HG for hybrid graphics. External Gfx Card External Gfx Card Primary Dispplay Primary Display Configuration Configuration Keep IGFX enabled based on the setup Internal Graphics options.
  • Page 78 Select the Active LFP Configuration. No LVDS: VBIOS does not enable LVDS. Int-LVDS VBIOS enables LVDS driver by integrated encoder. Active LFP SVDO LVDS: VBIOS enables LVDS driver by SDVO encoder. eDP Port-A: LFP driveㄋby Int-DisplayPort encoder from Port-A. Panel Color Depth Select the LFP Panel Color Depth Backlight Brightness Set VBIOS brightness.
  • Page 79 Hardware Configuration BIOS Setting Description VT-d VT-d capability Control Iommu Pre- Enable IOMMU in pre-boot environment (If boot Behavior DMAR table is installed in DXE and if VTD_INFO_PPI is intstalled in PEI.) X2APIC Opt Out Options: Enabled/Disabled DMA control Options: Enabled/Disabled Guarantee Above 4GB MMIO Options: Enabled/Disabled...
  • Page 80 4.5.2.1. SATA Configuration: BIOS Setting Description SATA Controller(s) Enables / Disables the SATA device. SATA Port # Enables / Disables SATA ports. SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive Enable/Disable STA Port # DevSlp. For DevSlp to work, both hard drive and SATA port need to support DEVSlp function, SATA Port # DevSlp...

  • Page 81: Security Settings

    Hardware Configuration 4.6 Security Settings BIOS Setting Description Administrator Sets administrator password. Password User Password Set user password. Secure Boot Configures Secure Boot. MI1000 User’s Manual...
  • Page 82 4.6.1 Secure Boot BIOS Setting Description Secure Boot feature is Active if Secure Boot is enabled. Platform Key (PK) Is enrolled and the Secure Boot system is in User mode. The mode change requires platform reset. Secure Boot mode options: Standard or Custom.

  • Page 83: Boot Settings

    Hardware Configuration 4.7 Boot Settings BIOS Setting Description Number of seconds to wait for setup activation Setup Prompt key. Timeout 65535(0xFFFF) means indefinite waiting. Bootup NumLock Selects the keyboard NumLock state. State Quiet Boot Enables / Disables Quiet Boot option. Fast Boot Enables or disables boot with initialization of a minimal set of devices required to launch...

  • Page 84: Save & Exit Settings

    4.8 Save & Exit Settings BIOS Setting Description Save Changes and Exits system setup after saving the changes. Exit Discard Changes Exits system setup without saving any and Exit changes. Save Changes and Resets the system after saving the changes. Reset Discard Changes Resets system setup without saving any...

  • Page 85: Appendix

    Appendix This section provides the mapping addresses of peripheral devices and the sample code of watchdog timer configuration.

  • Page 86: I/O Port Address Map

    I/O Port Address Map Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used. Address Device Description 0x00000A00-0x00000A0F Motherboard resources 0x00000A10-0x00000A1F Motherboard resources 0x00000A20-0x00000A2F...
  • Page 87 Appendix Address Device Description 0x000000AC-0x000000AD Programmable interrupt controller 0x000000B0-0x000000B1 Programmable interrupt controller 0x000000B4-0x000000B5 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000004D0-0x000004D1 Programmable interrupt controller 0x00004000-0x0000403F Intel(R) UHD Graphics 770 0x000003F8-0x000003FF Communications Port (COM1) 0x000002F8-0x000002FF Communications Port (COM2) 0x0000EFA0-0x0000EFBF Intel(R) SMBus - 7AA3 0x00004090-0x00004097...

  • Page 88: Interrupt Request Lines (Irq)

    Interrupt Request Lines (IRQ) The following table shows the IRQ used by the devices on board. Level Function Intel(R) USB 3.20 eXtensible Host IRQ 4294967290 Controller - 1.20 (Microsoft) IRQ 4294967289 Intel(R) Management Engine Interface #1 IRQ 4294967293 Intel(R) PCI Express Root Port #4 - 7ABB Intel(R) Serial IO I2C Host Controller - IRQ 27 7ACC...

  • Page 89: Watchdog Timer Configuration

    Appendix Watchdog Timer Configuration The Watchdog Timer (WDT) is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock.
  • Page 90 bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime); if (bTime) EnableWDT(bTime); } else DisableWDT(); } return 0; //--------------------------------------------------------------------------- void EnableWDT(int interval) unsigned char bBuf; bBuf = Get_F81964_Reg(0x2B); bBuf &= (~0x20); Set_F81964_Reg(0x2B, bBuf); //Enable WDTO Set_F81964_LD(0x07); //switch to logic device 7 Set_F81964_Reg(0x30, 0x01);...
  • Page 91 Appendix // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //--------------------------------------------------------------------------- #include "F81964.H" #include <dos.h>...
  • Page 92 //--------------------------------------------------------------------------- void Set_F81964_Reg( unsigned char REG, unsigned char DATA) Unlock_F81964(); outportb(F81964_INDEX_PORT, REG); outportb(F81964_DATA_PORT, DATA); Lock_F81964(); //--------------------------------------------------------------------------- unsigned char Get_F81964_Reg(unsigned char REG) unsigned char Result; Unlock_F81964(); outportb(F81964_INDEX_PORT, REG); Result = inportb(F81964_DATA_PORT); Lock_F81964(); return Result; //--------------------------------------------------------------------------- //--------------------------------------------------------------------------- // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE.

  • Page 93: Onboard Connector Types

    Appendix Onboard Connector Types Compatible Mating Function Connector Onboard Type Type for Reference USB 2.0 Hao Guo Xing Ye Hirose Connector DF11-8S-PA66H DF11-8DS-2C SATA Power Hao Guo Xing Ye Connector WAFER25-104S-2442-ST 171822-4 Dupont Digital I/O E-CALL 10P 2.0 mm-pitch Connector E-CALL_0196-01-200-100 (female) Dupont...

  • Page 94: Mi1000Af Usb Power Control Bit Mapping

    MI1000AF USB Power Control Bit Mapping. Function Connector Software Mapping M.2 – E-Key bit_3 USB 3.2 bit_4 MI1000 User’s Manual...
