- Page 1 MI888 Intel Pineview-M/ Pineview-D +ICH8M ® Luna-Pier / Luna-Pier Refresh Platform Mini-ITX Motherboard USER’S MANUAL Version 1.0...
- Page 2 Intel and Luna-Pier are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners. MI888 User’s Manual...
-
Page 3: Table Of Contents
MI888 Specifications ..............7 Board Dimensions ................ 8 Installations ............9 Installing the Memory ..............10 Setting the Jumpers ..............11 Connectors on MI888 ..............15 BIOS SETUP ............ 23 Drivers Installation ........43 Intel Chipset Software Installation Utility ......... 44 Intel Pineview Chipset Family Graphics Driver Installation .. - Page 4 This page is intentionally left blank. MI888 User’s Manual...
-
Page 5: Introduction

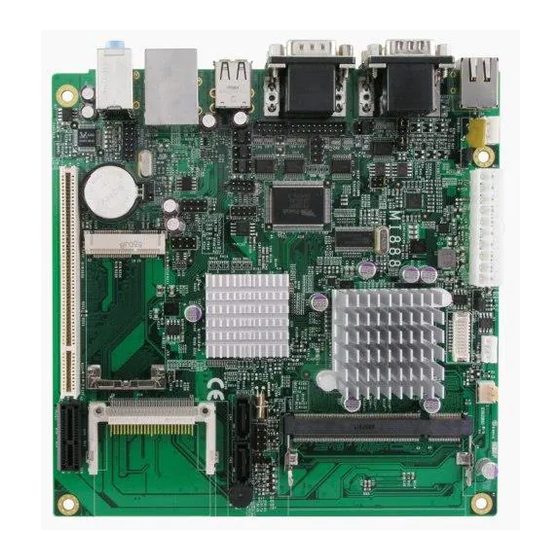

INTRODUCTION Introduction MI888 Mini ITX Motherboard MI888 Edge Connectors MI888 User’s Manual... -
Page 6: Checklist
INTRODUCTION Checklist Your MI888 package should include the items listed below. • The MI888 Intel ® Luna-Pier Mini-ITX motherboard • This User’s Manual • 1 CD containing chipset drivers and flash memory utility • Cable kit (USB, Serial port, Serial ATA) -
Page 7: Mi888 Specifications
Form Factor Intel® Pineview-M & Pineview-D Microprocessor (45nm CPU Type Technology) CPU Speed Atom SC N450 1.66 GHz/ 512KB L2 cache (MI888) Atom DC D510 1.66GHz / 1MB L2 cache (MI888-D5) Green /APM APM1.2 BIOS AMI BIOS, support ACPI Function Intel®... -
Page 8: Board Dimensions
INTRODUCTION Board Dimensions MI888 User’s Manual... -
Page 9: Installations
INSTALLATIONS Installations This section provides information on how to use the jumpers and connectors on the MI888 in order to set up a workable system. The topics covered are: Installing the Memory ................. 10 Setting the Jumpers ................11 Connectors on MI888 ................15... -
Page 10: Installing The Memory
INSTALLATIONS Installing the Memory The MI888 board supports one DDR667 DDR2 memory. Remarks: N450 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel D510 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel Installing and Removing Memory Modules... -
Page 11: Setting The Jumpers
INSTALLATIONS Setting the Jumpers Jumpers are used on MI888 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on MI888 and their respective functions. -
Page 12: Jumper Locations On Mi888
INSTALLATIONS Jumper Locations on MI888 Jumper Locations on MI888 ..............12 JP1: LCD Panel Power Selection ............13 JP3, JP4, JP5: RS232/422/485 (COM1) Selection ......13 JP6: COM1 RS232 RI/+5V/+12V Power Setting ........ 13 JP8: COM4 RS232 RI/+5V/+12V Power Setting ........ 13 JP9: COM3 RS232 RI/+5V/+12V Power Setting ........ -
Page 13: Jp1: Lcd Panel Power Selection
1-3 & 2-4 JP6: COM1 RS232 RI/+5V/+12V Power Setting Setting Function Pin 1-2 +12V Short/Closed Pin 3-4 Short/Closed Pin 5-6 Short/Closed JP8: COM4 RS232 RI/+5V/+12V Power Setting Setting Function Pin 1-2 +12V Short/Closed Pin 3-4 Short/Closed Pin 5-6 Short/Closed MI888 User’s Manual... -
Page 14: Jp9: Com3 Rs232 Ri/+5V/+12V Power Setting
Pin 1-2 +12V Short/Closed Pin 3-4 Short/Closed Pin 5-6 Short/Closed JP7: COM4 RS232 RI/+5V/+12V Power Setting Setting Function Pin 1-2 +12V Short/Closed Pin 3-4 Short/Closed Pin 5-6 Short/Closed JP11: Clear CMOS Setting JP11 Setting Normal Clear CMOS MI888 User’s Manual... -
Page 15: Connectors On Mi888
INSTALLATIONS Connectors on MI888 The connectors on MI888 allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following table lists the connectors on MI888 and their respective functions. Connector Locations on MI888 ............16 CN8: PS/2 Keyboard and PS/2 Mouse Connectors ...... -
Page 16: Connector Locations On Mi888
INSTALLATIONS Connector Locations on MI888 MI888 User’s Manual... -
Page 17: Cn8: Ps/2 Keyboard And Ps/2 Mouse Connectors
PS/2 Keyboard Signal Name Keyboard Mouse Signal Name Keyboard data Mouse data N.C. N.C. Keyboard clock Mouse clock N.C. N.C. CN2: COM1 RS232/RS422/RS485 and VGA Connector Pin # Signal Name RS-232 R2-422 RS-485 DATA- DATA+ Ground Ground Ground MI888 User’s Manual... -
Page 18: Cn3: Com2/Rs232 And Com3/Rs232 Connector
Signal Name Pin # Pin # Signal Name COM2/RS232 Not Used Signal Name Pin # Pin # Signal Name COM3/RS232 Not Used CN6: 10/100/1000 RJ-45 and USB3/4 Ports USB1: USB5/6 Ports CN7: Line-in, Line-out & Microphone Connector MI888 User’s Manual... -
Page 19: Atx1: Atx Power Supply Connector
J3 : LVDS(18bit) Connectors The LVDS connectors on board Signal Name Pin # Pin # Signal Name TX0- TX0+ Ground Ground TX1- TX1+ 5V/3.3V Ground TX2- TX2+ Ground Ground TXC- TXC+ 5V/3.3V ENABKL +12V +12V J4: DDR2 SO-DIMM MI888 User’s Manual... -
Page 20: J5: Digital I/O
CTS, Clear to send DTR, Data terminal ready RI, Ring indicator GND, ground Not Used J8: Power LED The power LED indicates the status of the main power switch. Pin # Signal Name Power LED No connect Ground MI888 User’s Manual... -
Page 21: J9: System Function Connector
Orientation is not required when making a connection to this header. +5V and 5VSB Signals: Pins 7 and 8 Pin # Signal Name +5VSB J10: SPI Flash Connector (factory use only) J12: USB5/USB6 Connector Signal Name Signal Name Ground Ground MI888 User’s Manual... -
Page 22: J13: Usb7/Usb8 Connector
PCI1: PCI Slot (supports 2 Master) PCIE1: PCIEX1 Slot FAN1: CPU Fan Power Connector This is a 3-pin header for system fans. The fan must be a 12V (500mA). Pin # Signal Name Ground +12V Rotation detection MI888 User’s Manual... -
Page 23: Bios Setup
BIOS Introduction ................23 BIOS Setup ..................24 Main BIOS Setup ................25 Advanced Settings ................26 Advanced PCI/PnP Settings ..............34 Boot Settings ..................35 Security Settings .................. 37 Advanced Chipset Settings ..............38 Exit Options ..................41 MI888 User’s Manual... -
Page 24: Bios Introduction
<PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit. When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices. MI888 User’s Manual... -
Page 25: Main Bios Setup
These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases. MI888 User’s Manual... -
Page 26: Advanced Settings
The fields in each section are shown in the following pages, as seen in the computer screen. Please note that setting the wrong values may cause the system to malfunction. If unsure, please contact technical support of your supplier. MI888 User’s Manual... -
Page 27: Max Cpuid Value Limit
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled, only one thread per enabled core is enabled. Intel SpeedStep(tm) tech (Pineview-M) Disabled: Disable GV3 Enabled: Enable GV3 MI888 User’s Manual... -
Page 28: Ide Configuration
Serial Port3 Address [3E8] <- Select Screen Serial PortC IRQ [IRQ11] Serial Port4 Address [2E8] ↑↓ Select Item Serial PortD IRQ [IRQ10] Change Field Restore on AC Power Loss [Power Off] General Help F10 Save and Exit ESC Exit MI888 User’s Manual... -
Page 29: Onboard Serial Port
The Hardware Health Configuration menu is used to show the operating temperature, fan speeds and system voltages. ACPI Shutdown Temperature The system will shut down automatically under OS with ACPI mode, when the CPU temperature reaches the configured temperature. MI888 User’s Manual... -
Page 30: Suspend Mode
64-bit Fixed System Description Tables. ACPI Version Features [ACPI v1.0] ACPI APIC support [Enabled] Different ACPI version Has some addition <- Select Screen ↑↓ Select Item Change Field General Help F10 Save and Exit ESC Exit MI888 User’s Manual... -
Page 31: Apm Configuration
APM. Power Management/APM [Enabled] Power Button Mode [On/Off] <- Select Screen Resume On Ring Disabled ↑↓ Select Item Resume On PME# Disabled Change Field Resume On RTC Alarm Disabled General Help F10 Save and Exit ESC Exit MI888 User’s Manual... -
Page 32: Power Button Mode
This option is used enable activity on the PCI PME (power managementevent) controller to wake up the system from a suspend or standby state Resume On RTC Alarm This option is used to specify the time the system should be awakened from a suspended state MI888 User’s Manual... -
Page 33: Legacy Usb Support
(12Mbps).This option is enabled by HiSpeed. BIOS EHCI Hand-Off Enabled/Disabled. This is a workaround for Oses without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. Legacy USB1.1 HC Support Support USB1.1 HC. MI888 User’s Manual... -
Page 34: Allocate Irq To Pci Vga
This assigns IRQ to PCI VGA card if card requests IRQ or doesn't assign IRQ to PCI VGA card even if card requests an IRQ. IRQ# Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device. MI888 User’s Manual... -
Page 35: Boot Settings
When disabled, this displays normal POST messages. When enabled, this displays OEM Logo instead of POST messages. AddOn ROM Display Mode This allows user to force BIOS/Option ROM of add-on cards to be displayed during quiet boot. Bootup Num-Lock This select the power-on state for numlock. MI888 User’s Manual... -
Page 36: Interrupt 19 Capture
When set to Enabled, the system waits for the F1 key to be pressed when error occurs. This allows option ROM to trap interrupt 19. Hit <DEL> Message Display This displays “Press <DEL> to run Setup” in POST. Interrupt 19 Capture This allows option ROMs to trap interrupt 19. MI888 User’s Manual... -
Page 37: Security Settings
Supervisor Password : Not Installed User Password : Not Installed Change Supervisor Password <- Select Screen Change User Password ↑↓ Select Item Enter Change Boot Sector Virus Protection [Disabled] General Help F10 Save and Exit ESC Exit MI888 User’s Manual... -
Page 38: Advanced Chipset Settings
Configure DRAM Timing by SPD When this item is enabled, the DRAM timing parameters are set according to the DRAM SPD (Serial Presence Detect). When disabled, you can manually set the DRAM timing parameters through the DRAM sub-items. MI888 User’s Manual... -
Page 39: Internal Graphics Mode Select
This option is used to select the type of flat panel connected to the system. Options include: 640x480 / 800x600 / 1024x768 / 1280x768 / 1280x800 / 1280x600. Spread Spectrum Clock By default, this field is set to Disabled. MI888 User’s Manual... -
Page 40: Usb Function
This option is disabled by default. HDA Controller This option is used to enable the Southbridge high definition audio controller. SMBUS Controller This option is enabled by default. Enable Onboard PCI option ROM This option is disabled by default. MI888 User’s Manual... -
Page 41: Exit Options
These default settings are optimal and enable all high performance features. Load Failsafe Defaults This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features. MI888 User’s Manual... - Page 42 BIOS SETUP This page is intentionally left blank. MI888 User’s Manual...
-
Page 43: Drivers Installation
Realtek High Definition Codec Audio Driver Installation ..48 Realtek RTL8111DL LAN Drivers Installation ......49 IMPORTANT NOTE: After installing your Windows operating system (Windows XP/ Vista/ 7), you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation. MI888 User’s Manual... -
Page 44: Intel Chipset Software Installation Utility
1. Insert the drivers DVD into the DVD drive. Click Intel and then Intel(R) Pineview Chipset Drivers. Click Intel(R) Chipset Software Installation Utility. 2. When the welcome screen to the Intel(R) Chipset Software Installation Utility appears, click Next to continue. MI888 User’s Manual... - Page 45 4. On the Readme Information screen, click Next to continue.When the Setup Progress screen appears, click Next to continue. 5. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect. MI888 User’s Manual...
-
Page 46: Intel Pineview Chipset Family Graphics Driver Installation
1. Insert the drivers DVD into the DVD drive. Click Intel and then Intel(R) Pineview Chipset Drivers. Click Intel(R) Pineview Chipset Family Graphics Driver. 2. When the welcome screen of the Intel(R) Graphics Media Accelerator Driver appears, click Next to continue. MI888 User’s Manual... - Page 47 3. Click Yes to to agree with the license agreement and continue the installation. 4. Click Next in the Readme File Information window. 5. Click Next in the Setup Progress window. 6. Setup is now complete. Click Finish to restart the computer and for changes to take effect. MI888 User’s Manual...
-
Page 48: Realtek High Definition Codec Audio Driver Installation
2.When the welcome screen to InstallShield Wizard for Realtek High Definition Audio Driver appears, click Next to start the installation. 3.When the InstallShieldWizard has finished performing maintenance operations on Realtek High Definition Codec Audio Audio Driver, click Finish to restart the computer. MI888 User’s Manual... -
Page 49: Realtek Rtl8111Dl Lan Drivers Installation
2. In the welcome screen of the InstallShield Wizard for REALTEK GbE & FE Ethernet PCI-E NIC Driver, click Next. 3. In the InstallShield Wizard screen, click Install to begin the installation. 4. InstallShield Wizard completed. Click Finish to exit the Wizard. MI888 User’s Manual... - Page 50 DRIVERS INSTALLATION This page is intentionally left blank. MI888 User’s Manual...
-
Page 51: Appendix
Serial Port #2(COM2) 360h - 36Fh Network Ports 3B0h - 3BFh Monochrome & Printer adapter 3C0h - 3CFh EGA adapter 3D0h - 3DFh CGA adapter 3E8h - 3EFh Serial Port #3(COM3) 3F8h - 3FFh Serial Port #1(COM1) MI888 User’s Manual... -
Page 52: Interrupt Request Lines (Irq)
Interrupt Cascade IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 Reserved IRQ6 Reserved IRQ7 Reserved IRQ8 Real Time Clock IRQ9 Reserved IRQ10 Serial Port #4 IRQ11 Serial Port #3 IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE MI888 User’s Manual... -
Page 53: Watchdog Timer Configuration
(ucDid == 0xA2) //W83627UHG?? goto Init_Finish; } W627UHG_BASE = 0x2E; result = W627UHG_BASE; ucDid = Get_W627UHG_Reg(0x20); if (ucDid == 0xA2) //W83627UHG?? goto Init_Finish; } W627UHG_BASE = 0x00; result = W627UHG_BASE; Init_Finish: return (result); //--------------------------------------------------------------------------- void Unlock_W627UHG (void) MI888 User’s Manual... - Page 54 LD); Lock_W627UHG(); //--------------------------------------------------------------------------- void Set_W627UHG_Reg( unsigned char REG, unsigned char DATA) Unlock_W627UHG(); outportb(W627UHG_INDEX_PORT, REG); outportb(W627UHG_DATA_PORT, DATA); Lock_W627UHG(); //--------------------------------------------------------------------------- unsigned char Get_W627UHG_Reg(unsigned char REG) unsigned char Result; Unlock_W627UHG(); outportb(W627UHG_INDEX_PORT, REG); Result = inportb(W627UHG_DATA_PORT); Lock_W627UHG(); return Result; //--------------------------------------------------------------------------- MI888 User’s Manual...
- Page 55 (W627UHG_BASE) #define W627UHG_DATA_PORT (W627UHG_BASE+1) //--------------------------------------------------------------------------- #define W627UHG_REG_LD 0x07 //--------------------------------------------------------------------------- #define W627UHG_UNLOCK 0x87 #define W627UHG_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_W627UHG(void); void Set_W627UHG_LD( unsigned char); void Set_W627UHG_Reg( unsigned char, unsigned char); unsigned char Get_W627UHG_Reg( unsigned char); //--------------------------------------------------------------------------- #endif //__W627UHG_H MI888 User’s Manual...
- Page 56 WDTInitial(void) unsigned char bBuf; Set_W627UHG_LD(0x08); ..............//switch to logic device 8 bBuf = Get_W627UHG_Reg(0x30); bBuf &= (~0x01); Set_W627UHG_Reg(0x30, bBuf);..............//Enable WDTO //--------------------------------------------------------------------------- void WDTEnable(unsigned char NewInterval) unsigned char bBuf; Set_W627UHG_LD(0x08); ......................Set_W627UHG_Reg(0x30, 0x01); ................ //enable timer MI888 User’s Manual...
- Page 57 APPENDIX bBuf = Get_W627UHG_Reg(0xF5); bBuf &= (~0x08); Set_W627UHG_Reg(0xF5, bBuf); ............//count mode is second Set_W627UHG_Reg(0xF6, NewInterval);..............//set timer //--------------------------------------------------------------------------- void WDTDisable(void) Set_W627UHG_LD(0x08); ......................Set_W627UHG_Reg(0xF6, 0x00); ............//clear watchdog timer Set_W627UHG_Reg(0x30, 0x00); ....................//--------------------------------------------------------------------------- MI888 User’s Manual...
-
Page 58: Digital I/O Sample Code
(W627UHG_BASE) #define W627UHG_DATA_PORT (W627UHG_BASE+1) //--------------------------------------------------------------------------- #define W627UHG_REG_LD 0x07 //--------------------------------------------------------------------------- #define W627UHG_UNLOCK 0x87 #define W627UHG_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_W627UHG(void); void Set_W627UHG_LD( unsigned char); void Set_W627UHG_Reg( unsigned char, unsigned char); unsigned char Get_W627UHG_Reg( unsigned char); //--------------------------------------------------------------------------- #endif //__W627UHG_H MI888 User’s Manual... - Page 59 (ucDid == 0xA2) //W83627UHG?? goto Init_Finish; } W627UHG_BASE = 0x00; result = W627UHG_BASE; Init_Finish: return (result); //--------------------------------------------------------------------------- void Unlock_W627UHG (void) outportb(W627UHG_INDEX_PORT, W627UHG_UNLOCK); outportb(W627UHG_INDEX_PORT, W627UHG_UNLOCK); //--------------------------------------------------------------------------- void Lock_W627UHG (void) outportb(W627UHG_INDEX_PORT, W627UHG_LOCK); //--------------------------------------------------------------------------- void Set_W627UHG_LD( unsigned char LD) MI888 User’s Manual...
- Page 60 LD); Lock_W627UHG(); //--------------------------------------------------------------------------- void Set_W627UHG_Reg( unsigned char REG, unsigned char DATA) Unlock_W627UHG(); outportb(W627UHG_INDEX_PORT, REG); outportb(W627UHG_DATA_PORT, DATA); Lock_W627UHG(); //--------------------------------------------------------------------------- unsigned char Get_W627UHG_Reg(unsigned char REG) unsigned char Result; Unlock_W627UHG(); outportb(W627UHG_INDEX_PORT, REG); Result = inportb(W627UHG_DATA_PORT); Lock_W627UHG(); return Result; //--------------------------------------------------------------------------- MI888 User’s Manual...
- Page 61 Winbond 83627UHG, program abort.\n"); return(1); Dio5Initial(); //for GPIO50..57 Dio5SetDirection(0x0F); //GP50..53 = input, GP54..57=output printf("Current DIO direction = 0x%X\n", Dio5GetDirection()); printf("Current DIO status = 0x%X\n", Dio5GetInput()); printf("Set DIO output to high\n"); Dio5SetOutput(0x0F); printf("Set DIO output to low\n"); Dio5SetOutput(0x00); return 0; MI888 User’s Manual...
- Page 62 Dio5SetDirection(unsigned char NewData) //NewData : 1 for input, 0 for output Set_W627UHG_LD(0x08); //switch to logic device 8 Set_W627UHG_Reg(0xE0, NewData); //--------------------------------------------------------------------------- unsigned char Dio5GetDirection(void) unsigned char result; Set_W627UHG_LD(0x08); //switch to logic device 8 result = Get_W627UHG_Reg(0xE0); return (result); //--------------------------------------------------------------------------- MI888 User’s Manual...
