Changing the Camera Source

The [CAM] button will displayed at the bottom of the camera screen
when the Alpine multi-camera selector (KCX-C250MC) is connected.
1
Touch the camera screen while the Off-Road Camera
screen is active.
The multi-view camera and accessory controller buttons
become visible. (Only if these accessories are connected.)
• The camera and accessory controller buttons will be cleared from
the camera screen after 5 seconds of no interaction.
2
Touch [CAM] to cycle the camera source.
: Off-Road Front Camera
: Off-Road Rear Camera
: Off-Road Side Camera

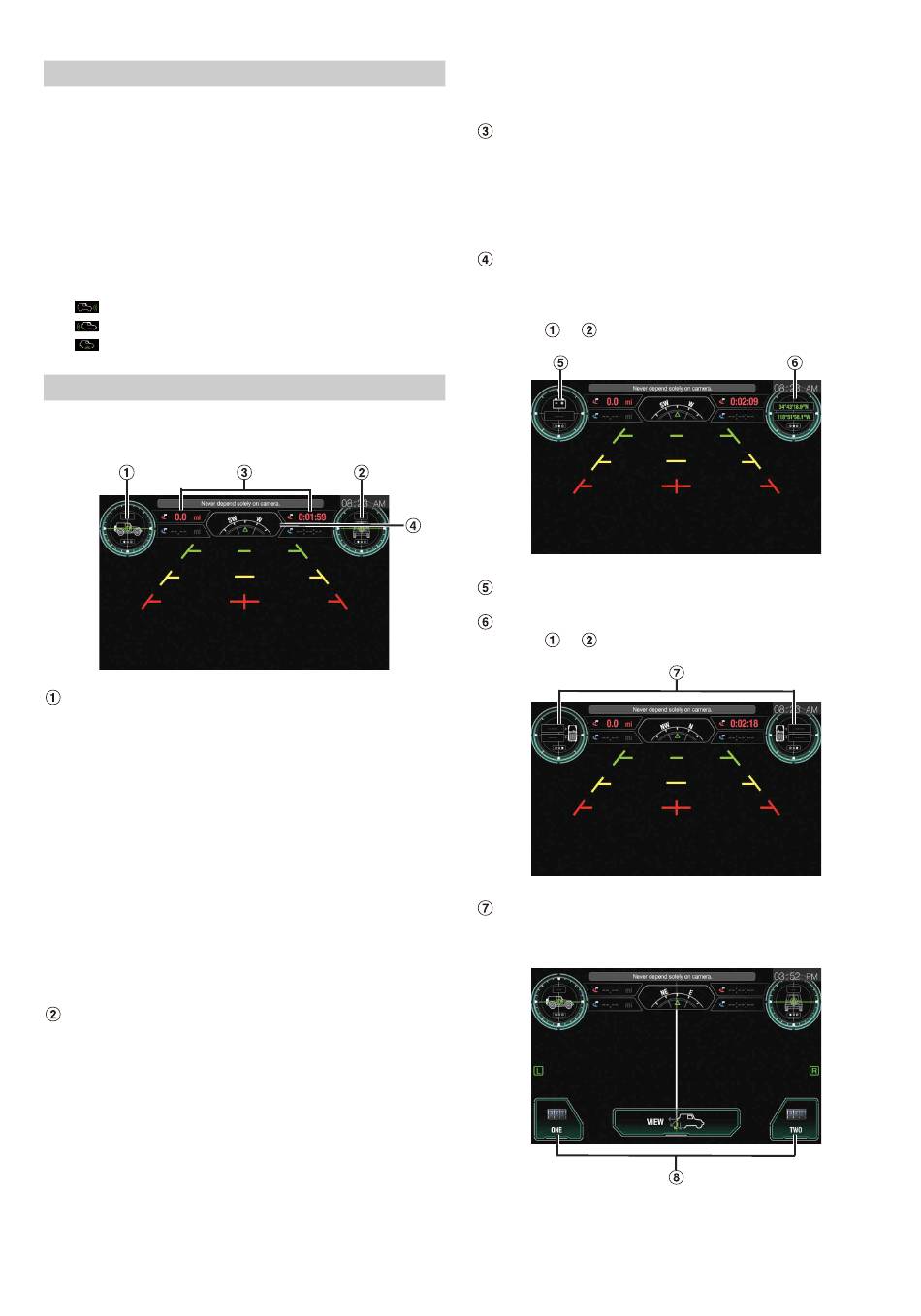

About the Off-Road Camera information

When the Off-Road Camera screen is displayed, Guidelines display
when the Off-Road Camera screen is active.
Vehicle Pitch angle
If properly calibrated, the value represents the vehicle pitching
angle.
When the Pitching angle is greater/lower than Inclinometer set
value, alert is displayed.
Green Normal: When the vehicle's pitching angle lower than
the lower limit Alarm value.
Yellow Low Alert: When the vehicle's pitching angle equal or over
the lower limit Alarm value, but lower than the
upper limit Alarm value.
Red High Alert: When the vehicle's pitching angle equal or over
the upper limit Alarm value.
• Long press Vehicle Pitching angle area, Inclinometer Setup is
displayed when your vehicle is parked.
• The Pitching angle data is from iDataLink.
• For alert value setting, see "Inclinometer Setup (X409 only)"
(page 40).
Vehicle Roll angle
If properly calibrated, the value represents the vehicle rolling
angle.
When the Rolling angle is greater/lower than Inclinometer set
value, alert is displayed.
Green Normal: When the vehicle's rolling angle lower than the
lower limit Alarm value.
Yellow Low Alert: When the vehicle's rolling angle equal or over
the lower limit Alarm value, but lower than the
upper limit Alarm value.
Red High Alert: When the vehicle's rolling angle equal or over
the upper limit Alarm value.
• Long press Vehicle Rolling angle area, Inclinometer Setup is
displayed when your vehicle is parked.
92
-EN
• The Rolling angle data is from iDataLink.
• For alert value setting, see "Inclinometer Setup (X409 only)"
(page 40).
Tracking, Back Tracking information
When tracking: Top: the distance/Time of tracking
Below: --.--/--:--:--
When Back Tracking: Top: the distance/Time of Back Tracking
Below: the distance/Time of tracking before
Back Tracking
Compass with direction of travel arrow
The vehicle position information is displayed.
There are 16 compass points in total: N, NE, E, SE, S, SW, W, NW,
NNW, NWW, SEE, SSE, SWW, SSW, NNE, NEE.
Touch or to switch display contents.
Battery Voltage
Latitude/Longitude
Touch or to switch display contents.
Tire Pressure
The Tire Pressure for Front-Left/Rear-Left/Front-Right/Rear-Right
is displayed.
