NOTE - To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and completely.
IMPORTANT – READ CAREFULLY
NOTE - The TriStar is a high performance, high
efficiency pump. When replacing most existing
pumps, you can use a TriStar pump with a lower
horsepower rating than the existing pump.
2" plumbing minimum
Required:
Recommended: 2 ½" plumbing or larger

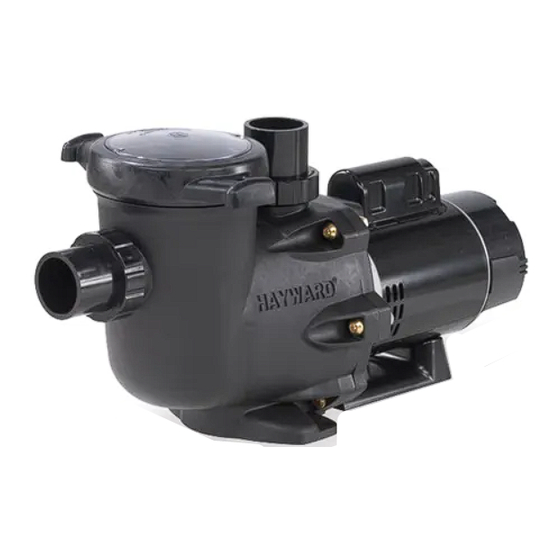

OWNER'S MANUAL
INSTALLATION, OPERATION & PARTS
TriStar
Hayward Pool Products
400 Connell Drive, Suite 6100, Berkeley Heights, NJ 07922
Phone: (908) 355-7995
www.hayward.com
Status: RELEASED Status Date: 20-Nov-21 User: Migrator
Pump Series
TriStar Pump Replacement Guide
TriStar
TriStar
3 Phase
Model No.
Model No.
Full Rated
Full Rated
Max Rated
HCP20053
---
SP3207X10 SP3007EEAZ SP3007X10AZ
HCP20073
SP3207EE SP3210X15 SP3010EEAZ SP3010X15AZ
HCP20103
SP3210EE SP3215X20 SP3015EEAZ SP3015X20AZ
HCP20153
SP3215EE SP3220X25 SP3020EEAZ SP3020X25AZ
HCP20203
SP3220EE SP3225X30 SP3025EEAZ SP3025X30AZ
HCP20303
SP3230EE
HCP20503
---
P/N: IS3200 Rev. M
TriStar
Super II
Model No.
Full Rated
---
---
---
---
Super II
Model No.
Max Rated
---
---
