User Guide EVAL-ADRF5714
TEST PROCEDURE

EXPECTED RESULTS

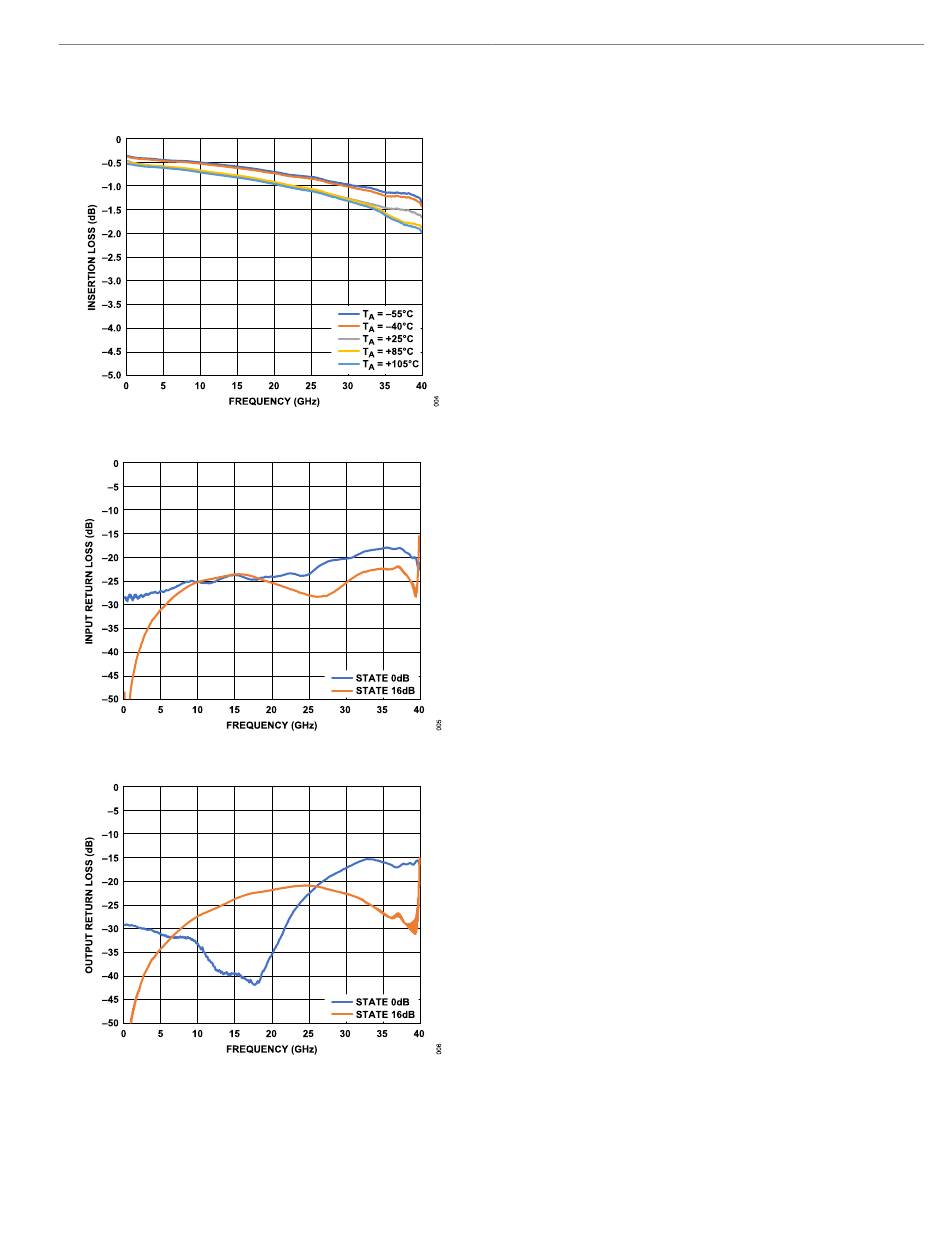

Figure 4. Insertion Loss vs. Frequency over Various Temperatures
Figure 5. Input Return Loss vs. Frequency
Figure 6. Output Return Loss vs. Frequency
