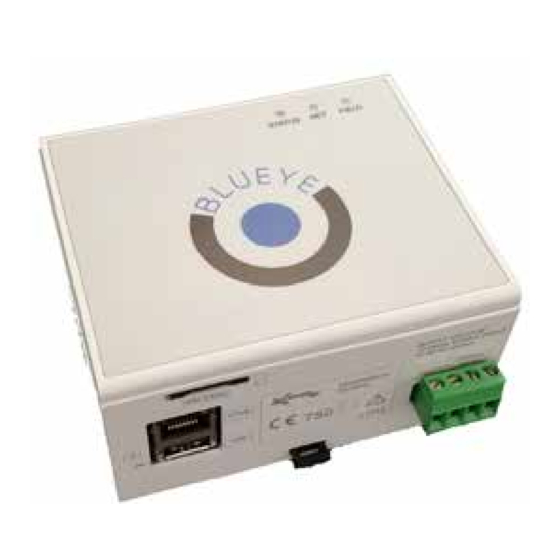

Blueye
EN
Installation, use and maintenance manual
24-03-2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueBox Blueye and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swegon BlueBox Blueye

Summary of Contents for Swegon BlueBox Blueye

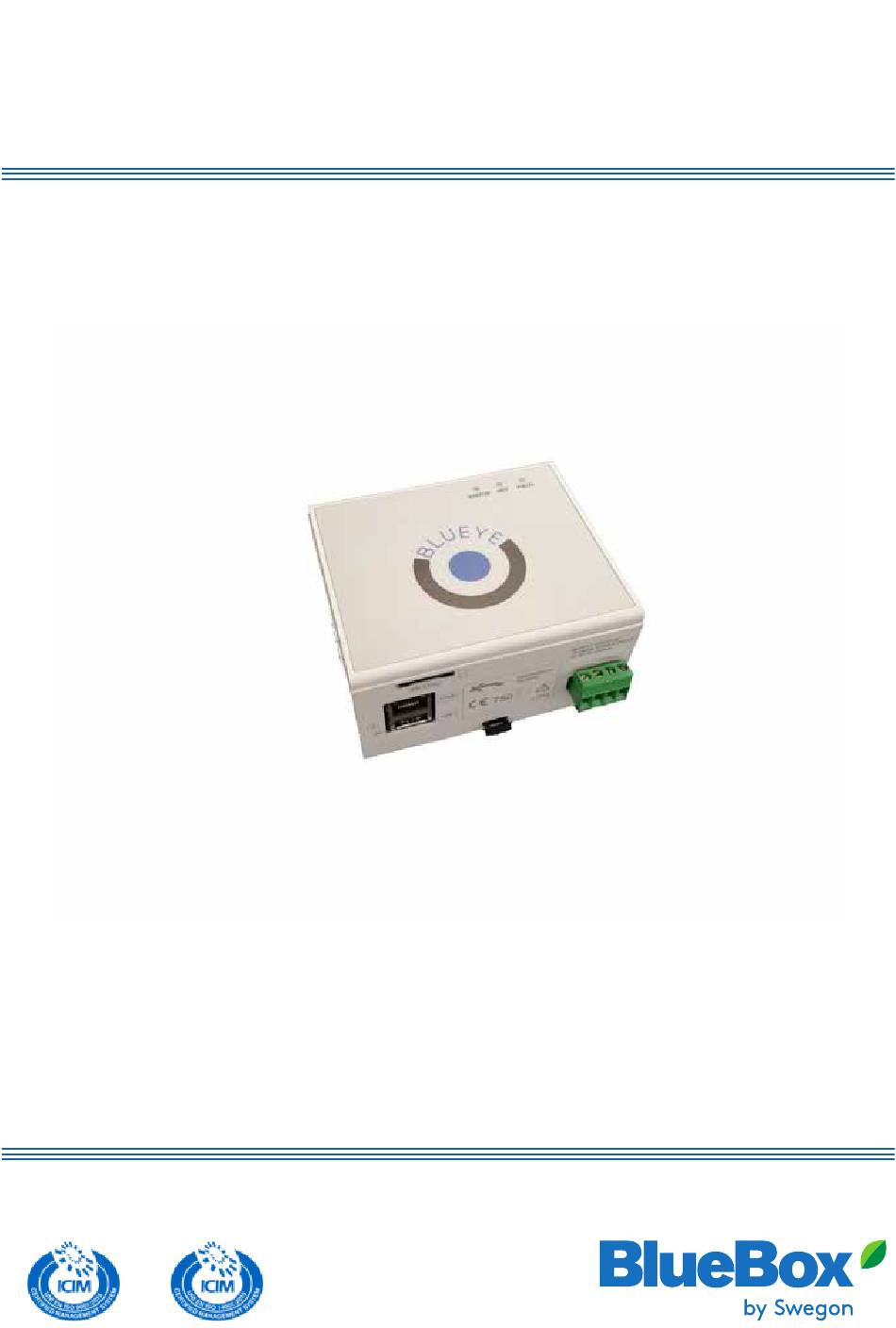

  • Page 1 Blueye Installation, use and maintenance manual 24-03-2022...
  • Page 2 THANK YOU Thank you for choosing our product. It is the result of many years’ experience and careful design and has been built with first-class quality materials and advan- ced technologies. Declaration or certificate of conformity also guarantees that the equipment meets the requirements of the European Machi- nery Safety Directive.

  • Page 3: Table Of Contents

    Contents Introduction Safety precautions General Description Connections Description of the terminals Detail of connections Description of the terminals Detail of connections of lower part Types of connection Connection to the Internet through 2G/3G network Connection to the Internet through ADSL Device access to the Internet Connection to the Internet through 3G or Ethernet Connection to the outside world...
  • Page 4 Modbus functionality Serial port (Modbus RTU) Ethernet port (Modbus TCP) Format of data Types of data managed by the protocol Addressing of data Function Code Guidelines for connection of peripherals on RS-485 8.7.1 Standard RS-485 8.7.2 Transmission cable 8.7.3 Network connection 8.7.4 Configurations to avoid 8.7.5...

  • Page 5: Introduction

    • Swegon Operations s.r.l. accepts no responsibility for malfunctioning, breakages, accidents or anything else that may be caused by not knowing or failing to apply the instructions given • Swegon Operations s.r.l. reserves the right to work on the product without being obliged to promptly update the user manuals We reserve the right to make changes without any prior notice.

  • Page 6: General Description

    Access to the platform takes place on request to cantarana.warranty@swegon.it. • The Blueye peripheral implements the Modbus Master protocol that interrogates the slaves (up to 5) with local polling time of up to 5 seconds.

  • Page 7: Connections

    CONNECTIONS 2.1 Description of the terminals 1. ETH1 Ethernet port 2. Micro SD Card 3. Mini USB OTG Port 4. 15 pin serial connector 5. Modem antenna connector 6. Indicator LEDs 7. Digital input / Power supply 8. SIM Card 9.

  • Page 8: Detail Of Connections

    2.2 Detail of connections 2.3 Description of the terminals 1. Ethernet Port ETH:1 This is a 10/100 Ethernet port 2. Micro SD Card: This slot can house a micro SD card (for future developments) 3. Mini USB OTG Port: (for future developments) 4.

  • Page 9: Detail Of Connections Of Lower Part

    2.4 Detail of connections of lower part DESCRIPTION PORT non-polarized POWER SUPPLY non-polarized 12-24 AC/DC DIGITAL INPUT (opto-isolated input) 7. Digital Input / Power Supply: 8. SIM Card Slot for GSM SIM (Mini-SIM format) 9. ETH0 Ethernet port: This is a 10/100 Ethernet port that can be used with WAN functions (for connection to the Internet) and/or LAN (to access local devices on IP network) 10.

  • Page 10: Types Of Connection

    TYPES OF CONNECTION 3.1 Connection to the Internet through 2G/3G network Translation from original instructions We reserve the right to make changes without any prior notice.

  • Page 11: Connection To The Internet Through Adsl

    3.2 Connection to the Internet through ADSL We reserve the right to make changes without any prior notice. Translation from original instructions...

  • Page 12: Device Access To The Internet

    DEVICE ACCESS TO THE INTERNET 4.3 Connection to the Internet through 3G or Ethernet To correctly configure the Blueye device, it is necessary to access through a web page. Once the IP address of the Blueye has been typed in (10.2.3.30 by default), the authentication password will be requested. As default for these devices, we have: username: admin password: MAC address of the ETH0 Ethernet port without the colon, therefore: 9c53cd00990b...

  • Page 13: Connection To The Outside World

    CONNECTION TO THE OUTSIDE WORLD The Blueye device can communicate with the outside world in two distinct ways: The first requires installation of a SIM Card that will allow navigation on the Internet, whereas the second requires connection, through special connection cable, of the device to an Internet access point provided by the existing IT infrastructure.

  • Page 14: First Configuration

    5.2.2 First Configuration To configure the Blueye device connection parameters, proceed as follows: Connect the eth0 port of the device to a computer through a direct Ethernet cable (patch UTP5). On the computer, set a static IP address IPv4 in class 10.2.3.x (example 10.2.3.29) and a subnet mask of 255.0.0.0. Translation from original instructions We reserve the right to make changes without any prior notice.
  • Page 15 Follow the instructions given in the "Device access to the Internet" chapter to carry out the authentication procedure (login). Open a web browser at the following address: http://10.2.3.30 Click on “Configuration”, and the following page will be displayed. “Configuration” page Enter information regarding the telephone service provider in the “GPRS/3G” field. You will have to configure the APN parameter (according to the chosen telephone service provider) and, if necessary, the username and password (leave blank if not used).
  • Page 16 You can check the settings made are correct through the “Status” page. Status page This gives some important information regarding the Blueye device configurations of its main features: for example, the unique IMEI number for each device. A setting example is given below. Error page Translation from original instructions We reserve the right to make changes without any prior notice.

  • Page 17: Connection To The Internet Through Existing Network

    5.3 Connection to the Internet through existing network If the Blueye device is connected to the Internet through an existing networking infrastructure, then proceed as described below. 5.3.1 First Configuration Connect the eth0 port of the device to a computer through a direct Ethernet cable (patch UTP5). On the computer, set a static IP address IPv4 in class 10.2.3.x (example 10.2.3.29) and a subnet mask of 255.0.0.0.

  • Page 18: Access To Cloud

    Open a web browser at the following address: http://10.2.3.30 Click on “Configuration”, and the following page will be displayed. “Configuration” page Enter information regarding the connection to the Web on the LAN eth0 port. Enter information regarding the connection to the device to be interrogated on the LAN eth1 port. Enter the method with which to connect to the Internet on “WAN”, in this case: If connection with the device to be interrogated takes place through RS-485 network, leave this field blank.

  • Page 19: Connection To The Internet Through Vpn (Connect)

    5.5 Connection to the Internet through VPN (Connect) The "Connect" function allows you to access your units provided with the Blueye device. Each Blueye device is configured with an IP class dedicated to your LAN, for example 172.16.222.0/24. This means the router can address up to 253 devices in the IP 172.16.222.1 – 172.16.222.254 range. 5.5.1 Client configuration When the VPN access is issued, the account consisting of the following data will be communicated.
  • Page 20 Click on “Set up a new connection or network”. If asked “Do you want to use a connection that you already have?”, select “No, create a new connection”. Select the “Connection to a corporate network” item and press the "Next" button. Translation from original instructions We reserve the right to make changes without any prior notice.
  • Page 21 Select the “Use existing Internet connection (VPN)” item Fill in the two fields by entering the above-mentioned "host" parameter as Internet address and "Blueye Cloud Connect VPN", or any other name you wish, as destination name. When you confirm with the "Create" button, the "Network connections and sharing centre" window will re-appear. Click on “Change card settings”.
  • Page 22 Go to the VPN item you have just created and edit it by right clicking on "Properties". Then select the “Network” section, select the “Internet protocol version 4" item and press the "Properties" button. Translation from original instructions We reserve the right to make changes without any prior notice.
  • Page 23 Press the “Advanced” button. Untick the “Use default gateway on remote network” option. Now press OK to all the open windows to confirm your choice. We reserve the right to make changes without any prior notice. Translation from original instructions...

  • Page 24: Configuration Of Routing To The Devices To Be Controlled

    5.5.2 Configuration of routing to the devices to be controlled Before proceeding with the next step, the VPN connection that has just been configured must be activated. Click the icon of the connection in the bar at bottom right, then click on the connection you have just created and then on "Connect". Open “Command Prompt”...
  • Page 25 When prompted, type the following command and press "Enter": netsh int ipv4 add route <IP_CLASS> "Blueye Cloud Connect VPN" where: - <IP_CLASS> is to be replaced with the class assigned to the router and/or to the devices you want to reach through the VPN connection.

  • Page 26: System Hardware

    SYSTEM HARDWARE 6.1 Dimensions Translation from original instructions We reserve the right to make changes without any prior notice.

  • Page 27: Blueye Technical Specifications

    6.2 Blueye technical specifications Description Specifications Platform: CPU ARM 9 i.Mx25 @ 400 MHz Operating System: Linux 2.6.31 RAM: 64MB DDR2-266 FLASH memory: 256MB NAND Flash Power supply: 9-36Vdc (12-24Vac +/-10%) Power consumption: ~5W (Max 150mA @ 24Vac) Operating temperature: -20°C / +60 °C 1 device reset button Signals: 1 three-colour STATUS LED...

  • Page 28: Indicator Led Operation

    INDICATOR LED OPERATION 7.1 Normal operation In normal operating conditions, the LEDs must have the following status: STATUS LED > flashing green NET LED > red on FIELD LED > off with brief flashes during Modbus polling 7.2 Error signalling STATUS LED steady orange When the orange STATUS LED comes on steady, it means there is an irreversible hardware failure.

  • Page 29: Factory Reset (Restoration Of Factory Settings)

    7.3 Factory Reset (Restoration of factory settings) Restoring the factory default settings will cancel all the settings present in the Blueye. The factory default settings should be restored only with the Manufacturer's permission. Disconnect the connections present at ports eth0 and eth1 from the Blueye. To restore the factory settings (factory reset): 1.

  • Page 30: Modbus Functionality

    MODBUS FUNCTIONALITY 8.1 Serial port (Modbus RTU) The physical communication line complies with EIA-RS485 specifications in half-duplex mode (2-wire) The MODBUS RTU (Remote Terminal Unit) code protocol is used The transmission speed can be selected from the following baud rates: 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 28800 bps, 38400 bps, 56000 bps, 57600 bps, 115200 bps The RTU byte consists of 11 bits: •...

  • Page 31: Format Of Data

    8.3 Format of data Datum Data for Modbus form Type Sign Range Size bit format register Single register LSB side Entire unsigned 0-255 Single register MSB side Entire unsigned 0-255 Single register Entire unsigned 0-65535 Single register Entire signed -32768 +32767 HI-LO pair of registers Entire unsigned...

  • Page 32: Function Code

    8.6 Function Code The functions implemented in Blueye are the following: Label Type Examples of use reads 1 or more consecutive bits starting from a specified 0x01 Read Coils address (the coils are outputs) 1-bit 0x02 Read Discrete Inputs reads external input bits (which cannot be outputs) 0x05 Write single coils writes a TRUE or FALSE bit...

  • Page 33: Guidelines For Connection Of Peripherals On Rs-485

    8.7 Guidelines for connection of peripherals on RS-485 8.7.1 Standard RS-485 The standard RS-485 is based on a balanced signal system. This means that the two electrical signals are ideally the op- posite of each other, compared to earth. The transmission line must consist of a twisted pair cable, which is especially immune to electromagnetic interference. 8.7.2 Transmission cable Always use a cable with a suitable degree of shielding to prevent interference risks, especially where there are power si-...

  • Page 34: Network Connection

    8.7.3 Network connection • As far as possible, limit the RS-485 network to a single main line (one segment) • Limit the total length of the main line to a maximum of 500 m • Consider 500m as maximum for a baud rate at 2400 •...

  • Page 35: Configurations To Avoid

    8.7.4 Configurations to avoid RS-485 networks use a so-called daisy chain configuration. This means there is only one main line (cable) and all the peripherals are directly connected along the path of this line. When other types of connection are used (e.g. centre-star, T branches), operation of the network cannot be guaranteed, especially where there are electromagnetic interference, considerably long networks and a high number of nodes.

  • Page 36: Rs-485 Bus Polarization

    8.7.6 RS-485 bus polarization For correct operation of an RS-485 network, the electrical signals must be correctly polarized. When all the SLAVE Modbus peripherals are in reception status and the MASTER peripheral (namely Blueye) is not inter- rogating, the RS-485 bus is in a high impedance state. In some cases, this can cause the bus to pick up electromagnetic interference from the outside that can be interpreted as real signals by the listening receivers.

  • Page 37: Faq

    9.1 Activation After correctly configuring Blueye, send an email requesting device activation to the Swegon Operations customer service department (service.cantarana.@Swegon.it) with the following information: IMEI code (adhesive label with 15-digit number) Once you have obtained authorization, connect to the site: http://www.blueboxcooling.com Blueye section...

  • Page 38: Reference Standards

    REFERENCE STANDARDS Conformity with: “Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999, on radio equipment and te- lecommunications terminal equipment and the mutual recognition of their conformity” is obtained following as reference the standards described below. • Safety: EN 60950-1 (2007) - LVD •...

  • Page 39: Warranty

    WARRANTY All Swegon Operations s.r.l. products are covered by a guarantee of good operation for a period of 12 months from the date of delivery, excluding any damage arising from tampering, negligence, accidents, normal wear or any indirect damage from poor use.

  • Page 40: Disposal

    DISPOSAL With reference to the European waste management directive, we inform you of the following: - The owner of electrical and electronic equipment (EEE) is obliged not to dispose of it as non-separated municipal waste, and must dispose of it via separate collection through public or private waste collection systems as required by local regulations.
  • Page 41 Page intentionally blank We reserve the right to make changes without any prior notice. Translation from original instructions...
  • Page 42 Page intentionally blank Translation from original instructions We reserve the right to make changes without any prior notice.
  • Page 43 Page intentionally blank We reserve the right to make changes without any prior notice. Translation from original instructions...
  • Page 44 Via Valletta, 5 - 30010 Cantarana di Cona, (VE) Italy - T. +39 0426 921111 - F. +39 0426 302222 www.blueboxcooling.com - info@swegon.it Blue Box Group S.r.l. a socio unico - P.IVA 02481290282 Company directed and coordinated by Investment Latour (Sweden)
