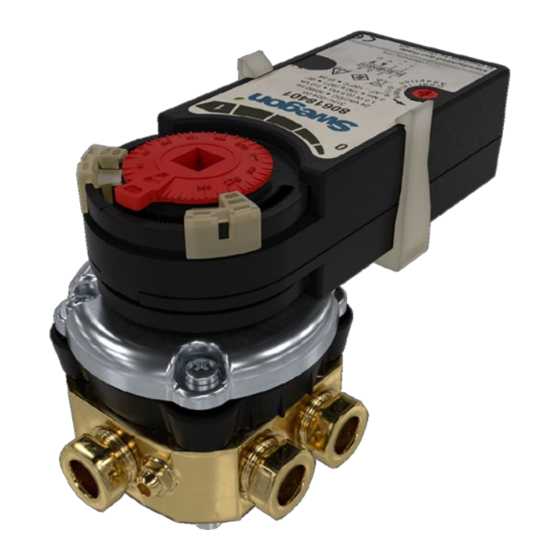

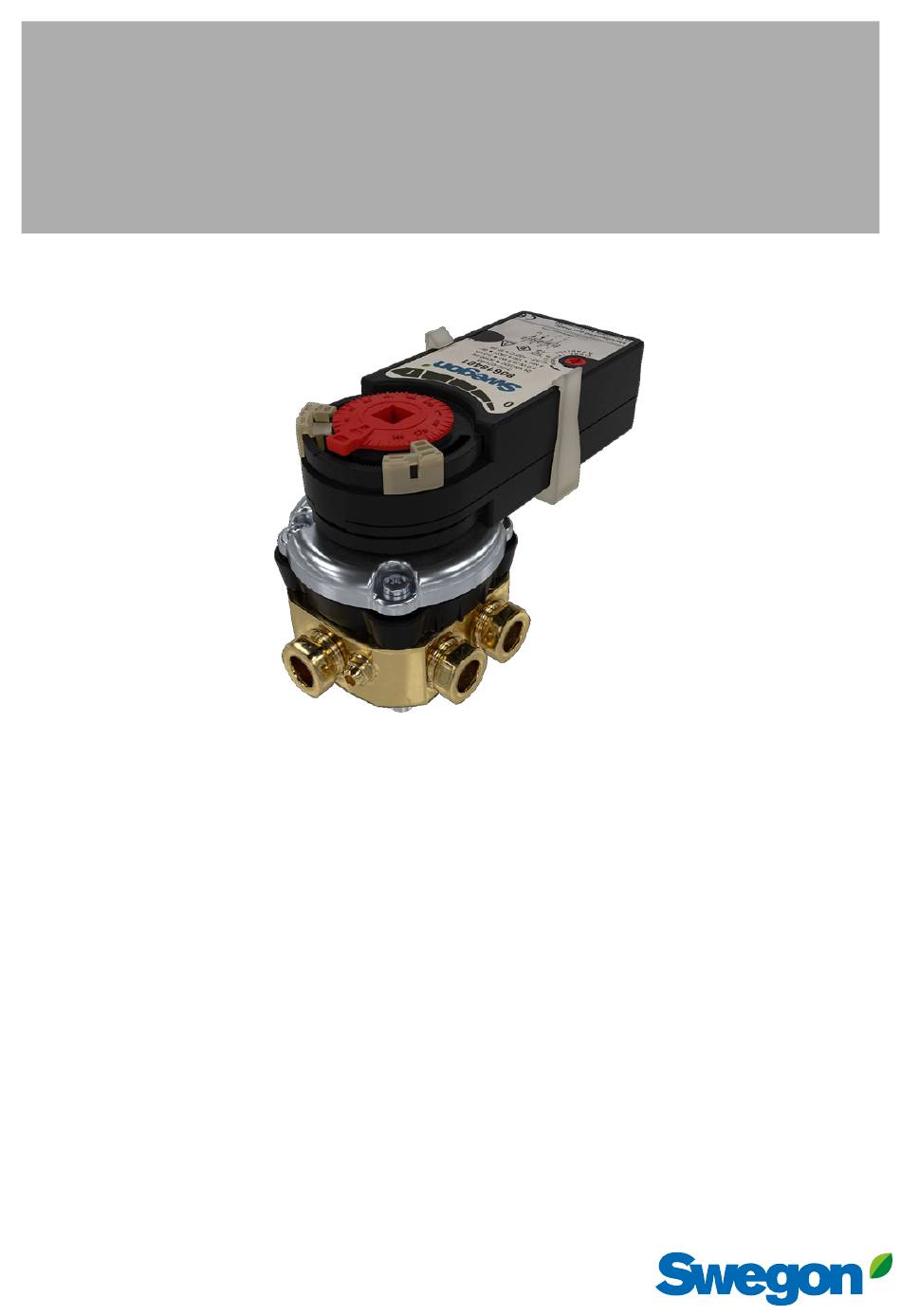

Compact Change Over - 6-way changeover valve with motor
QUICK FACTS
Enables heating & cooling in products with only one
○
heat exchanger circuit
Precise flow regulation
○
For a 4-pipe cooling/heating system
○
Valve PN10, DN10
○
○
Kvs 0.9 m
/h
3
○
Separate Kv-value settings for cooling/heating
Motor 24 V 2-10 V
○
Maximum cooling and heating capacities when the
○
entire heat exchanger is used.
One actuator and one valve instead of the traditional
○
double setup
Advertisement
Table of Contents
Related Manuals for Swegon CCO kit
Summary of Contents for Swegon CCO kit
- Page 1 CCO kit Compact Change Over - 6-way changeover valve with motor QUICK FACTS Enables heating & cooling in products with only one ○ heat exchanger circuit Precise flow regulation ○ For a 4-pipe cooling/heating system ○ Valve PN10, DN10 ○...
- Page 2 Wide right position = neutral From min. to max. cooling Heating Water quality Swegon recommends water quality according to VDI 2035-2 for both the heating and cooling system. It is recommended Service to install a vacuum degasser to be able to keep the oxygen content in the water below the levels (<0.1 mg/l) prescribed in...
- Page 3 In the diagram (see red marking), you can see that this is achieved at the preset Kv-value between F and G, i.e. the screw should be opened approx. 2.5 turns, see Table above. 19/03/2021 Swegon reserves the right to alter specifications.
- Page 4 Figure 2. Dimensions, valve, viewed from the side. ≥35 ≥35 Figure 3. Install the pipe at least 35 mm from the adjustment screw. Figure 4. Connections: Six 3/8” connections. Supplied with mounted clamp-ring couplings for Ø 12 mm pipes. Swegon reserves the right to alter specifications. 19/03/2021...
- Page 5 IP54 CE (2004/108/EC) Connections 1 2 3 4 BU BN BK GY ▲ ▼ ∼ Υ U Dimensions and weights Motor weight 0.3 Kg Figure 6. Dimensions, motor, viewed from the side. 19/03/2021 Swegon reserves the right to alter specifications.
- Page 6 Figure 7. Dimensions, valve with motor, viewed from side Figure 8. Dimensions, valve with motor, viewed from above. (A, release of the motor’s gearbox) Maintenance The valve and motor do not require any maintenance at all. Swegon reserves the right to alter specifications. 19/03/2021...
