Installation, IQlogic
GOLD
1. General
The IQlogic
is used for extra functions for which the
+
inputs and outputs are not included as standard in the air
handling unit's control unit.
2. Installation
Install the IQlogic
at an appropriate place, for example at
+
an unoccupied spot on a DIN rail inside the air handling
unit's electrical equipment cubicle .
Connect the communication cable, supplied with the unit,
to one of the connections on the module. It is not impor-
tant which connection is used. The reason why there are
two connections is to make it possible to connect several
IQlogic
+
.
Connect the other end of the communication cable to one
of the connections of the control unit, marked COM (the
exact connection is specified under the relevant function).

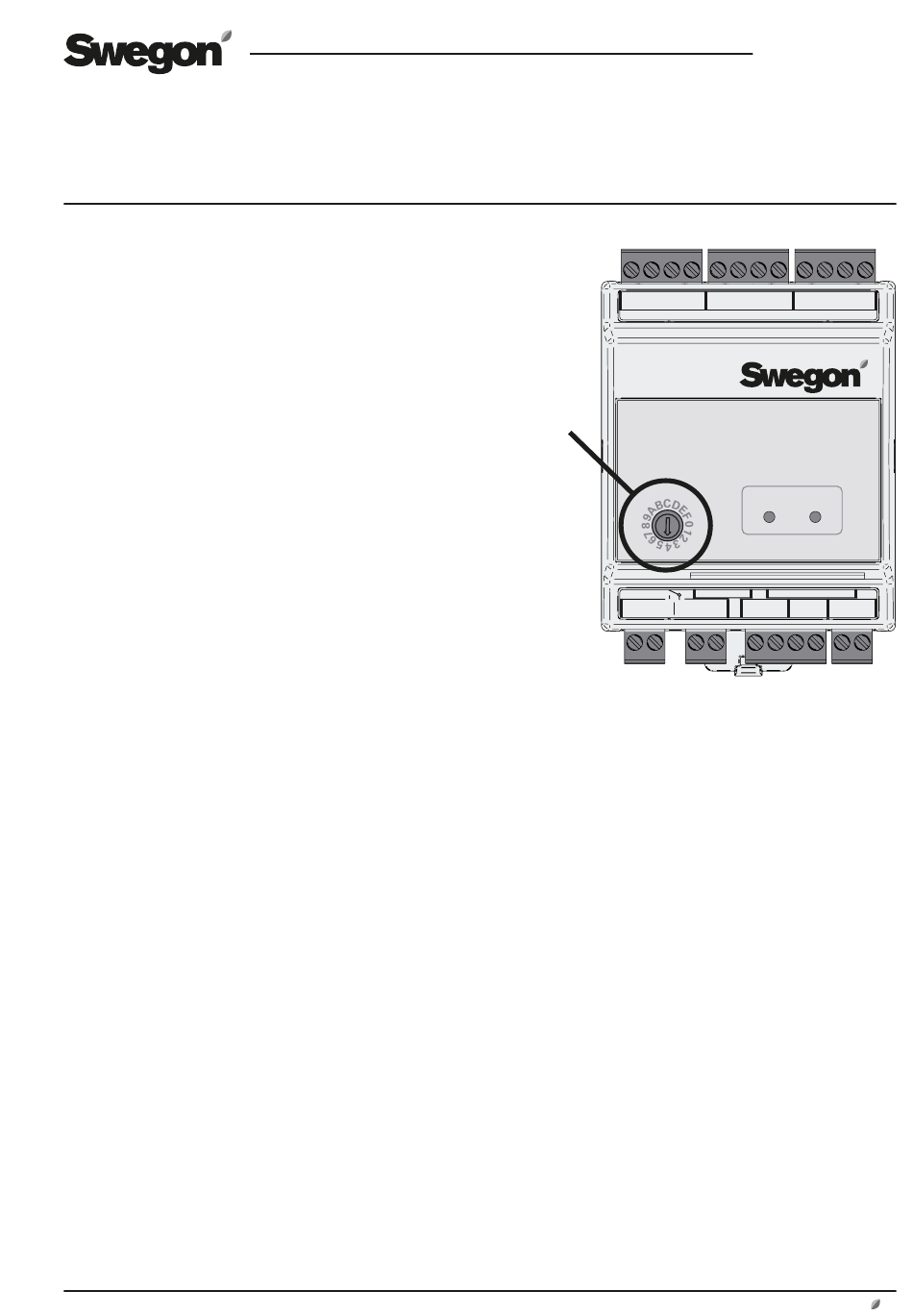

Function selector switch
0 ReCO
, TBIQ-3-1
2
1 Coil heat exchangers, TBIQ-3-1
2 Plate heat exchanger , TBIQ-3-1
3 External supervision , TBIQ-3-2
4 HumidificationPlate heat exchanger , TBIQ-3-1
5 AQUA Link (see separate instructions) , TBIQ-3-1
6 External supervision , TBIQ-3-2
7 All Year Comfort (see separate instructions) , TBIQ-3-2
8 Booster unit , TBIQ-3-2
9 Preheating , TBIQ-3-2
A Xzone heating (see separate instr. TBLZ-1-50) , TBIQ-3-2
B Xzone cooling (see separate instr. TBLZ-1-50) , TBIQ-3-2
C Spare
D Spare
E Extra control sequence and Season Heating , TBIQ-3-2
F Spare
3. Data
Connection port
Supply voltage
(Via modular contact)
Relay contacts
Ambient temp.
normal
Enclosure class
CE-approved to
Swegon reserves the right to alter specifications.
, modules TBIQ-3-1-aa and TBIQ-3-2-aa
+
2 x RJ 12 6/6
24V DC
2 A/AC3
5 A/AC1
-40 °C - +55 °C, 10 - 95 % RH
IP 20 to EN 60529
EN 61000-6-2, EN 61000-6-3
1
2
-
+
Function
selector
IQlogic
switch
P1
C
NO
13
14
A TBIQ-3-2 is shown.
GB.TBIQ3.130915
3
4
5
6
7
8
9 10 11 12
-
+
-
-
-
+
+
S
+
COM POWER
Heat/Cool
Com 1
Com 2
+
-
+
-
C
NO
G
15
16
17
18
19
20
21
www.swegon.com
-
S
G0
22
1
