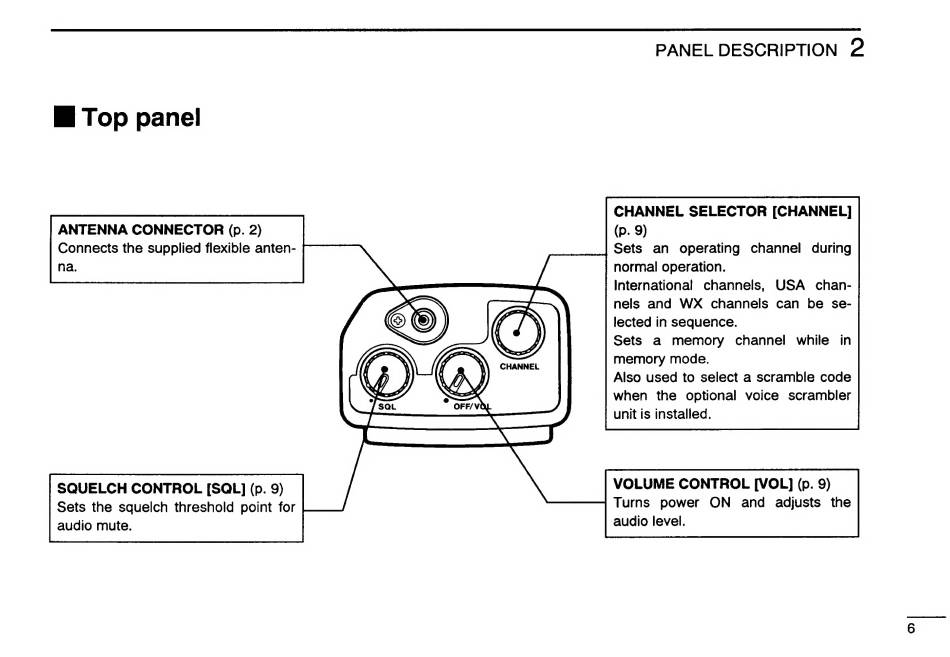

i Top panel
ANTENNA CONNECTOR (p. 2)
Connects the supplied flexible anten-
na.
SQUELCH CONTROL [SQL] (p. 9)
Sets the squelch threshold point for
audio mute.
~~
CHANNEL
PANEL DESCRIPTION
2
CHANNEL SELECTOR
[CHANNEL]
(p. 9)
Sets
an
operating
channel
during
normal operation.
International
channels,
USA
chan-
nels and WX
channels
can
be se-
lected in sequence.
Sets
a memory
channel
while
in
memory mode.
Also used to select a scramble code
when
the optional voice
scrambler
unit is installed.
VOLUME CONTROL [VOL] (p. 9)
Turns
power
ON
and
adjusts the
audio level.
