2 PANEL DESCRIPTION

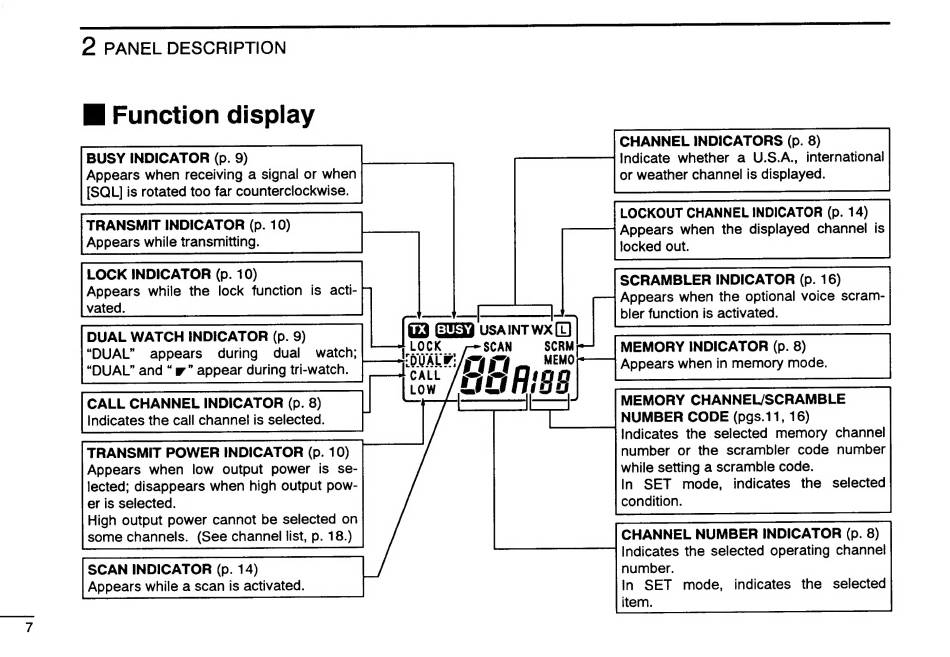

Mi Function display
CHANNEL INDICATORS (p. 8)
Indicate whether a U.S.A., international
or weather channel is displayed.
BUSY INDICATOR (p. 9)
Appears when receiving a signal or when
[SQL] is rotated too far counterclockwise.
LOCKOUT CHANNEL INDICATOR (p. 14)
Appears when the displayed channel is
locked out.
TRANSMIT INDICATOR (p. 10)
Appears while transmitting.
LOCK INDICATOR (p. 10)
Appears while the lock function is acti-
vated.
SCRAMBLER INDICATOR (p. 16)
Appears when the optional voice scram-
bler function is activated.
USA INT WX [L]
DUAL WATCH INDICATOR (p. 9)
MEMORY CHANNEL/SCRAMBLE
NUMBER CODE (pgs.11, 16)
Indicates the selected memory channel
number or the scrambler code number
while setting a scramble code.
In SET mode, indicates the selected
condition.
CALL CHANNEL INDICATOR (p. 8)
Indicates the call channel is selected.
TRANSMIT POWER INDICATOR (p. 10)
Appears when low output power is se-
lected; disappears when high output pow-
er is selected.
High output power cannot be selected on
some channels. (See channel list, p. 18.)
CHANNEL NUMBER INDICATOR (p. 8)
Indicates the selected operating channel
number.
In SET mode, indicates the selected
item.
SCAN INDICATOR (p. 14)
Appears while a scan is activated.
