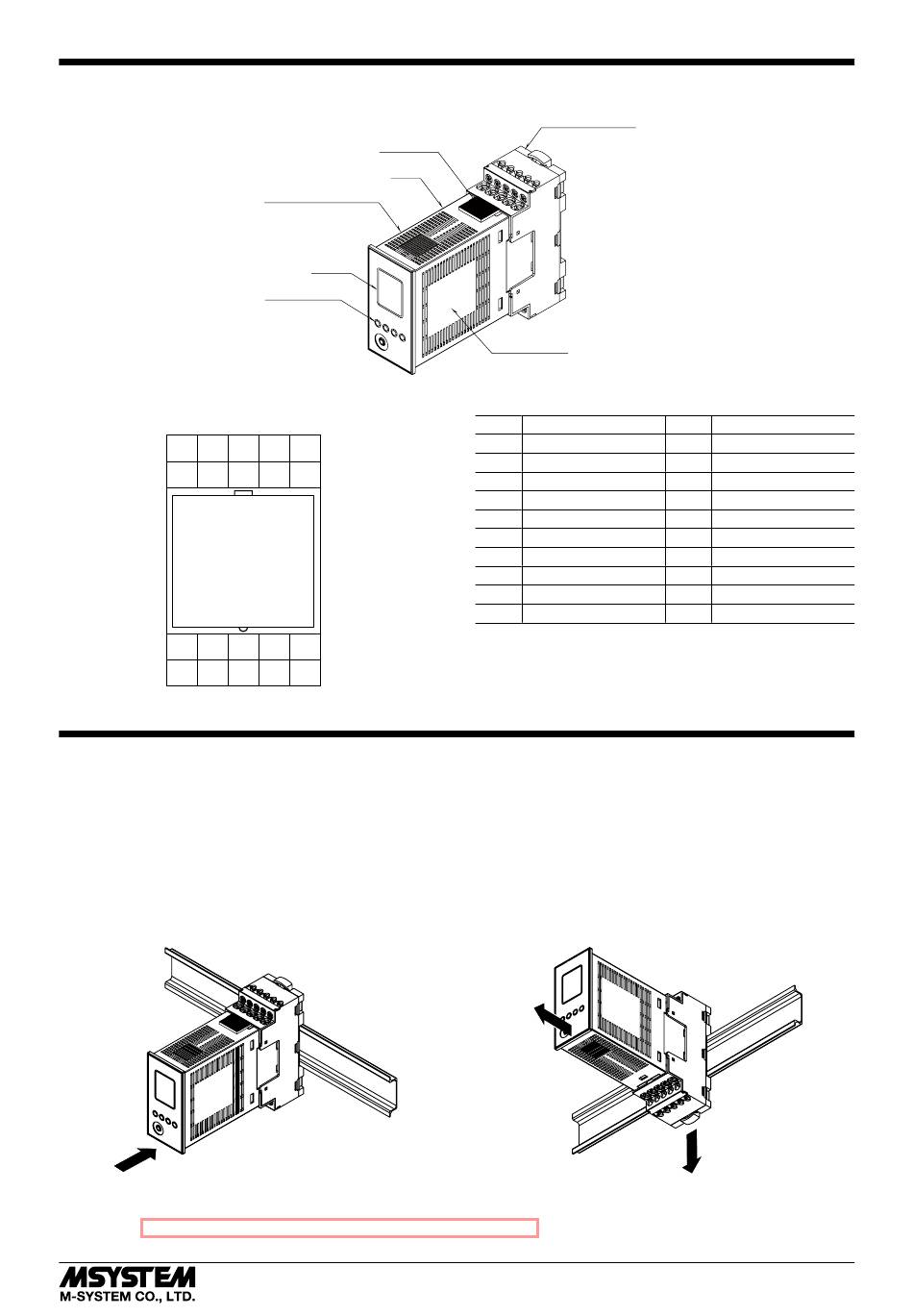

COMPONENT IDENTIFICATION

■ TERMINAL ASSIGNMENTS
1 2
6 7
11 12
16 17

INSTALLATION

Pulling out the base while pushing the lockslider on the top of the unit enables to remove the base from the unit (base is not
included in the package).
■ DIN RAIL MOUNTING (SIDE)
• Mounting the unit
A) Hang the upper hook at the rear side of unit on the DIN
rail.
B) Push the lower part of the unit in the direction of the ar-
row until the unit is firmly fixed to the DIN rail.
B
■ WALL MOUNTING
Referring to "MOUNTING REQUIREMENTS unit: mm (inch)" on page 3, pull out the upper and lower sliders of the unit
and fix them with M4 screws (Torque: 1.4 N·m).
Lockslider
Body
Connection Diagram
(Side)
Display
Front Buttons
3 4 5
8 9 10
13 14 15
18 19 20
A
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
Base (M1E-BS2)
* Base is not included in the package.
Specifications
No. FUNCTION
1 Unused
2 Unused
3 Ch1 Input A
4 Ch1 Input B (3-wire)
5 Ch1 Input B
6 Unused
7 Unused
8 Ch2 Input A
9 Ch2 Input B (3-wire)
10 Ch2 Input B
• Removing the unit
A) Push down the DIN rail adaptor using a minus screw-
driver.
B) Pull out the lower part of the unit.
C) Remove the upper part from the DIN rail.
B
M1EXR-2
No. FUNCTION
11 Ch1 Output +
12 Ch1 Output –
13 Unused
14 Ch2 Output +
15 Ch2 Output –
16 Unused
17 Unused
18 Unused
19 Power U (+)
20 Power V (–)
C
