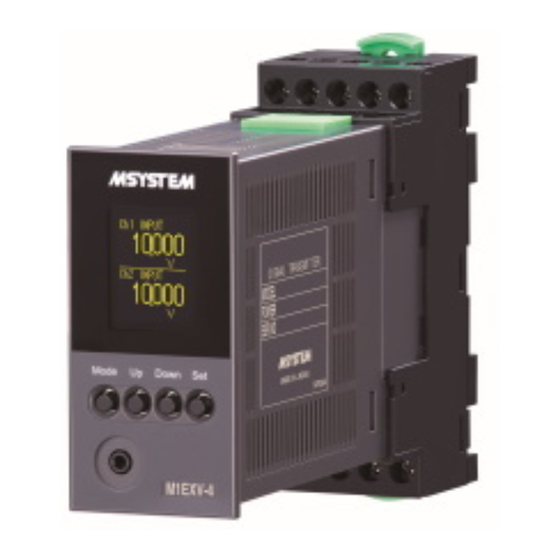

M-system M1EXV-4 Operating Manual

Signal transmitter (4 channel, pc programmable)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING MANUAL
SIGNAL TRANSMITTER
(4 channel, PC programmable)
BEFORE USE .... ........................................................................................................... 2
POINTS OF CAUTION ...................................................................................................... 2
COMPONENT IDENTIFICATION .......................................................................................... 3
INSTALLATION ............................................................................................................. 3
TERMINAL CONNECTIONS ............................................................................................... 4
EXTERNAL VIEWS ......................................................................................................... 5
SCREEN DISPLAY .......................................................................................................... 6
PROGRAMMING ........................................................................................................... 7
ERROR MESSAGES ...................................................................................................... 36
WIRING INSTRUCTIONS FOR BASE ................................................................................... 36
CHECKING ................................................................................................................ 36
MAINTENANCE ........................................................................................................... 37
LIGHTNING SURGE PROTECTION ..................................................................................... 37
CONTENTS
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
M1EXV-4
MODEL
EM-6040-B Rev.2 P. 1 / 37

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1EXV-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for M-system M1EXV-4

Summary of Contents for M-system M1EXV-4

  • Page 1: Table Of Contents

    PROGRAMMING ......................7 ERROR MESSAGES ...................... 36 WIRING INSTRUCTIONS FOR BASE ................... 36 CHECKING ........................ 36 MAINTENANCE ......................37 LIGHTNING SURGE PROTECTION ..................37 EM-6040-B Rev.2 P. 1 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...

  • Page 2: Before Use

    • Environmental temperature must be within -5 to +55°C tings. (23 to 131°F) with relative humidity within 10 to 85% RH The M1EXV-4 is programmable using a PC. For detailed in order to ensure adequate life span and operation. information on the PC configuration, refer to the M1ECFG •...

  • Page 3: Component Identification

    Refer to “MOUNTING REQUIREMENTS unit: mm (inch)” on page 4. Pull out the upper and lower sliders from the base and fix them with M4 screws (Torque: 1.4 N·m). EM-6040-B Rev.2 P. 3 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...

  • Page 4: Terminal Connections

    ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ * Mounting requirements for base. EM-6040-B Rev.2 P. 4 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...

  • Page 5: External Views

    Used to perform configuration with M1E configurator software (model: M1ECFG). When using the software, set the Lockout setting of the unit to ‘Lock’. EM-6040-B Rev.2 P. 5 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...

  • Page 6: Screen Display

    -10 – +10V The long parameter item name is scrolled and displayed. Scrolled and displayed Ch1 0% input scaling ITEM DATA 0.00 EM-6040-B Rev.2 P. 6 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...

  • Page 7: Programming

    Hold down Mode button for ≥ 2 seconds Press Mode button Hold down Mode button for ≥ 7.5seconds Advanced Mode Hold down Mode button for ≥ 2 seconds EM-6040-B Rev.2 P. 7 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 8 Even when ‘Lockout Setting’ is enabled, each setting value can be confirmed. Confirm that ‘DATA (Locked)’ is indicated in such a time. EM-6040-B Rev.2 P. 8 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 9 Hold down Mode button Linearization Mode Down Cancel / Set Loop Test Down * Refer to [17] Unit (INP Scaling) for usable unit. EM-6040-B Rev.2 P. 9 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 10 -99999 – 999999 100.00 cordingly. Note that input setting values are changed to the initial values. EM-6040-B Rev.2 P. 10 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 11 -5 – +5 V Output: -5 – +5 V DC 0 – 20 mA -10 – +10 V Output: -10 – +10 V DC EM-6040-B Rev.2 P. 11 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 12 When ‘Display timeout’ is activated and the display has been cleared (display off) during loop test, press any front button to restore the display. EM-6040-B Rev.2 P. 12 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 13 Hold down Mode button Linearization Mode Down Cancel / Set Loop Test Down * Refer to [117] Unit (INP Scaling) for usable unit. EM-6040-B Rev.2 P. 13 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 14 -99999 – 999999 100.00 cordingly. Note that input setting values are changed to the initial values. EM-6040-B Rev.2 P. 14 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 15 -5 – +5 V Output: -5 – +5 V DC 0 – 20 mA -10 – +10 V Output: -10 – +10 V DC EM-6040-B Rev.2 P. 15 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 16 When ‘Display timeout’ is activated and the display has been cleared (display off) during loop test, press any front button to restore the display. EM-6040-B Rev.2 P. 16 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 17 Hold down Mode button Linearization Mode Down Cancel / Set Loop Test Down * Refer to [217] Unit (INP Scaling) for usable unit. EM-6040-B Rev.2 P. 17 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 18 -99999 – 999999 100.00 cordingly. Note that input setting values are changed to the initial values. EM-6040-B Rev.2 P. 18 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 19 -5 – +5 V Output: -5 – +5 V DC 0 – 20 mA -10 – +10 V Output: -10 – +10 V DC EM-6040-B Rev.2 P. 19 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 20 When ‘Display timeout’ is activated and the display has been cleared (display off) during loop test, press any front button to restore the display. EM-6040-B Rev.2 P. 20 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 21 Hold down Mode button Linearization Mode Down Cancel / Set Loop Test Down * Refer to [317] Unit (INP Scaling) for usable unit. EM-6040-B Rev.2 P. 21 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 22 -99999 – 999999 100.00 cordingly. Note that input setting values are changed to the initial values. EM-6040-B Rev.2 P. 22 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 23 -5 – +5 V Output: -5 – +5 V DC 0 – 20 mA -10 – +10 V Output: -10 – +10 V DC EM-6040-B Rev.2 P. 23 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 24 When ‘Display timeout’ is activated and the display has been cleared (display off) during loop test, press any front button to restore the display. EM-6040-B Rev.2 P. 24 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 25 – Display timeout 0 (always on), 1 – 60 min. Reset all settings OFF / RESET – Version indication – – – EM-6040-B Rev.2 P. 25 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 26 *2. The value displayed is the value converted into 0.00 to 100.00% based on the input setting value. *3. The upper part of [401] cannot be set to ‘None’. EM-6040-B Rev.2 P. 26 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 27 Note that the values do not return to the setting values specified by the option Ex-factory setting (/SET). [409] Version indication Indicates firmware version. EM-6040-B Rev.2 P. 27 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 28 Ch1 Number of points 2 – 111 — Ch1 Table -5.00 – 105.00 X001 -5.00 95-003 Y001 -5.00 X002 105.00 95-224 Y002 105.00 EM-6040-B Rev.2 P. 28 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 29 Y value to be outputted. Yn+1 Output % Input % Xn+1 EM-6040-B Rev.2 P. 29 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 30 Ch2 Number of points 2 – 111 — Ch2 Table -5.00 – 105.00 X001 -5.00 195-003 Y001 -5.00 X002 105.00 195-224 Y002 105.00 EM-6040-B Rev.2 P. 30 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 31 Y value to be outputted. Yn+1 Output % Input % Xn+1 EM-6040-B Rev.2 P. 31 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 32 Ch3 Number of points 2 – 111 — Ch3 Table -5.00 – 105.00 X001 -5.00 295-003 Y001 -5.00 X002 105.00 295-224 Y002 105.00 EM-6040-B Rev.2 P. 32 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 33 Y value to be outputted. Yn+1 Output % Input % Xn+1 EM-6040-B Rev.2 P. 33 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 34 Ch4 Number of points 2 – 111 — Ch4 Table -5.00 – 105.00 X001 -5.00 395-003 Y001 -5.00 X002 105.00 395-224 Y002 105.00 EM-6040-B Rev.2 P. 34 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 35 Y value to be outputted. Yn+1 Output % Input % Xn+1 EM-6040-B Rev.2 P. 35 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...

  • Page 36: Error Messages

    MFG.Co.Ltd, Nichifu Co.,ltd (Solderless terminals with in- sulation sleeve do not fit) Applicable wire size: 0.25 to 1.65 mm 4min 3max 3.2 dia. 12max (mm) EM-6040-B Rev.2 P. 36 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...

  • Page 37: Maintenance

    4) If the output signal is shifted, repeat the procedure from 1) to 3). LIGHTNING SURGE PROTECTION M-System offers a series of lightning surge protector for protection against induced lightning surges. Please contact M-System to choose appropriate models. EM-6040-B Rev.2 P. 37 / 37 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
