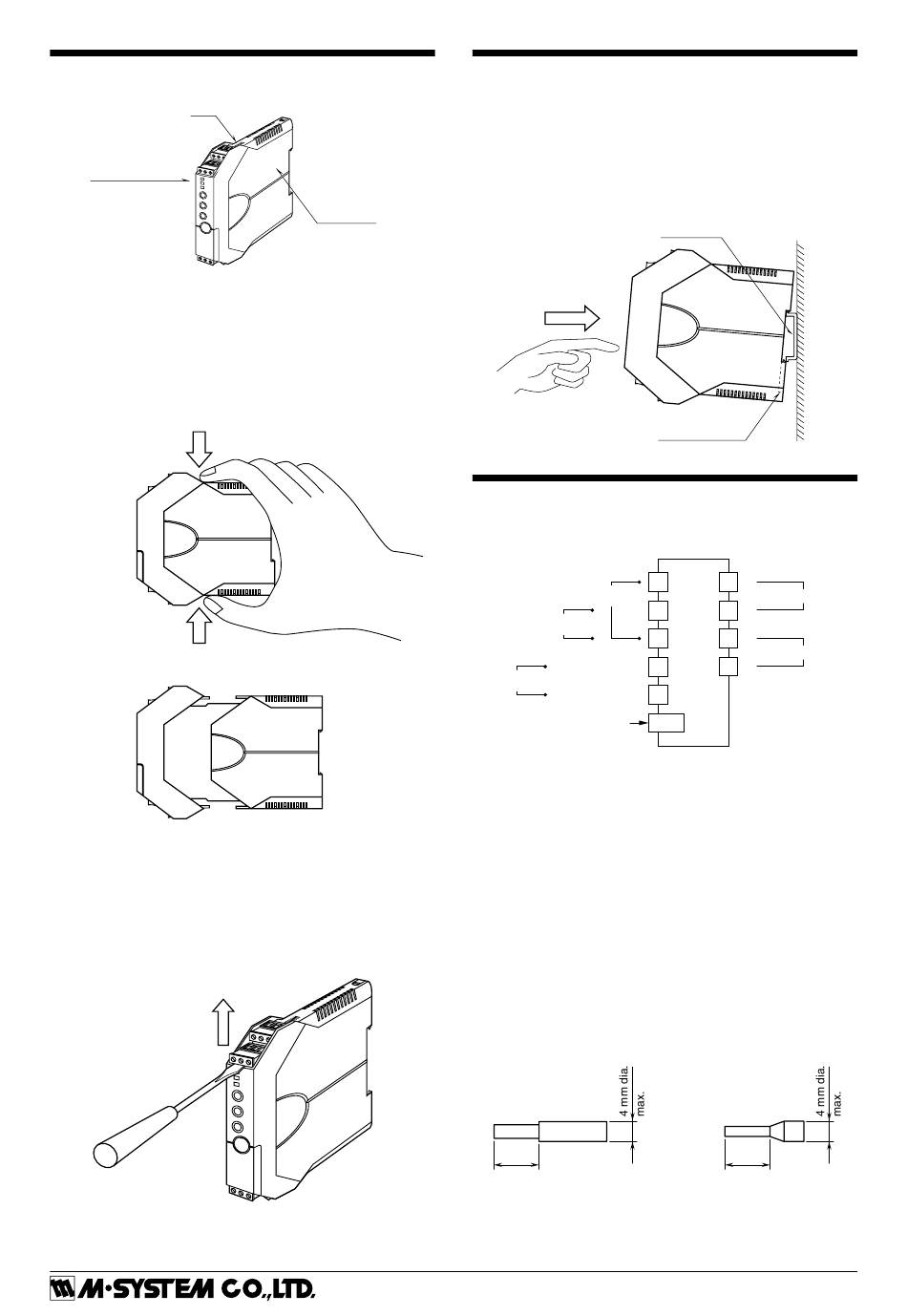

COMPONENT IDENTIFICATION

Body
Specifications
(side)
■ HOW TO OPEN THE COVER WHEN SETTING DIP SW
Hold at the top and bottom of the unit as shown below and
slide the housing cover gently to open until it hits the latch-
ing inside the unit.
Caution:
Handle the cover carefully to protect internal components from damage.
DO NOT pull beyond where the housing cover is latched. The plastic
housing may be damaged.
• Housing Cover Fully Opened
■ HOW TO SEPARATE THE EURO TYPE CONNECTOR
TERMINAL BLOCKS
When you need to separate the euro type connector termi-
nal blocks from the transmitter body for wiring, insert a mi-
nus driver between the euro type connector terminal block
and the housing body, pull up the driver and pull out the
euro type connector terminal block.

INSTALLATION

■ DIN RAIL MOUNTING
Set the unit so that its DIN rail adaptor is at the bottom.
Position the upper hook at the rear side of the unit on the
DIN rail and push in the lower. When removing the unit,
push down the DIN rail adaptor utilizing a minus screw-
driver and pull.
SW Setting

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the con-
nection diagram on the side of the unit.
■ WIRING INSTRUCTIONS
• Applicable wire size
Wire exposure
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: + 81 ( 6 ) 6659-8201 Fax: + 81 ( 6 ) 6659-8510 E-mail: info@m-system.co.jp
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
+
1
Millivolt
+ (mV)
2
VOLTAGE
(V)
3
– –
+
4
CURRENT
(mA)
5
–
JACK
CONFIGURATOR
Solid: 0.2 to 2.5 mm
Stranded: 0.2 to 2.5 mm
Tinning wire ends may cause contact failure
and therefore is not recommended.
Ferruled: 0.2 to 1.5 mm
The following Phoenix Contact terminals are
recommended:
AI 0,25-8YE
AI 0,34-8TQ
AI 0,5-8WH
AI 0,75-8GY
AI 1,0-8RD
AI 1,5-8BK
• Expose wire conductors by 8 mm (0.31").
8 mm
M3LV
7 +
OUTPUT
8 –
11 +
POWER
12 –
(0.55 to 1.75 dia.)
2
2
(0.55 to 1.35 dia.)
2
0.2 to 0.25 mm
2
0.25 to 0.34 mm
2
0.34 to 0.5 mm
2
0.5 to 0.75 mm
2
0.75 to 1.0 mm
2
1.0 to 1.5 mm
2
Recommended
ferruled wire
8 mm
