M-system M5PA-CA-R Instruction Manual

Frequency transmitter

Advertisement

Super-mini Terminal Block Signal Conditioners M5-UNIT

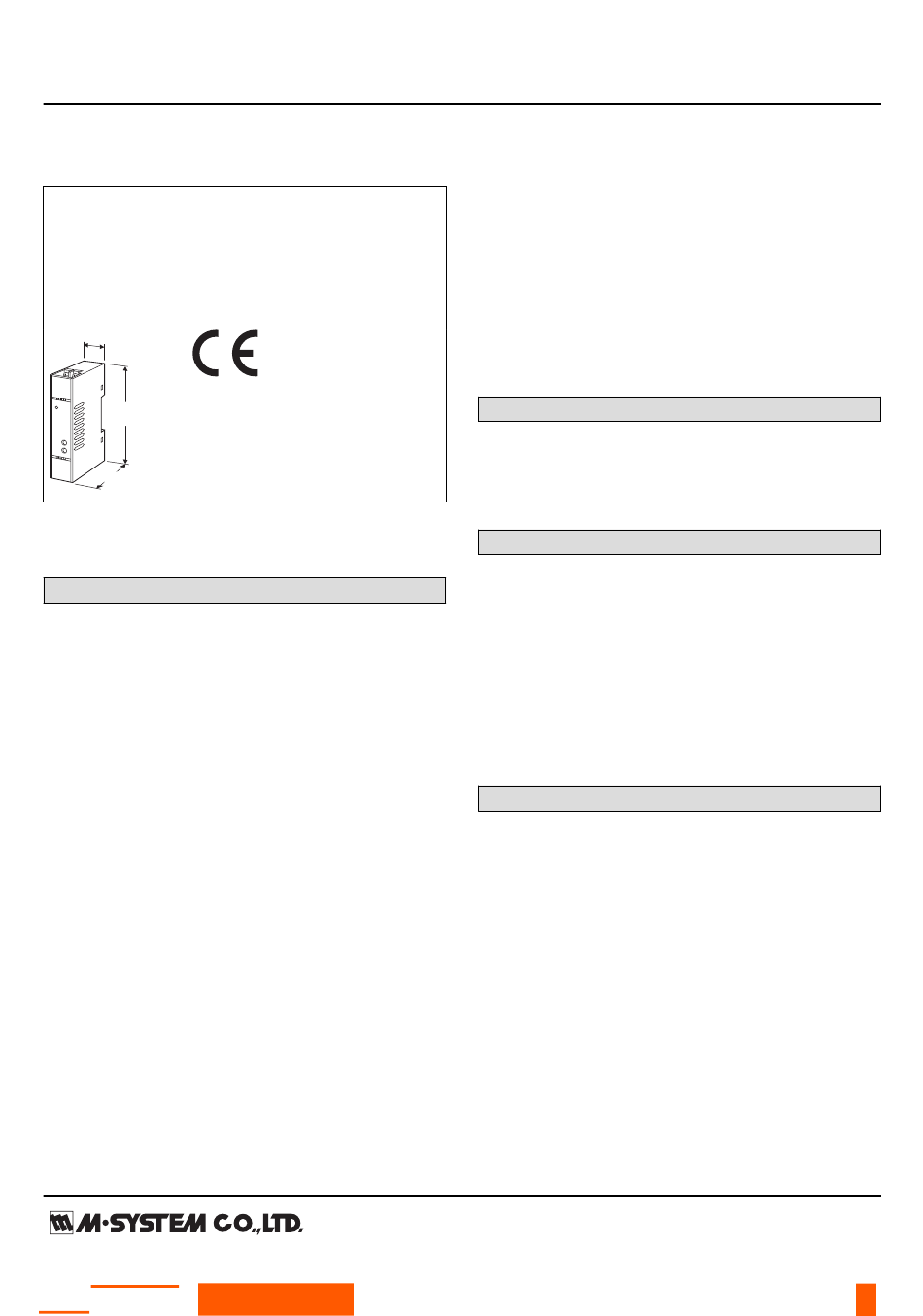

FREQUENCY TRANSMITTER
Functions & Features
• Converts the output from a pulse-type transducer into a
standard process signal
• High-density mounting
• Power LED
• CE marking for 24 V DC power
25 (.98)
97
(3.82)
41 (1.61)
mm (inch)
MODEL: M5PA-[1][2]-[3][4]
ORDERING INFORMATION
Specify a code from below for each [1] through [4].
• Code number: M5PA-[1][2]-[3][4]
(e.g. M5PA-CA-R/Q)
Specify variables.
• Frequency range (e.g. 0 – 1 kHz)
• Special output range (For codes Z & 0)
• Specify the specification for option code /Q
(e.g. /C01)
[1] INPUT
A1: Open collector
A2: Mechanical contact
C: 5 V pulse (sensitivity 2 V)
D: 12 V/24 V pulse (sensitivity 5 V)
[2] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 550 Ω max.)
Z: Specify current (See OUTPUT SPECIFICATIONS)
Voltage
4: 0 – 10 V DC (Load resistance 1000 Ω min.)
5: 0 – 5 V DC (Load resistance 500 Ω min.)
6: 1 – 5 V DC (Load resistance 500 Ω min.)
4W: -10 – +10 V DC (Load resistance 8000 Ω min.)
5W: -5 – +5 V DC (Load resistance 4000 Ω min.)
0: Specify voltage (See OUTPUT SPECIFICATIONS)
SEN TRONIC
AG
Produkte, Support und Service
[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 –66 Hz)
(CE not available)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
[4] OPTIONS
blank: none
/Q: With options (specify the specification)
SPECIFICATIONS OF OPTION: Q
COATING (For the detail, refer to M-System's web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
GENERAL SPECIFICATIONS
Construction: Terminal block
Connection: M3.5 screw terminals (torque 0.8 N·m)
Screw terminal: Nickel-plated steel
Housing material: Flame-resistant resin (black)
Isolation: Input to output to power
Zero adjustment: -2 to +2 % (front)
Span adjustment: 98 to 102 % (front)
Chattering protection: Filter provided for mechanical
contact input
Power LED: Green light turns on when the power is supplied.
INPUT SPECIFICATIONS
■ Open Collector
Frequency range: 0 – 0.01 Hz through 100 kHz
Pulse width time requirement: ≥ 4 µsec. for both ON and
OFF
Sensing voltage/current: 5 V DC @2 mA
Detecting levels: ≤ 0.7 V / 350 Ω for ON; ≥ 4 V / 10 kΩ for
OFF
■ Mechanical Contact
Frequency range: 0 – 0.01 Hz through 30 Hz
Pulse width time requirement: ≥ 10 msec. for both ON and
OFF
Sensing voltage/current: 5 V DC @2 mA
Detecting levels: ≤ 0.7 V / 350 Ω for ON; ≥ 4 V / 10 kΩ for
OFF
■ Voltage Pulse
Frequency range: 0 – 0.01 Hz through 100 kHz
Pulse width time requirement: ≥ 4 µsec. for both H and L
levels
Rugghölzli 2
Tel. +41 (0)56 222 38 18
CH - 5453 Busslingen
Fax +41 (0)56 222 10 12
MODEL: M5PA
mailbox@sentronic.com
www.sentronic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M5PA-CA-R and is the answer not in the manual?

Questions and answers

Summary of Contents for M-system M5PA-CA-R

  • Page 1 [4] OPTIONS 25 (.98) blank: none /Q: With options (specify the specification) SPECIFICATIONS OF OPTION: Q (3.82) COATING (For the detail, refer to M-System's web site.) /C01: Silicone coating /C02: Polyurethane coating 41 (1.61) mm (inch) /C03: Rubber coating MODEL: M5PA-[1][2]-[3][4]...
  • Page 2: Output Specifications

    MODEL: M5PA Waveform: Square or sine Input impedance: ≥ 10 kΩ Max. voltage between input terminals: ±50 V Detecting H level 5 V pulse: ≥ 3 V 12 V, 24 V pulse: ≥ 6 V Detecting L level 5 V pulse: ≤ 1 V 12 V, 24 V pulse: ≤...
  • Page 3: Front View

    MODEL: M5PA FRONT VIEW Power LED Span Adj. Zero Adj. DIMENSIONS unit: mm (inch) 7.3 (.29) 8–M3.5 SCREW DIN RAIL 35mm wide 25 (.98) 41 (1.61) [3.3 (.13)] • When mounting, no extra space is needed between units. SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM Isolation Waveform Digital...
  • Page 4 MODEL: M5PA Specifications are subject to change without notice. SEN TRONIC Rugghölzli 2 Tel. +41 (0)56 222 38 18 mailbox@sentronic.com CH - 5453 Busslingen Fax +41 (0)56 222 10 12 www.sentronic.com Produkte, Support und Service...
  • Page 5: Component Identification

    BEFORE USE ..40V or less between lines. Recommended M-System mod- el: MDP-D24. Thank you for choosing M-System. Before use, please check contents of the package you received as outlined below. ■ AND ..If you have any problems or questions with the product, •...
  • Page 6: Terminal Connections

    M-System’s sole liability, and purchaser’s exclusive remedies, under this warranty are, at M-System’s option, the repair, replacement or refund of the purchase price of any M-System product which is defective under the terms of this warranty. To submit a claim under this warranty, the purchaser must return, at its expense, the defective M-System product to the below address together with a copy of its original sales invoice.
