Vertiv Liebert GXT5 Quick Installation Manual

Vertiv™ Liebert® GXT5 Lithium-Ion UPS
5-10kVA GV, 200-240V (L1, N/L2, G)
Quick Installation Guide
Thank you for your recent purchase of a Vertiv UPS! We appreciate your business and are confident
that your new product will provide many years of uninterruptible power to your connected equipment.
With this purchase, you may also want to consider Vertiv's complete line of racks, PDUs, thermal
solutions, KVM switches, and serial consoles. Vertiv also offers a broad array of services and extended
warranties. If you require any assistance or support, please don't hesitate to reach out to one of our
resellers, local rep firms, or directly to us at 1-800-222-5877 menu option 1. We stand ready to support
you. We sincerely hope that you'll continue to select Vertiv for all your future infrastructure needs!
The Vertiv Team
IMPORTANT: Before installing, connecting to supply, or operating the Vertiv™ Liebert® GXT5 Lithium-Ion UPS, refer to the
SL-55024 Safety and Regulatory Statements Sheet. For detailed installation, operation, maintenance, and troubleshooting
information, refer to the Vertiv™ Liebert® GXT5 Lithium-Ion UPS User Guide for your model by scanning the QR code above, or
visiting www. V ertiv.com.

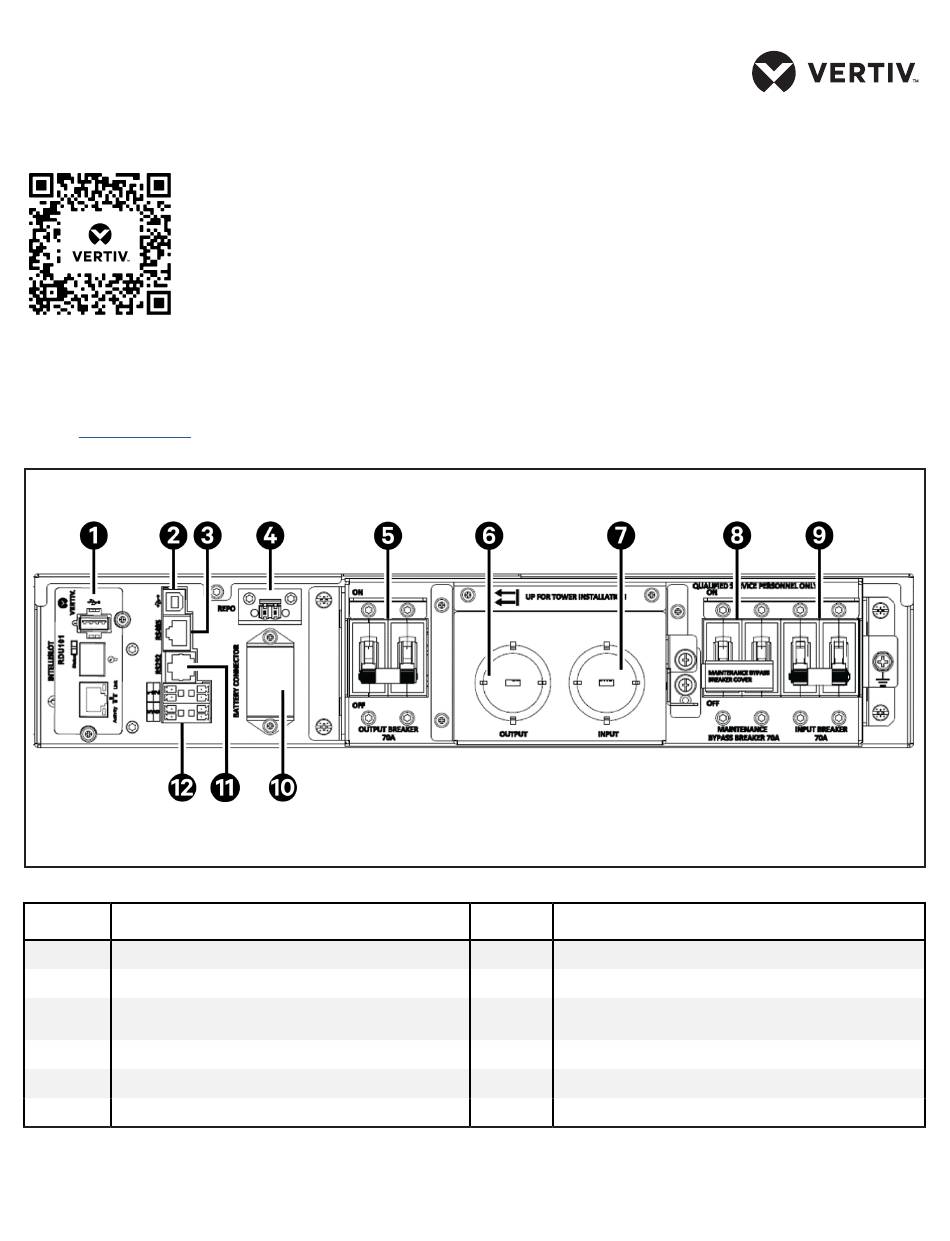

UPS Rear Panel View
GXT5LI-5000GVRT3UXLN / GXT5LI-6000GVRT3UXLN / GXT5LI-8000GVRT3UXLN / GXT5LI-10KGVRT3UXLN
Item No. Description
1 Preinstalled network card
2 USB port
3 External Battery Cabinet (EBC)
communication port (RS-485)
4 REPO connector
5 Output circuit breaker
6 Output hardwire connection
PROPRIETARY AND CONFIDENTIAL ©2023 VERTIV GROUP CORP.
Item No. Description
7 Input hardwire connection
8 Maintenance bypass circuit breaker
9 Input circuit breaker
10 EBC connector
11 RS-232 port (used for CLI)
12 Dry contact communication terminal block
SL-71157_REVA_11-23 1
