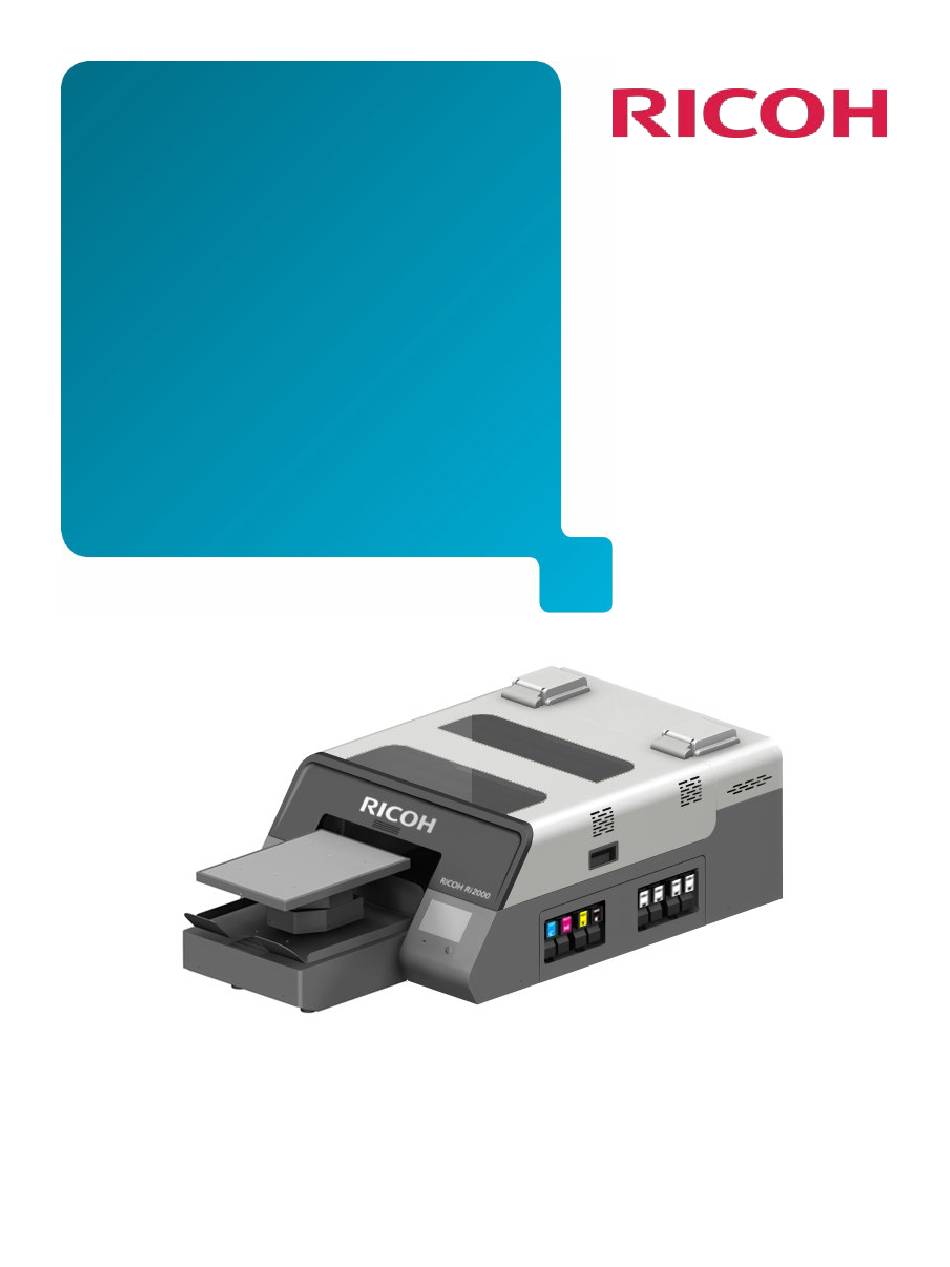

RICOH Ri 2000 Additional manual

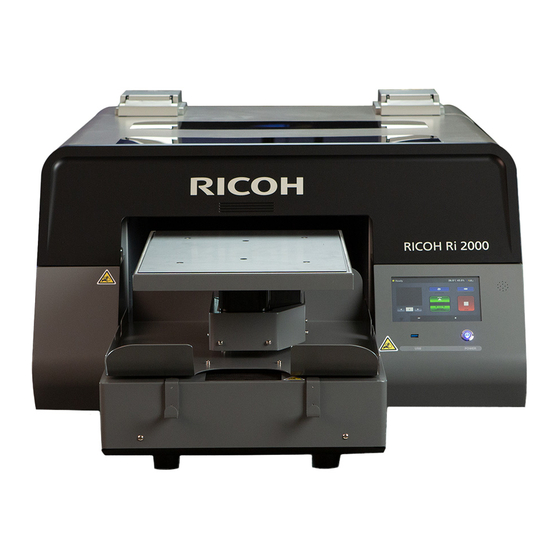

RICOH Ri 2000
Additional manual
RICOH Enhanced Garment Ink
Cartridge White 1&2 Type G2
Version 1.0.0
1 / 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ri 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ricoh Ri 2000

Summary of Contents for Ricoh Ri 2000

  • Page 1 RICOH Ri 2000 Additional manual RICOH Ri 2000 Additional manual RICOH Enhanced Garment Ink Cartridge White 1&2 Type G2 Version 1.0.0 1 / 15...
  • Page 2 RICOH Ri 2000 Additional manual Where to Inquire. For inquiries, contact your sales or service representative. 2 / 15...

  • Page 3: Table Of Contents

    RICOH Ri 2000 Additional manual Contents 1.Introduction ............................4 2. Check and update firmware and MIM ................... 5 Check and update firmware........................5 Check and update MIM..........................5 3. Check printer discharge condition ..................6 4. Check printer ink path setting ....................6 5.

  • Page 4: Introduction

    Ricoh introduces new white inks for RICOH Ri 2000. This document describes the new information added to the User Manual for RICOH Ri 2000, that relates to the use of the new white inks "RICOH Enhanced Garment Ink Cartridge White1 / White2 Type G2".

  • Page 5: Check And Update Firmware And Mim

    RICOH Ri 2000 Additional manual 2. Check and update firmware and MIM Check and update firmware. If your firmware version is older than the following, please update it. The firmware version of each printer that supports Type G2 White Ink is as follows.

  • Page 6: Check Printer Discharge Condition

    RICOH Ri 2000 Additional manual 3. Check printer discharge condition If the printer is using Type G1 White ink for white head, print a nozzle check and check the white head discharge condition. However, if the printer is using cleaning cartridge for white head, it is not necessary to perform this check.

  • Page 7: Preparation Of Type G2 White Ink Cartridges

    RICOH Ri 2000 Additional manual 5. Preparation of Type G2 White Ink cartridges Before using new Type G2 White Ink, please agitate at least 200 times. After filling the cartridge with ink, we recommend that you perform a test print to check the white density before printing.

  • Page 8: Operating Conditions: Relative Humidity

    RICOH Ri 2000 Additional manual 2. Agitate the ink cartridge. • Hold the white ink cartridge as shown below. • Hold the white ink cartridge with the ink supply port face up. • Shake the ink cartridge at 45° to the left and right (see figure below).

  • Page 9: Replacement Procedure Of Type G2 White Ink

    RICOH Ri 2000 Additional manual 8. Replacement Procedure of Type G2 White Ink In case of KCMY＋W mode In case of KCMY+W mode, please follow the procedure below to replace the ink with Type G2 White Ink. STEP1. Replace the white ink to be changed with Type G2 White Ink (or Type G2 White Ink (Hi Yield)).
  • Page 10 RICOH Ri 2000 Additional manual Press the Settings tab. Press [INK PATH CONTROL]. Press [CLEANER CHARGING]. 10 / 15...
  • Page 11 RICOH Ri 2000 Additional manual Press [WHITE]. Press [CHARGING]. Confirm by pressing [YES] to charge the system with cleaning solution. NOTE – Please allow up to 28 mins (approx.) for the system to flush the ink out and full the white lines with cleaning solution.

  • Page 12: In Case Of Kcmy Mode

    RICOH Ri 2000 Additional manual In case of KCMY mode In case of KCMY mode, please follow the procedure below to replace the ink with Type G2 White Ink. STEP1．Remove four cleaning cartridges for W1 and W2 channels. STEP2．Insert the Type G2 White Ink (or Type G2 White Ink (Hi Yield)) cartridges.
  • Page 13 RICOH Ri 2000 Additional manual STEP5．Press [INK CHARGING]. STEP6．Press [WHITE]. STEP7．Press [CHARGING]. STEP8．Press [Yes] to fill the white print head with ink. STEP9．Wait until filling operation is complete. When "Ready to Print" is displayed, proceed to the next step. STEP10．Perform “Strong” head cleaning on all heads.

  • Page 14: Precautions When Using Type G2 White Ink

    RICOH Ri 2000 Additional manual 9. Precautions when using Type G2 White Ink 1. When printing a solid white area at the white print mode 600x1200dpi setting when replacing Type G1 White Ink with Type G2 White Ink, “white banding” may occur in the direction orthogonal to the platen transport direction (see figure below).
  • Page 15 RICOH Ri 2000 Additional manual Maintenance Schedule 15 / 15...
