Ricoh Ri2000 How To Update Firmware
Hide thumbs
Also See for Ri2000:
- User manual (257 pages) ,
- Quick installation manual (72 pages) ,
- Additional manual (15 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ricoh Ri2000
Summary of Contents for Ricoh Ri2000

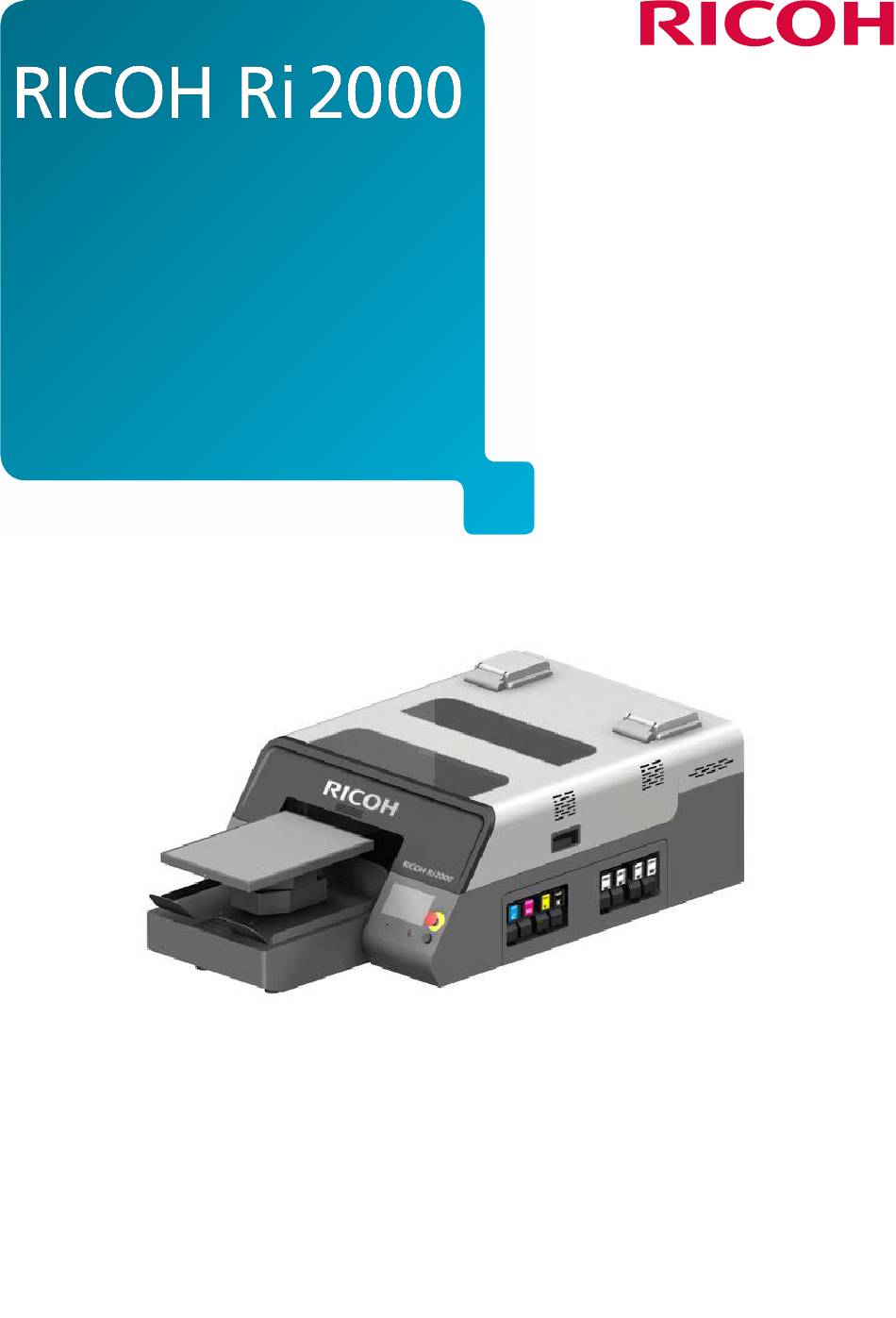

- Page 1 How to update Oct, 2021 Version.1.0.2 p. 1...
- Page 2 Note: If you installed the Data Collector Module, you can be easy to update automatically. About how to install the Data Collector Module, please see the user manual of RICOH Ri2000. Below are the steps to update manually. p. 2...
- Page 3 ●Update by using USB drive Note: Update by using USB drive is a function added in GIB version 1.11. If you are using an older version, please update via Ethernet. Insert USB drive into PC and save updater files. Save the folder "Ri_2000_Updater" to USB drive with the directory shown below. Note: Use a USB drive with the following specification.
- Page 4 Press the Settings tab. Press [OPTION]. Press [USB UPDATE]. p. 4...
- Page 5 Update automatically in order of Panel (GIB), Sub Control (SCB) and Engine (CTL). Follow the steps below to update each firmware. IMPORTANT! Do not turn off RICOH Ri 2000 or remove the USB drive during updating. It may cause the printer failure. ●When update is failed If the following is displayed or if you have started to update but there is nothing displayed about the firmware update, the update may have failed.
- Page 6 ●Firmware update (Panel (GIB)) After sending the updater, press [OK] when the screen below is displayed. Press [Install]. p. 6...
- Page 7 After install completed, press [OPEN] when the screen below is displayed. Note: Don’t press [Done]. Panel (GIB) reboot automatically after press [Open]. Please wait until displayed “Ready” in panel. Afterwards, Sub Control (SCB) and engine (CTL) start to update automatically. Note: If you press [Done], the screen below is displayed.
- Page 8 Don’t put check mark in “Use by default for this action.”. Press [Ri-2000 (RICOH Ri 2000) ]. IMPORTANT! You must not follow the steps different from the above. The printer may become unrecoverable by user. p. 8...
- Page 9 ●Firmware update (Sub Control (SCB) / Engine (CTL)) After sending the updater, wait until the dialog below disappears. After dialog disappears, wait until displayed “Ready” in panel. These completes all updates. p. 9...
- Page 10 ●Update by connecting your PC and RICOH Ri 2000 with Ethernet cable IMPORTANT! Do not disconnect any cable (Communication, Power, and so on) during updating. Make sure that update firmware is the latest one published on the web. Do not downgrade, downgrade is not granted.
- Page 11 Sending firmware done and then start to update. The following steps are as same as steps of “Update by using USB drive”. Note: Sub Control (SCB) and Engine (CTL) do not start update automatically by this method. You should update in order of Panel (GIB), Sub Control (SCB) and Engine (CTL) manually. Therefore, Click [Update] in the above order.
