EVOAQ
Heat Transfer
Air Quality Innovation
Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Heat
System Models
Software Version
Manual Version
Transfer
AQHTR-x
V3.4
V3.3.0 11-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ AQHTR Series
Summary of Contents for EVOAQ AQHTR Series
- Page 1 EVOAQ Heat Transfer Air Quality Innovation Installation Manual Please take the time to read these instructions in full before commencing your installation. Careful planning prior to starting work will guarantee the fastest and best results regarding the installation. Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others.

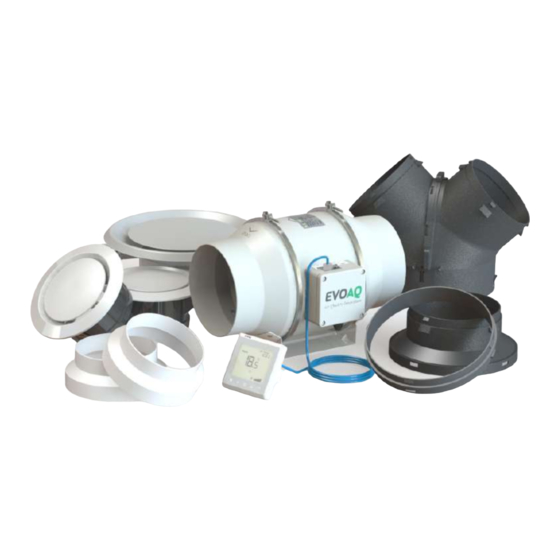

- Page 2 EVOAQ Heat Transfer Air Quality Innovation Installation Manual EVOAQ Standalone Heat Transfer System Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard. Please read this instruction booklet carefully before installing or starting up the product.
- Page 3 EVOAQ EVOAQ Heat Transfer Air Quality Innovation of this instruction manual for further details and example layouts. Some simple rules to apply to ensure the best possible results: • Place the fan in an easily accessible location for maintenance; •...
- Page 4 EVOAQ EVOAQ Heat Transfer Air Quality Innovation manufacturer or by an appointed representative. Failure to comply with the above may endanger the safety of people and cause possible damage to the whole system. SAFETY DURING INSTALLATION Make sure there are no loose elements near the fan, as they could run the risk of being sucked up by it.
- Page 5 EVOAQ EVOAQ Heat Transfer Air Quality Innovation 3-ROOM EXAMPLE LAYOUT www.evoaq.co.nz Page 5...
- Page 6 EVOAQ EVOAQ Heat Transfer Air Quality Innovation STARTING UP THE FAN Fans may have delayed startup, or may operate under the control of the inbuilt controlling electronics included with the fan. Always take extreme care as the fan may start unexpectedly.
- Page 7 The wall controller is connected to the fan via a network cable; as this cable is low-voltage it does not need to be wired by an electrician. 10M NETWORK CABLE Heat Transfer Controller External Fan Wall Controller Standalone EVOAQ Heat Transfer Fan www.evoaq.co.nz Page 7...
- Page 8 EVOAQ EVOAQ Heat Transfer Air Quality Innovation EVOAQ Heat Transfer Fan Specifications AQHTR-2 AQHTR-4 System Codes AQHTR-1 AQHTR-3 AQHTR-5 Fan Spigot Size 125mm 150mm 200mm Voltage (V/Hz) 230 / 50 230 / 50 230 / 50 Power (W) 2 - 17...
