EVOAQ
Kitchen Extraction
Air Quality Innovation
Fan Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Kitchen
Fan Model
Software Version
Manual Version
Extraction

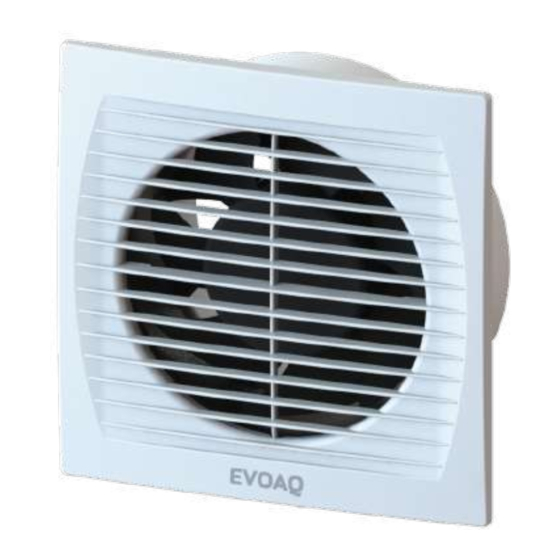

VOC-TW180KF
V4.2
V3.4.0 10-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ VOC-TW180KF
Summary of Contents for EVOAQ VOC-TW180KF
- Page 1 Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others. Kitchen Fan Model Software Version Manual Version Extraction VOC-TW180KF V4.2 V3.4.0 10-2023...
- Page 2 EVOAQ EVOAQ Kitchen Extraction Air Quality Innovation Installation Manual 180mm Through-Wall Fan for Kitchen Extraction Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard.
- Page 3 EVOAQ EVOAQ Kitchen Extraction Air Quality Innovation Check that both the fan case and cowl are level and flush with the wall, and that the fan can spin freely before turning on power to the fan. Once the fan is mounted, place the grille over the fan and screw in place, making sure the grille is positioned correctly and no wires are cinched beneath the grille or face plate.
- Page 4 EVOAQ EVOAQ Kitchen Extraction Air Quality Innovation with it. Damaged product must only be repaired or replaced exclusively by the manufacturer or by an appointed representative. Failure to comply with the above may endanger the safety of people and cause possible damage to the whole system.
- Page 5 1m away from the stove and 1m away from the area directly above the stove. If installing an EVOAQ grease grille with the system the inlet can be placed a minimum of 600mm instead of 1m away from the stove.
- Page 6 EVOAQ EVOAQ Kitchen Extraction Air Quality Innovation THRU-WALL KITCHEN FAN INSTALLATION (IMG 3-6) Cut hole for fan in wall Clip grille into place Secure grille with screw Mount fan with 4 screws KITCHEN FAN WITH GREASE GRILLE INSTALLATION (IMG 7-10)
- Page 7 THRU-WALL KIT ASSEMBLY (IMG 14-15) Ducting covering both spigots Screw to wall Screw to wall Fan location VOC-TW180KF Thru-Wall Fan Specifications For all our manuals, fan Fan Part Number VOC-TW180KF specifications, system details Fan Spigot Size 150mm and more information visit www.evoaq.co.nz/downloads...
- Page 8 Air Quality Innovation Automatic VOC Extraction Fans EVOAQ VOC Extraction fans work by running at a low trickle speed and constantly monitoring the VOC, temperature and moisture levels within the operating environment. In-built controls and sensors in the fan control the fan speed to extract steam and VOCs caused by activities such as cooking from inside and around your house and garage.
