EVOAQ
Bathroom Extraction
Air Quality Innovation
Fan Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Bathroom
Fan Model
Software Version
Manual Version
Extraction

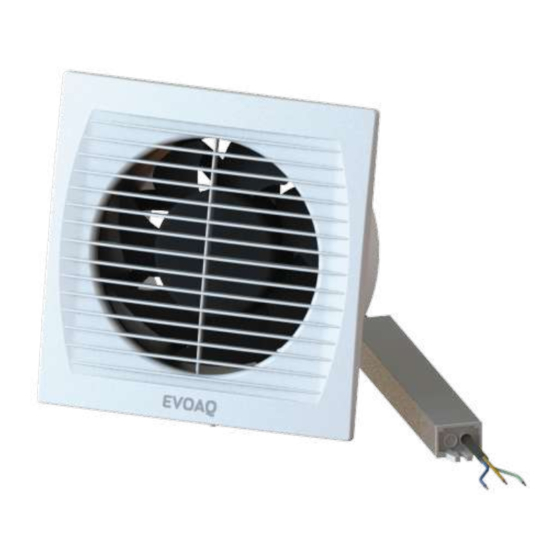

EX-TW180DC
V2.14
V3.3.0 10-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ EX-TW180DC
Summary of Contents for EVOAQ EX-TW180DC
- Page 1 Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others. Bathroom Fan Model Software Version Manual Version Extraction EX-TW180DC V2.14 V3.3.0 10-2023...
-
Page 2: Installation Overview
EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Installation Manual 180mm Low-Voltage Through-Wall/Ceiling Bathroom Extraction Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard. Please read this instruction booklet carefully before installing or starting up the product. -
Page 3: Electrical Connection
EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Once the fan is in installed, place a short length of 150mm aluminium ducting over the fan spigot from outside, then install a cowl or louvre grille on the other side as required. -
Page 4: Maintenance And Repair
EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation that could be sucked up by the fan. When installing an apparatus, make sure that all the fittings are in place and that the structure which supports it is resistant enough to bear its weight at full functioning power. - Page 5 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation FAN WIRING (IMG 1) This fan is powered by 12V DC. A 12V power supply is included for powering the fan. This power supply includes two sets of wires - one is mains input to power the power supply, the other is the 12V output to power the fan.
- Page 6 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation THRU-WALL BATHROOM KIT ASSEMBLY (IMG 7-9) Through-wall Kit Layout Extraction Inlet External Nude Internal Grille Cowl Ducting Ducting covering both spigots Screw to wall Screw to wall Fan location THRU-CEILING KIT INSTALLATION (IMG 10)
- Page 7 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Thru-wall DC Extraction Fan EX-TW180DC To check which software version is installed and when your fan was manufactured, EVOAQ TW Extraction Controller installed check the label on the fan - located Automatic Humidity Control System underneath the face plate (grille) of the fan Version 2.14...
-
Page 8: How It Works
Air Quality Innovation Automatic Bathroom Extraction Fans EVOAQ Bathroom Extraction fans work by running at a low trickle speed and constantly monitoring the moisture levels within the bathroom environment. In-built controls and sensors in the fan control the fan speed to extract any excess moisture and protect your bathroom.
