EVOAQ
Bathroom Extraction
Air Quality Innovation
Fan Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Adjustable Speed
Fan Model
Software Version
Manual Version
Extraction

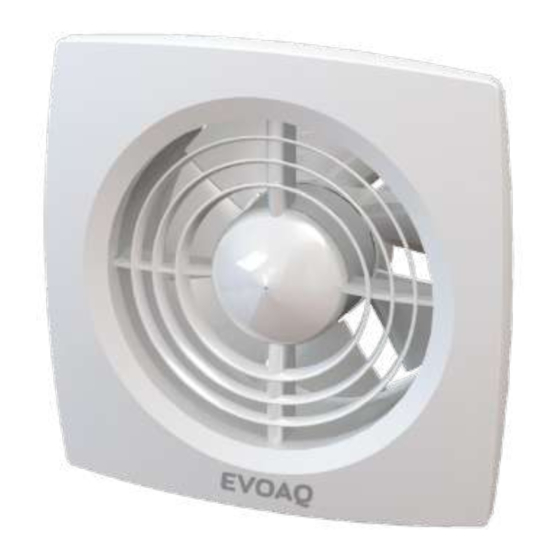

EX-TW150MC
V1.1
V3.1.0 09-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ EX-TW150MC
Summary of Contents for EVOAQ EX-TW150MC
- Page 1 Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others. Adjustable Speed Fan Model Software Version Manual Version Extraction EX-TW150MC V1.1 V3.1.0 09-2023...
- Page 2 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Installation Manual 150mm EC Through-Wall/Ceiling Fan for Manual Extraction (Adjustable Speed) Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard.
- Page 3 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation cutting the ducting. Important information for the safety of installers and user: Installation must only be carried out by qualified persons. Make sure that the installation complies with the applicable building and electrical regulations.
- Page 4 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation If the fan is installed in a duct, the duct must be used for the extraction system only. STARTING UP THE FAN Fans may have delayed startup, or may operate under the control of the inbuilt controlling electronics included with the fan.
- Page 5 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation BATHROOM ZONES (IMG 2) This through-wall fan model is suitable to be placed inside zone 2 and zone 3 only. DO NOT install the fan inside zone 1 (image below). Only low voltage equipment may be installed in zone 1.
- Page 6 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation THRU-CEILING KIT INSTALLATION (IMG 10) Through-ceiling Kit Layout Extraction Flexi Grille or Ducting Cowl CENTRAL BUTTON FUNCTIONALITY *applies to software version 1.1 and later* This fan has 11 selectable speed settings in total. Use the tool included with the fan to press the button, located behind the central nose cone, and select the desired speed.
- Page 7 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation To check which software version is installed Thru-wall Adjustable Speed Fan EX-TW150MC and when your fan was manufactured, EVOAQ TW Manual Extraction Controller installed check the label on the fan - located either...
