EVOAQ
Laundry Extraction
Air Quality Innovation
Fan Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Laundry
Fan Model
Software Version
Manual Version
Extraction
EX-AX150LF
V2.3
V3.3.0 09-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ EX-AX150MC
Summary of Contents for EVOAQ EX-AX150MC
- Page 1 EVOAQ Laundry Extraction Air Quality Innovation Fan Installation Manual Please take the time to read these instructions in full before commencing your installation. Careful planning prior to starting work will guarantee the fastest and best results regarding the installation. Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others.
-
Page 2: Installation Overview

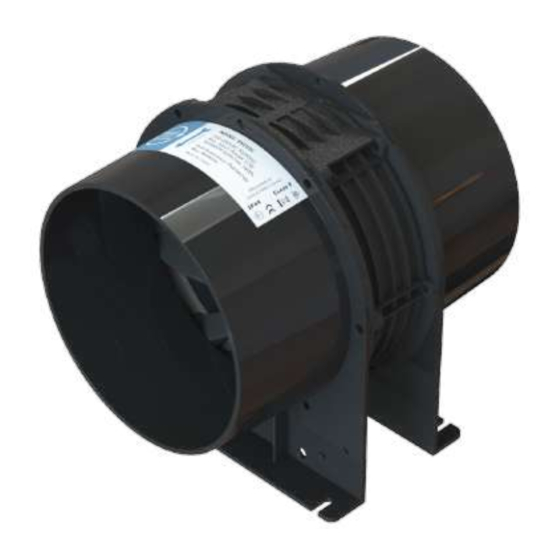

EVOAQ EVOAQ Laundry Extraction Air Quality Innovation Installation Manual 150mm EC Axial Fan for Laundry Extraction Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard. -
Page 3: Electrical Connection
EVOAQ EVOAQ Laundry Extraction Air Quality Innovation Important information for the safety of installers and user: Installation must only be carried out by qualified persons. Make sure that the installation complies with the applicable building and electrical regulations. This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. -
Page 4: Maintenance And Repair
Please note that a small fee may apply for repair services not covered under warranty. FAN MOUNTING Suspend the fan with chain EVOAQ extraction fan - outlet side Page 4 www.evoaq.co.nz... -
Page 5: System Installation
EVOAQ EVOAQ Laundry Extraction Air Quality Innovation SYSTEM INSTALLATION L'DRY www.evoaq.co.nz Page 5... -
Page 6: Fan Wiring
EVOAQ EVOAQ Laundry Extraction Air Quality Innovation FAN WIRING This fan includes a single power lead. Please refer to the images below to ensure the fan is wired correctly to prevent damaging the fan. Power lead - Fan is fitted with plug; do not cut off plug unless necessary:... -
Page 7: Installation Tips
EVOAQ EVOAQ Laundry Extraction Installation Tips Air Quality Innovation Extraction Inlet Place extraction inlet within 1-2 metres from the shower or bath - the inlet should not be placed directly above shower unless absolutely necessary. Remove the black connector from the white grille insert for easier taping during install. - Page 8 Air Quality Innovation Automatic Laundry Extraction Fans EVOAQ Laundry Extraction fans work by running at a low trickle speed and constantly monitoring the air quality within the laundry environment. In-built controls and sensors in the fan control the fan speed to extract any excess moisture and heat and protect your laundry area.
