EVOAQ
Bathroom Extraction
Air Quality Innovation
Fan Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Full Speed
Fan Models
No Internal
Manual Version
Extraction
EX-MFxxxEC
Software Controls
V3.1.0 09-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ EX-MF EC Series
Summary of Contents for EVOAQ EX-MF EC Series
- Page 1 EVOAQ Bathroom Extraction Air Quality Innovation Fan Installation Manual Please take the time to read these instructions in full before commencing your installation. Careful planning prior to starting work will guarantee the fastest and best results regarding the installation. Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others.

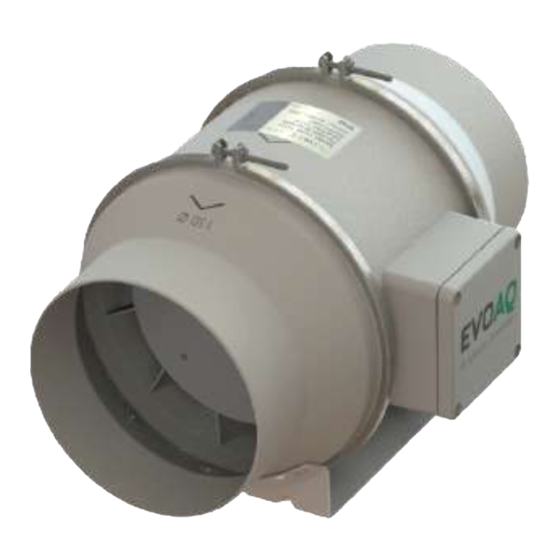

- Page 2 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Installation Manual 125mm/150mm EC Mixed-Flow Fan for Manual Extraction Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard.
- Page 3 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
- Page 4 Please note that a small fee may apply for repair services not covered under warranty. FAN MOUNTING Suspend the fan with chain EVOAQ extraction fan - outlet side Page 4 www.evoaq.co.nz...
- Page 5 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation SYSTEM INSTALLATION SPEED ADJUSTMENT If your fan has been fitted with a speed control dial the speed can be adjusted via this dial. Adjust the fan speed using the speed control dial located on the side of the fan (on the lid).
- Page 6 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation FAN WIRING This fan includes a single power lead. Please refer to the images below to ensure the fan is wired correctly to prevent damaging the fan. Power lead - Fan is fitted with plug; do not cut off plug unless necessary:...
- Page 7 EVOAQ EVOAQ Bathroom Extraction Installation Tips Air Quality Innovation Extraction Inlet Place extraction inlet within 1-2 metres from the shower or bath - the inlet should not be placed directly above the shower unless absolutely necessary. Remove the black connector from the white grille insert for easier taping during install.
