EVOAQ
Bathroom Extraction
Air Quality Innovation
Fan Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Adjustable Speed
Fan Model
Software Version
Manual Version
Extraction

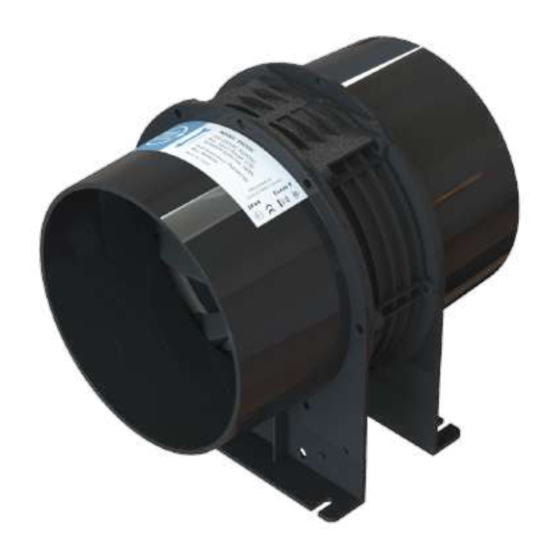

EX-AX150MC
V1.1
V3.3.0 09-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ EX-AX150MC
Summary of Contents for EVOAQ EX-AX150MC
- Page 1 Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others. Adjustable Speed Fan Model Software Version Manual Version Extraction EX-AX150MC V1.1 V3.3.0 09-2023...
-
Page 2: Installation Overview
EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Installation Manual 150mm EC Axial Fan for Manual Extraction (Adjustable Speed) Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard. -
Page 3: Electrical Connection
EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Important information for the safety of installers and user: Installation must only be carried out by qualified persons. Make sure that the installation complies with the applicable building and electrical regulations. This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. -
Page 4: Maintenance And Repair
Please note that a small fee may apply for repair services not covered under warranty. FAN MOUNTING Suspend the fan with chain EVOAQ extraction fan - outlet side Page 4 www.evoaq.co.nz... -
Page 5: System Installation
7 minutes before slowing down to trickle speed again. Refer to page 6 for instructions on how to wire the EVOAQ 230VAC isolation switch add-on for interfacing with mains voltage signals (e.g. light switch). - Page 6 230VAC boost switch or light switch. Wiring of the isolation switch box is recommended to only be carried out by a qualified electrician and in accordance with the relevant electrical standards. EX-AX150MC Axial Fan Specifications For all our manuals, fan Fan Part Number...
-
Page 7: Installation Tips
EVOAQ EVOAQ Bathroom Extraction Installation Tips Air Quality Innovation Extraction Inlet Place extraction inlet within 1-2 metres from the shower or bath - the inlet should not be placed directly above shower unless absolutely necessary. Remove the black connector from the white grille insert for easier taping during install.
