EVOAQ
Garage Extraction
Air Quality Innovation
Fan Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Garage
Fan Model
Software Version
Manual Version
Extraction

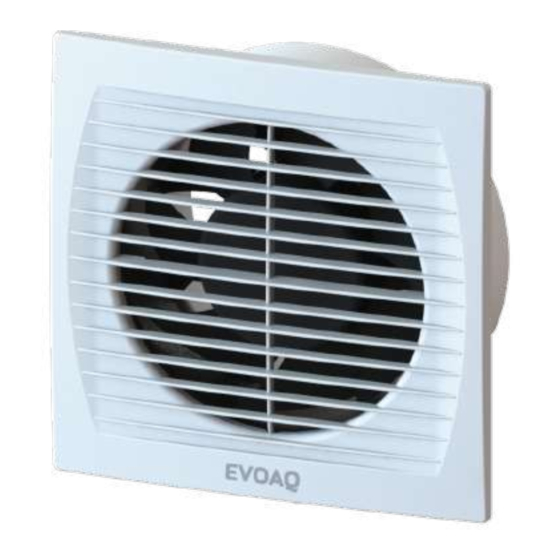

VOC-TW180GF
V4.1
V3.1.0 10-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ VOC-TW180GF
Summary of Contents for EVOAQ VOC-TW180GF
- Page 1 Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others. Garage Fan Model Software Version Manual Version Extraction VOC-TW180GF V4.1 V3.1.0 10-2023...
- Page 2 EVOAQ EVOAQ Garage Extraction Air Quality Innovation Installation Manual 180mm Through-Wall Fan for Garage/Workshop Extraction Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard.
- Page 3 EVOAQ EVOAQ Garage Extraction Air Quality Innovation Note: wiring mains power should only be carried out by a registered electrician. Once the fan is in installed, place a short length of 150mm aluminium ducting over the fan spigot from outside, then install a cowl or louvre grille on the other side as required.
- Page 4 EVOAQ EVOAQ Garage Extraction Air Quality Innovation Make sure there are no loose elements near the fan, as they could run the risk of being sucked up by it. If it is going to be installed in a duct, check that it is clear of any element that could be sucked up by the fan.
- Page 5 EVOAQ EVOAQ Garage Extraction Air Quality Innovation FAN WIRING (IMG 1) This fan includes only one set of wires for powering the fan. The fan is required to be permanently powered. Please refer to the image below to ensure the fan is wired correctly to prevent damaging the fan.
- Page 6 EVOAQ EVOAQ Garage Extraction Air Quality Innovation THRU-WALL GARAGE KIT ASSEMBLY (IMG 11-13) Ducting covering both spigots Screw to wall Screw to wall Fan location THRU-CEILING GARAGE KIT ASSEMBLY (IMG 14) Page 6 www.evoaq.co.nz...
- Page 7 EVOAQ EVOAQ Garage Extraction Air Quality Innovation EXAMPLE THRU-CEILING LAYOUT (IMG 15) VOC-TW180GF Thru-Wall Fan Specifications For all our manuals, fan Fan Part Number VOC-TW180GF specifications, system details Fan Spigot Size 150mm and more information visit www.evoaq.co.nz/downloads Voltage (V/Hz) 230 / 50 Power (W) 2.5 - 17...
- Page 8 Air Quality Innovation Automatic VOC Extraction Fans EVOAQ VOC Extraction fans work by running at a low trickle speed and constantly monitoring the VOC, temperature and moisture levels within the operating environment. In-built controls and sensors in the fan control the fan speed to extract steam and VOCs caused by activities such as cooking from inside and around your house and garage.
