Fan Installation Manual
Please take the time to read these instructions in full before
commencing your installation.
Careful planning prior to starting work will guarantee the
fastest and best results regarding the installation.
Working in the ceiling space can be a hazard, and all
safety precautions should be used to ensure the
safety of yourself and any others.
Bathroom
Fan Model
Software Version
Manual Version
Extraction
EX-TW150SF
V1.7
V3.7.0 10-2023
Advertisement
Table of Contents
Related Manuals for EVOAQ EX-TW150SF
Summary of Contents for EVOAQ EX-TW150SF
- Page 1 Working in the ceiling space can be a hazard, and all safety precautions should be used to ensure the safety of yourself and any others. Bathroom Fan Model Software Version Manual Version Extraction EX-TW150SF V1.7 V3.7.0 10-2023...

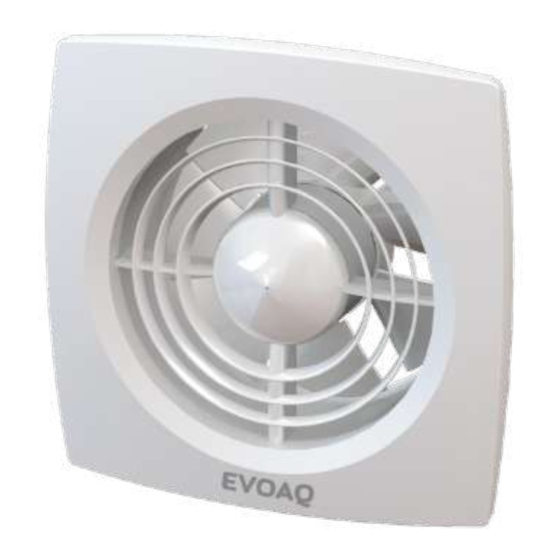

- Page 2 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Installation Manual 150mm EC Through-Wall/Ceiling Fan for Bathroom Extraction Thank you for your purchase of our company’s product. It has been manufactured following current technical safety regulations and is in compliance with AS/NZ60335 standard.
- Page 3 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation Important information for the safety of installers and user: Installation must only be carried out by qualified persons. Make sure that the installation complies with the applicable building and electrical regulations. This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
- Page 4 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation STARTING UP THE FAN Fans may have delayed startup, or may operate under the control of the inbuilt controlling electronics included with the fan. Always take extreme care as the fan may start unexpect- edly.
- Page 5 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation BATHROOM ZONES (IMG 2) This through-wall fan model is suitable to be placed inside zone 2 and zone 3 only. DO NOT install the fan inside zone 1 (image below). Only low voltage equipment may be installed in zone 1.
- Page 6 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation THRU-CEILING KIT INSTALLATION (IMG 10) Through-ceiling Kit Layout Extraction Flexi Grille or Ducting Cowl EXTERNAL WALL SWITCH - OPTIONAL EXTRA This particular fan model does not have a switch included and as such does not have any switch functionality enabled.
- Page 7 EVOAQ EVOAQ Bathroom Extraction Air Quality Innovation To check which software version is installed Thru-wall Extraction Fan 150EC EX-TW150SF and when your fan was manufactured, EVOAQ TW Extraction Controller installed check the label on the fan - located either underneath the face plate or on the back of...
- Page 8 Air Quality Innovation Automatic Bathroom Extraction Fans EVOAQ Bathroom Extraction fans work by running at a low trickle speed and constantly monitoring the moisture levels within the bathroom environment. In-built controls and sensors in the fan control the fan speed to extract any excess moisture and protect your bathroom.
