PASCO PS-3223 Product Manual

Wireless 3-Axis Acceleration/Altimeter
Included Equipment
• Wireless Acceleration/Altimeter sensor
• Thumbscrews, M5 X 25mm
• Hook and loop strap

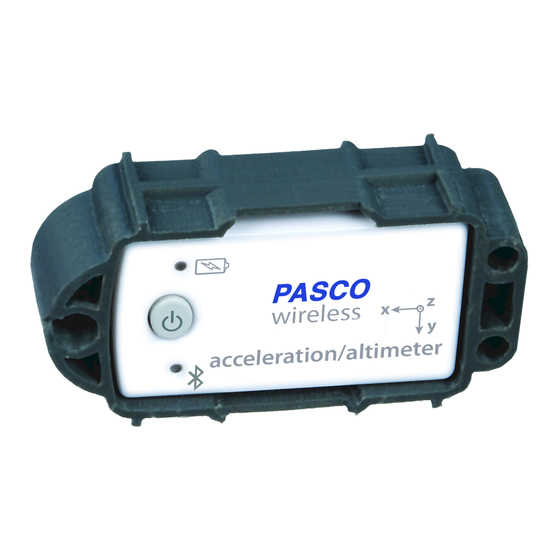

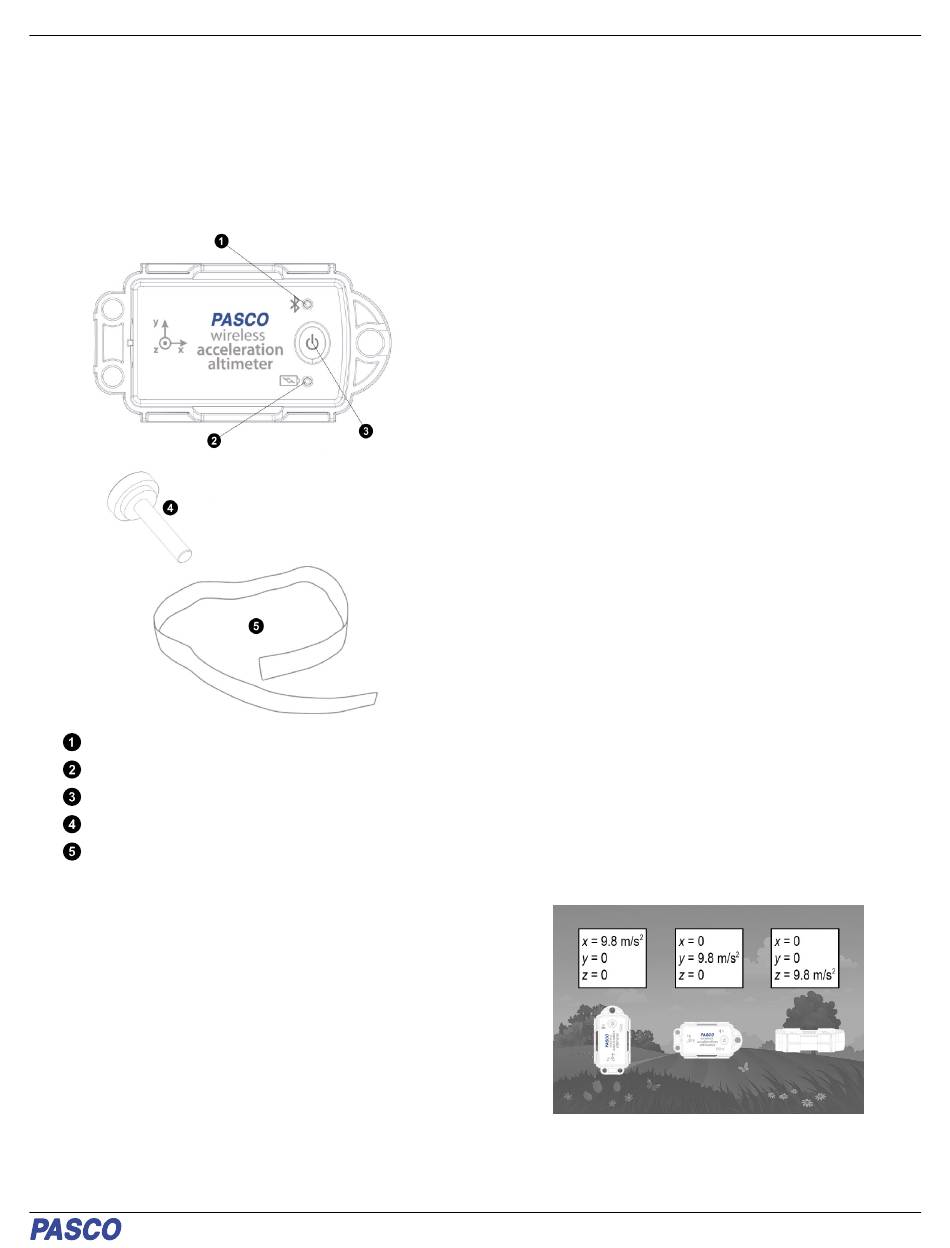

Bluetooth status LED
Power button
Battery status LED
Thumbscrew
Hook and loop strap
Introduction
The PS-3223 Wireless 3-Axis Acceleration/Altimeter
sensor measures acceleration in three axes, angular
velocity in three axes, and altitude. The sensor can be
mounted to any PASCO cart using the included
thumbscrew. The included hook and loop strap can be
used to mount the sensor to a variety of objects. For
additional mounting options, the sensor casing includes a
threaded hole that accepts 6-32 screws, such as the
PASCO Truss Set Screws.
Collecting data
SPARKvue
1. Press and hold the power button until the Bluetooth
status LED starts flashing red.
2. Open SPARKvue and select Sensor Data.
3. Under Connected Devices, select the sensor that
matches your device ID.
4. Select the measurements you wish to display.
5. Under Templates, select Graph.
6. Select Start to begin data collection.
PASCO Capstone
1. Press and hold the power button until the Bluetooth
status LED starts flashing red.
2. Open Capstone and click Hardware Setup.
3. Select the sensor that matches your device ID.
4. In the Displays palette, double-click Graph.
5. On the vertical axis of the graph, click Select
Measurement, then select the measurement you wish
to display.
6. Click Record to begin data collection.
Data collection tips
Acceleration
Acceleration is measured using an electronic three-axis
accelerometer. Due to the way an accelerometer
functions, the acceleration measurement will be offset by
2
9.8 m/s in the direction normal (perpendicular) to the
surface of Earth. For example, if the x-axis of the sensor
is normal to Earth's surface, this axis will measure
2
9.8 m/s when at rest. If the sensor is rotated so that the
y-axis is normal to Earth's surface, the y-axis will now
2
measure 9.8 m/s (Figure 1).
Figure 1. Acceleration will be offset by 9.8 m/s
normal to the Earth's surface.
