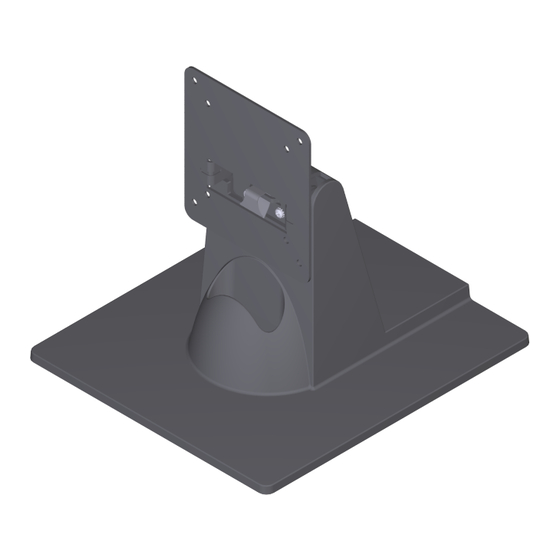

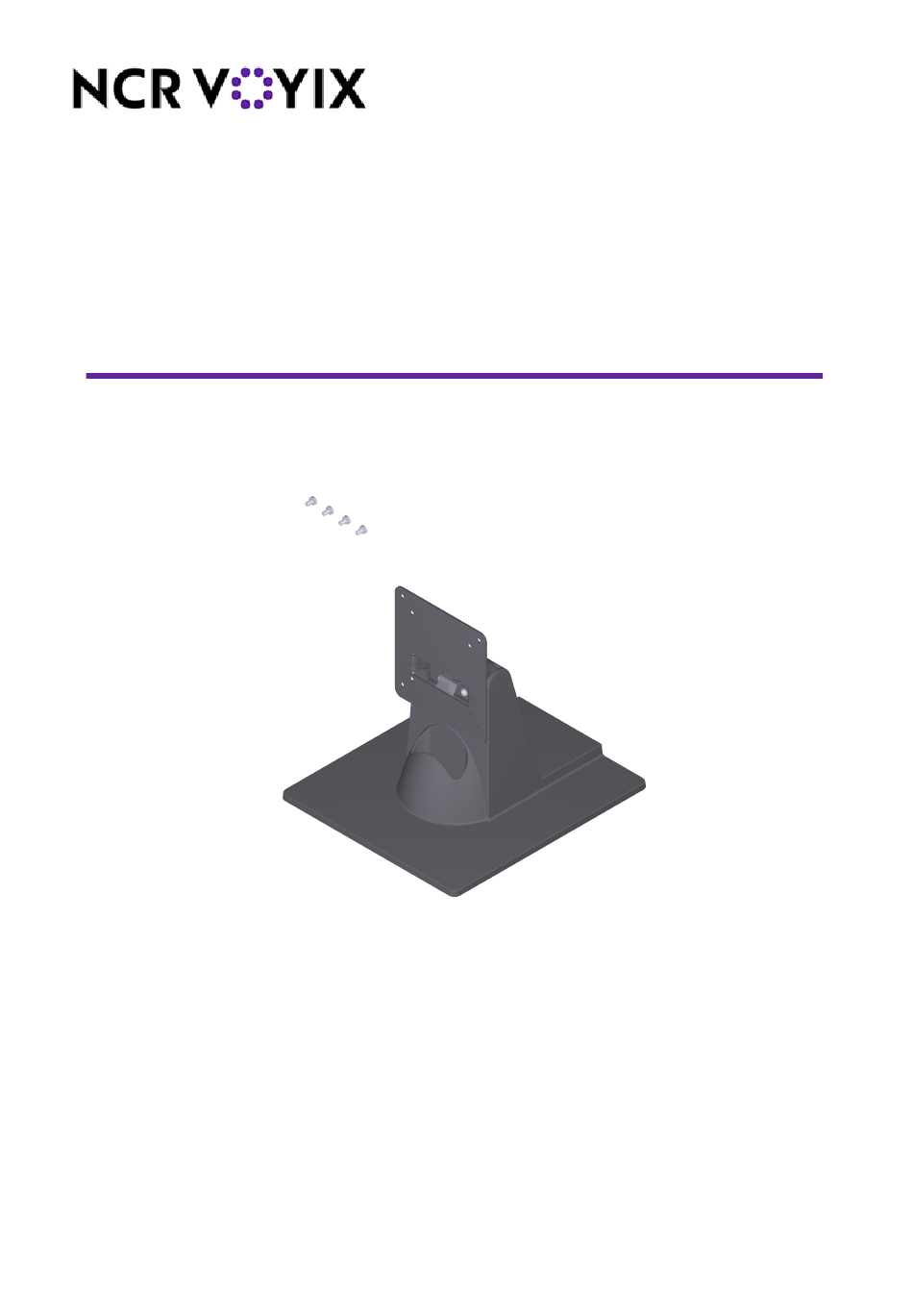

- Page 1 Table Top Stand and Hinge Assembly, CX, Black Kit Instructions 7772-K931 Issue A Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Table of Contents Copyright Table Top Stand and Hinge Assembly, CX, Black Kit Contents Installation Procedure Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
-
Page 4: Revision Record
Revision Record Issue Date Remarks Oct 2023 First Issue Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited. -
Page 5: Kit Contents
Table Top Stand and Hinge Assembly, CX, Black This kit provides a Table Top Stand for the NCR CX7 All-in-One POS (7772). Kit Contents Installation Procedure Warning Disconnect the AC power cord from the AC outlet and wait 30 seconds before servicing the terminal. - Page 6 Remove the two (2) screws that secure the Cable Cover to the Back Cover. b. Rotate and unhook the Cable Cover from the Back Cover. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 7 Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable. 4. Loosen the two (2) captive screws that secure the Back Cover to the Display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 8 5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 9 6. Remove the four (4) screws securing the Display Back Cover to the hinge of the Base. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 10 Insert the Back Cover Tabs into the openings in the back of the Display, then rotate the Back Cover onto the Display. b. Secure the Back Cover with two (2) captive screws. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 11 8. Install the Stand on the back of the Display (4 screws). 9. Connect the Cables on the back of the Display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 12 10. Route the Cables through the Stand as shown. 11. Secure the Cables on the bridge lance using the Cable Management Strap. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
